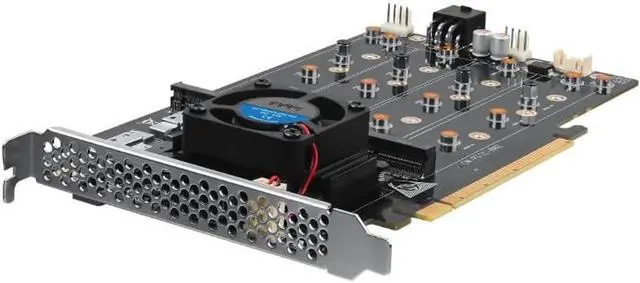

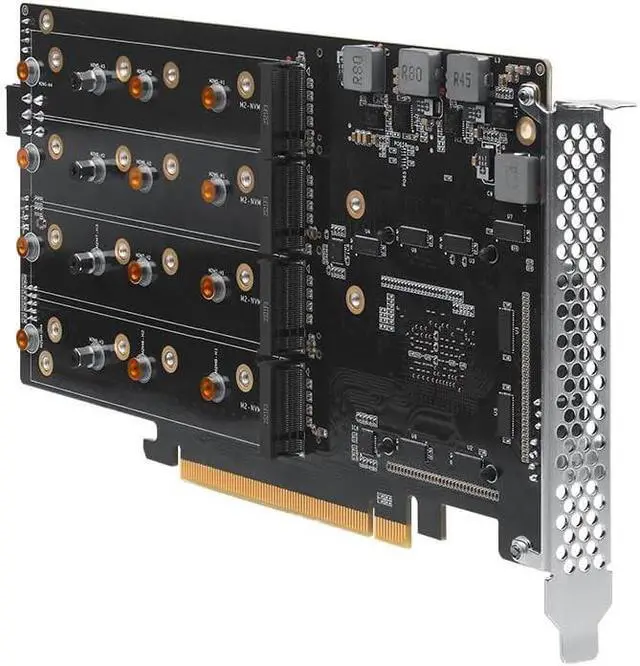

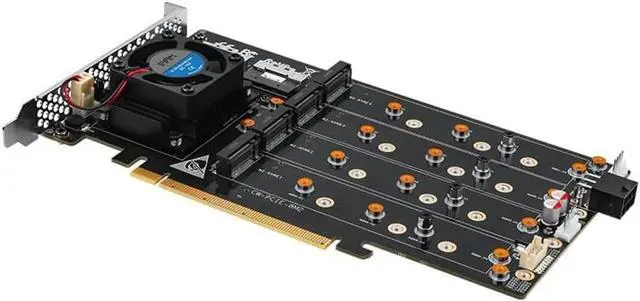

8-Drive NVMe SSD to PCIe 4.0 X 16 Adapter Card with Active Cooling (88048 8-Drive NVMe Expansion Card, Plain) Visit the oaknode Store (Plain)
- 8-slot M.2 NVMe to PCIe 4.0 x16 Adapter (OS boot not supported) - Expands 8 M.2 NVMe Key M ports via PCIe 4.0 x16 interface to provide up to 256Gb/s bandwidth. Supports M.2 NVMe SSDs in 2230/2260/2280/22110 sizes.
- Powered by the PEX88048 controller with PCIe switching technology works with all motherboards, including Mac Pro, no need for motherboard/CPU PCIe bifurcation support.
- The CW-PCIE-8M2 Expansion Card provides high-capacity SSD storage and a high-performance switching engine with eight independent M.2 slots and Broadcom's 4th generation switching chip providing PCle4.0x4 signaling on each M.2 port while supporting up to 64TB of storage.
- The use of expansion cards for the PCI-Ex16 slot interface on the motherboard enables each M.2VNMe SSD to interface directly with the CPU without the need for BIOS splitting of signals, ensuring maximum transfer performance and near-instant response times.
- Two SFF-8654 (8i) port inputs, each port supports PCIE4.0X8 signal input, two
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

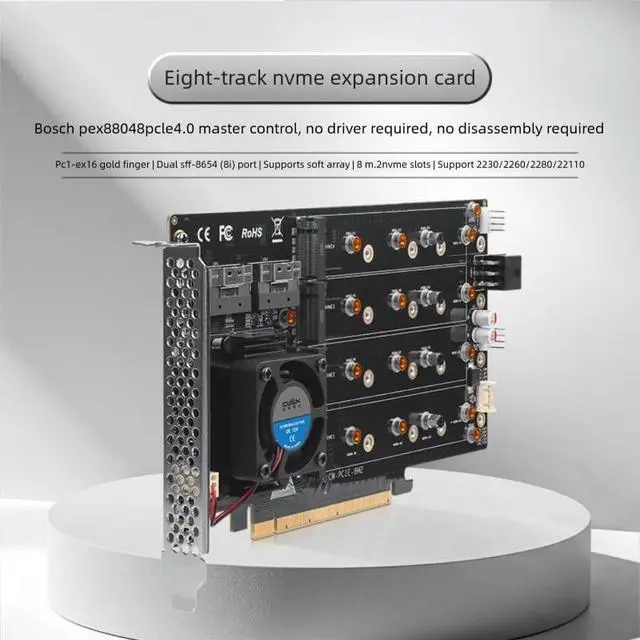

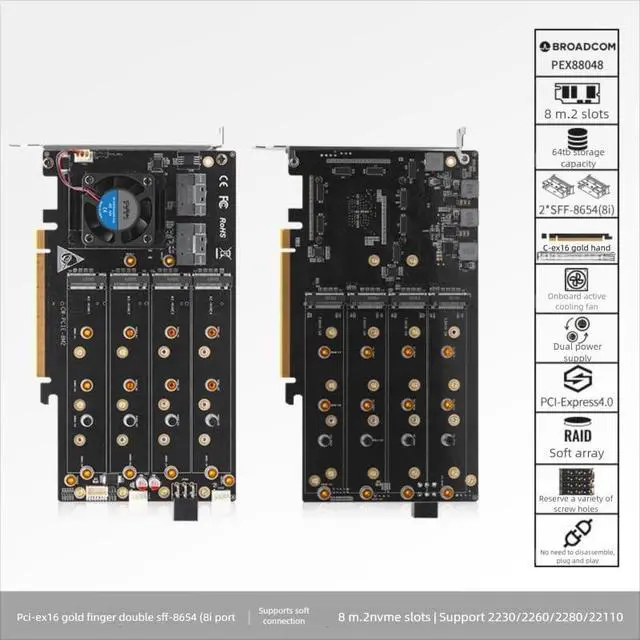

Broadcom's advanced Gen4 switching chip (PEX88048) Up to 8 M. 2 NVMe PCIe 4.0 x4 slots Up to 64TB of storage capacity Supports soft RAID (Soft Array) for NAS systems Dual enhanced power supply modes for PCI-E gold finger and 6PIN simultaneous power supply 1 PCI-E x16 gold finger with gold ferrying process 2 SFF- 8654 (8i) PCIe 4.0 x8 signal ports PCI-Express 4.0 backward compatible with PCIe 3.0 / 2.0 / 1.0 Onboard active 4010 ball heat sink or Pro version of the four-fan NVMe full-coverage enhancement of the heat dissipation Reserve a variety of screws and locking holes Support for 2230/2260/2280/22110 hard disk No need for driver software Plug-and-play No need for Motherboard PCI-E Translated with DeepL.
com (free version)
com (free version)
