SEDNA - PCIe Dual mSATA SSD Raid Adapter with 2 SATA III Port and HyoperDuo Hard Disk Acceleration Function (SSD not Included)
- Chipset: Marvell 88SE9230
- PCI-Express x4 Interface(actual x2 speed) is Compatible with PCI-Express x4, x8, and x16 slots
- Supports Native Command Queue (NCQ)
- Support RAID function: RAID0, RAID1,RAID1+0
- HyperDuo Mode Supports Safe Mode (Mirrored Protection), and Capacity Mode (Cost-Optimized)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:

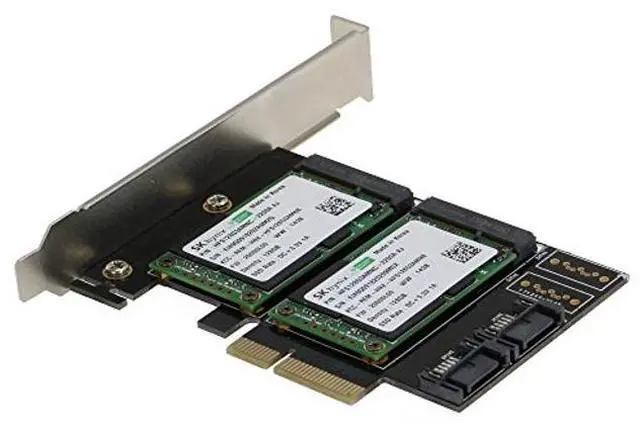

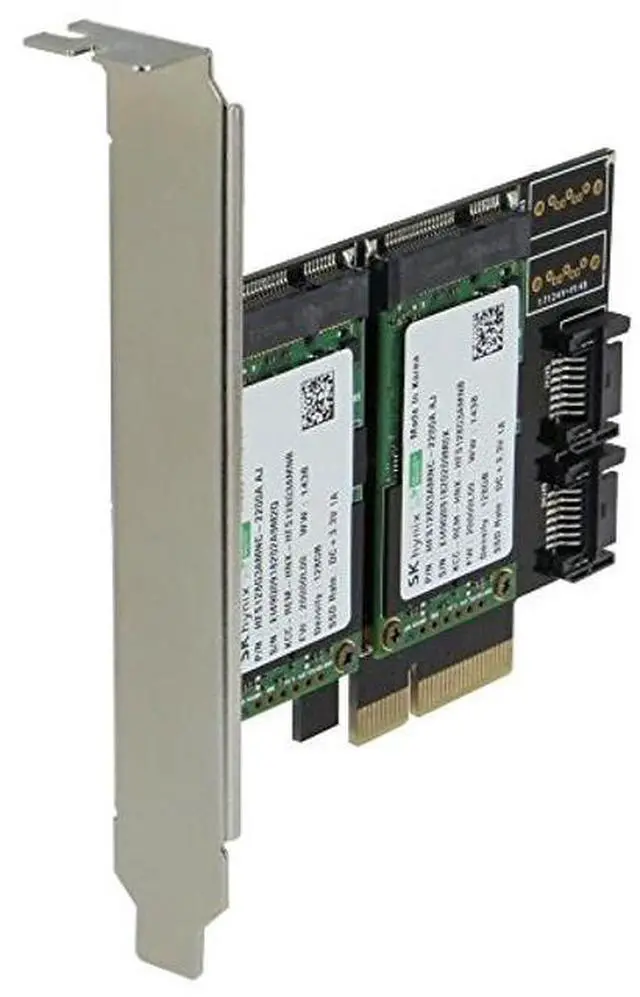

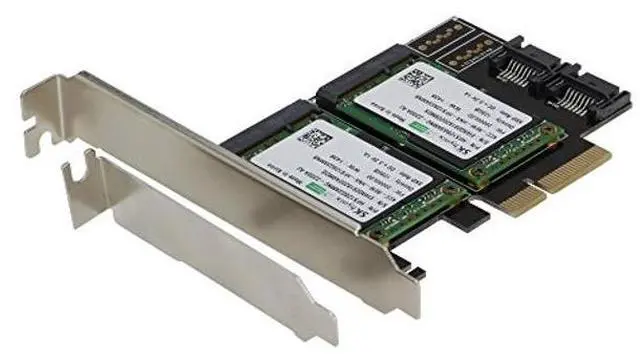

( All SSD in photos are for demo. only and is not included in the package )
Chipset: Marvell 88SE9230 support HyoperDuo
Direct mounting of dual mSATA SSd on board
2 extra SATA III port for other devices
RAID function supported
HyoperDuo technology, with low capacity SSD can be used as accelerating cache drive for high capacity standard HDD, making a low cost combination of super fast big capacity storage system
PCIE 2 Port SATA III (6G) Port
2 Port support direct installation of 2 mSATA SSD
2 extra internal SATA III port for intallation of extra Hdd / SSD
HyoperDuo technology for Hard disk acceleration
PCI Express 2X Specification Rev. 2.0
2-Lane (x2) PCI-Express with transfer rate 5Gb/s Full Duplex channel
Compliant with Serial ATA 3.0 Specification, Data transfer rate up to 6.0G b/s
Backward compatible with SATA 1.0 /SATA 2.0 specification
Support NCQ
RAID Function:
RAID 0-Striping (Stripe Size: 32K, 64K)
RAID 1-Disk Mirroring
RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)
HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)
Note: Not Supported RAID on PM
Supported OS: Windows 10/8/7/Vista / XP/Server 2008/2003/ Linux 2.6X and up
System Requirement:
Available PCIE 2.0 2X, 4X, 8X or 16X slot on PC
Supported OS
Package Content:
1 x PCIE SATA III M2 SSD Raid adapter
1 x Software / Driver CD
1 x User Manual
1 x Low Profile Bracket
( All SSD in photos are for demo. only and is not included in the package )
Chipset: Marvell 88SE9230 support HyoperDuo
Direct mounting of dual mSATA SSd on board
2 extra SATA III port for other devices
RAID function supported
HyoperDuo technology, with low capacity SSD can be used as accelerating cache drive for high capacity standard HDD, making a low cost combination of super fast big capacity storage system
Specifications
:PCIE 2 Port SATA III (6G) Port
2 Port support direct installation of 2 mSATA SSD
2 extra internal SATA III port for intallation of extra Hdd / SSD
HyoperDuo technology for Hard disk acceleration
PCI Express 2X Specification Rev. 2.0
2-Lane (x2) PCI-Express with transfer rate 5Gb/s Full Duplex channel
Compliant with Serial ATA 3.0 Specification, Data transfer rate up to 6.0G b/s
Backward compatible with SATA 1.0 /SATA 2.0 specification
Support NCQ
RAID Function:
RAID 0-Striping (Stripe Size: 32K, 64K)
RAID 1-Disk Mirroring
RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)
HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)
Note: Not Supported RAID on PM
Supported OS: Windows 10/8/7/Vista / XP/Server 2008/2003/ Linux 2.6X and up
System Requirement:
Available PCIE 2.0 2X, 4X, 8X or 16X slot on PC
Supported OS
Package Content:
1 x PCIE SATA III M2 SSD Raid adapter
1 x Software / Driver CD
1 x User Manual
1 x Low Profile Bracket
