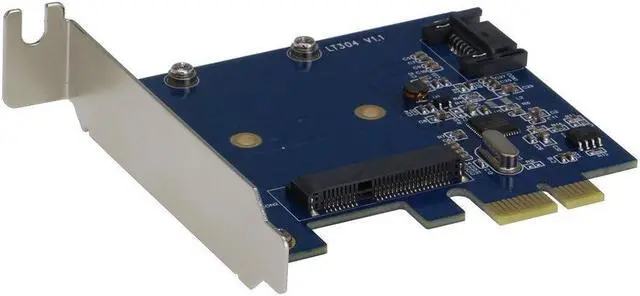

SEDNA - PCI Express mSATA III (6G) SSD Adapter with 1 SATA III Port with Low Profile Bracket (SSD not Included)

Features:

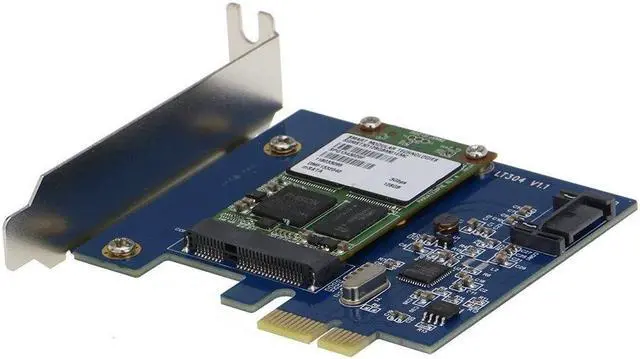

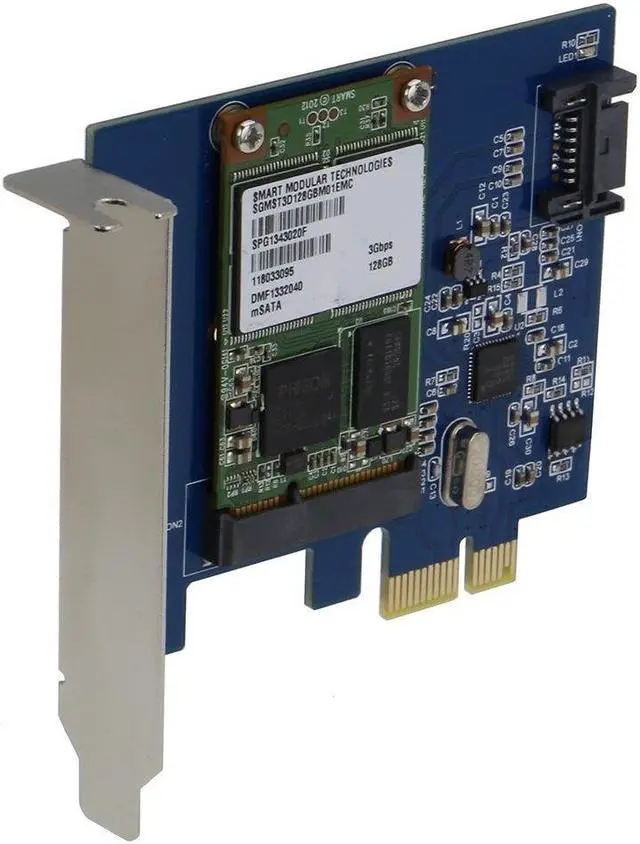

SSD in Photo are for demo only and is not included
With Low profile bracket to fit HTPC or Slim PC case
Direct mounting of 51×30mm mSATA III SSd on board
One extra SATA III port for other devices
Operating System Software can be installed on mounted SSD and booting of the OS from the installed PCIE disk is supported ( Your mother board BIOS need to support this feature )
Using standard low cost low capacity high perfermance mSATA SSD instead of the much more expansive big capacity SSD

Specifications

:

PCIE 1 Port mSATA III (6G) Port + 1 Port SATA III (6G)
1 Port support direct installation of standard mSATA III SSD
1 extra internal SATA III port for intallation of extra Hdd / SSD
PCI Express Specification Rev. 2.0
1-Lane (x1) PCI-Express with transfer rate 5Gb/s Full Duplex channel
Compliant with Serial ATA 3.0 Specification, Data transfer rate up to 6.0G b/s
Backward compatible with SATA 1.0 /SATA 2.0 specification
Maximum capacity supported: 2T
Support NCQ
Driver supported Windows98SE /ME/ 2000/XP/Server 2003/Vista/WIN7/Win8, Mac OS

System Requirement:

Available PCIE 2.0 1X, 2X, 4X, 8X or 16X slot on PC
Supported OS

Package Content:

1 x PCIE mSATA III SSD adapter
1 x Driver CD
4 x mSATA SSD mounting screw
1 x Low Profile bracket
