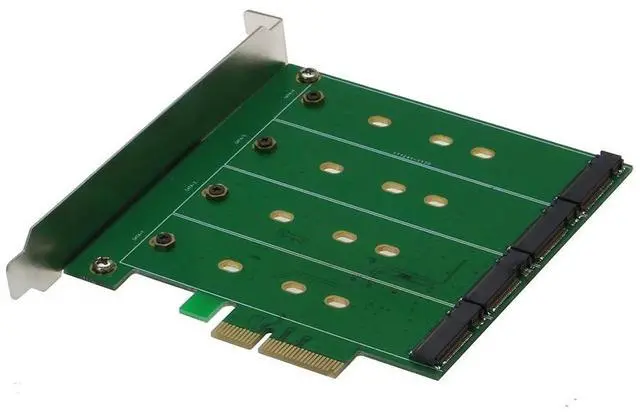

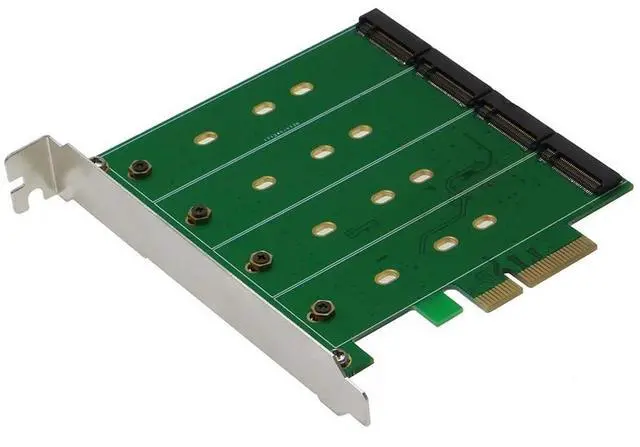

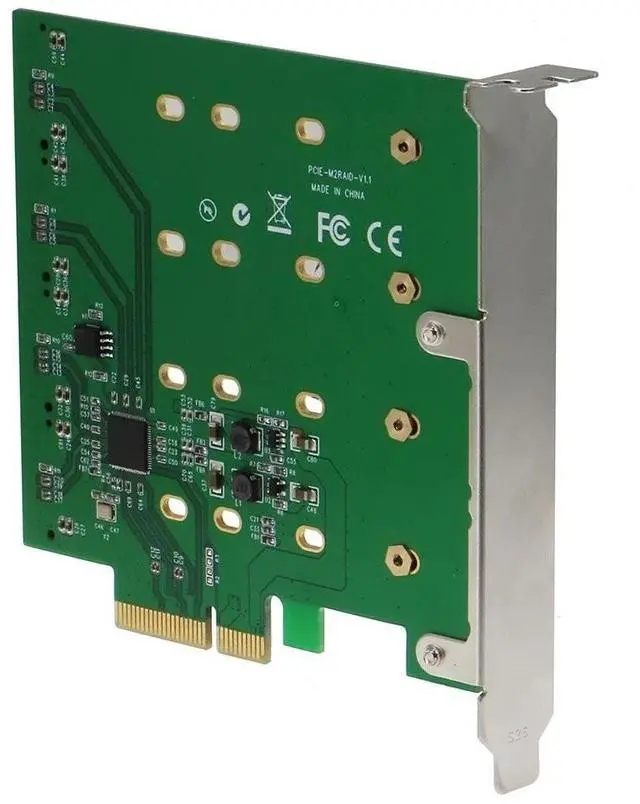

Sedna SE-PCIE-m2SSDx4-R-MA Interface Cards/Adapter M.2 Internal - Accessory (PCIe, M.2, PCIe 2.0, Black, Green, Box, 6 GB/s)

Chipset: Marvell 88SE9230 support HyoperDuo
Direct mounting of 4 x M.2 SSd / Hdd on board ( not included )
Supports RAID 0, RAID 1, RAID 10,HyoperDuo Safe
PCI Express 2X Specification Rev. 2.0

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

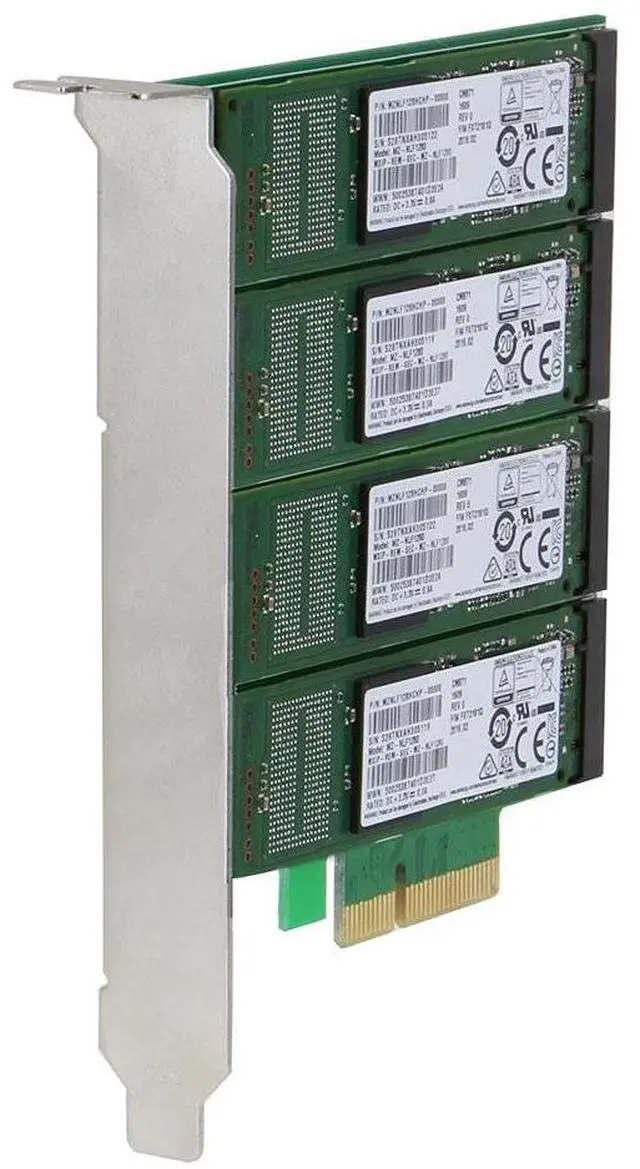

Features: ( All SSD in photos are for demo. only and not included in the package )Chipset: Marvell 88SE9230 support HyoperDuoDirect mounting of 4 M2 SSd on board ( not included ) RAID function supportedHyoperDuo technology, with low capacity SSD can be used as accelerating cache drive for high capacity standard HDD, making a low cost combination of super fast big capacity storage systemSpecifications: Supports 4 SATA-based B key NGFF SSD ( PCIe version SSD not supported ) Supports 2230, 2242, 2260 & 2280 size NGFF SSD
HyoperDuo technology for Hard disk accelerationPCI Express 2X Specification Rev. 2.02 -Lane (x2) PCI-Express with transfer rate 5Gb/s Full Duplex channelCompliant with Serial ATA 3.0 Specification, Data transfer rate up to 6.0G b/sBackward compatible with SATA 1.0 /SATA 2.0 specificationSupport
NCQRAID Function: RAID 0-Striping (Stripe
Size: 32K, 64K)RAID 1-Disk MirroringRAID 10-Stripe of Mirrors (Stripe
Size: 32K, 64K)HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)
Note: Not Supported RAID on
PMSupported OS: Windows 10/8/7/Vista / XP/Server 2008/2003/ Linux 2.6X and upSystem
Requirement: Available PCIE 2.0 2X, 4X, 8X or 16X slot on
PCSupported OSPackage Content: PCIE SATA III M2 SSD Raid adapterSoftware / Driver CDUser Manual
