LC to LC Multimode Fiber Patch Cable, 400ft(122m) OM3 Fiber LC to LC, Options 7inch~500ft, LC to LC OM3 Fiber Cable 10G Duplex, RamboCables
Limited time offer, ends 01/23 By Fashion Technology
- [(OM3 LC-LC Multimode Duplex Fiber Patch Cable)] RamboCables 400ft/122m OM3 LC to LC Multimode Duplex Fiber Patch Cord is constructed wtih 50/125mm high rated fiber cladding, 850/1300nm Wavelength, 2.0mm fiber cable diameter and environmentally friendly LSZH fiber jacket. This international industry standard OM3 lc/ lc duplex multimode fiber optic cable ensures a more stable and efficient transmission for your network.

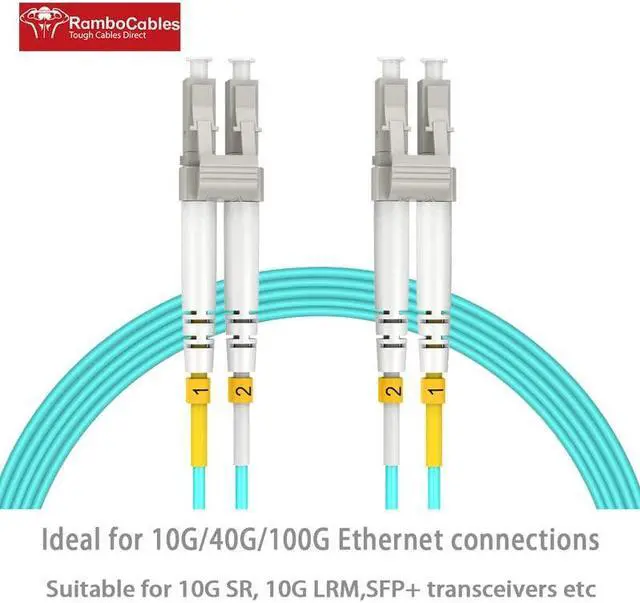

- [(Wide Usage)] OM3 MMF is the preferred fiber specification for 10G Ethernet connections. OM3 LC to LC Multimode Duplex Fiber patch cords is specially designed for connecting 10G SR, 40G BIDI SR, QSFP+, SFP+ transceivers etc, ideal for 10G/40G/100G Ethernet connections and RamboCables OM3 LC-LC optic fiber patch cables help saving more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places patch cables are needed.
- [(Transmission Distance)] OM3 Multimode LC to LC Fiber Patch Cabl
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Production

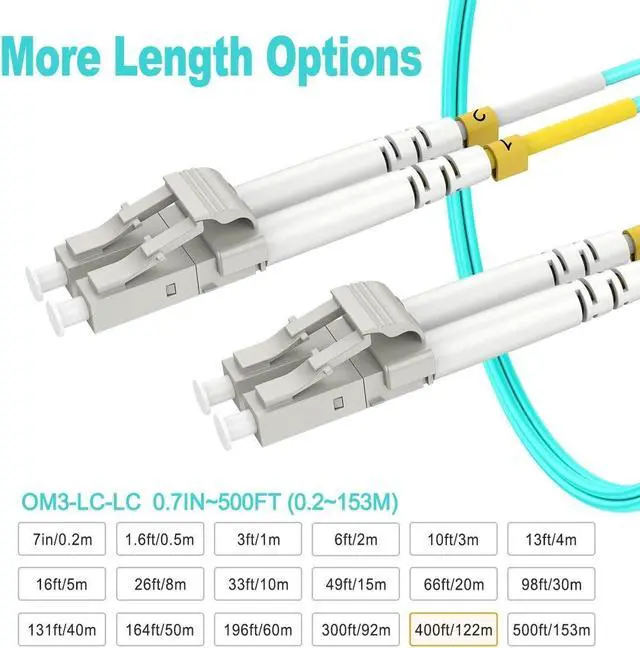

LC to LC 122m/400ft OM3 Fiber Patch Cable Multimode Duplex - 50/125mm Fiber Optic Patch Cords - 10G MMF LSZH 850/1300nm, Length
Options: 0.2 m/7inch to 122m/400ft - RamboCables
Cable Length (included connector): 122M/400FTManufacturer: RamboCables
Product
Fiber Type: OM3(Laser-optimized) Multimode
Cable Color: Aqua
Wavelengths: 850nm and 1300nm
Connector Type: Duplex LC to LC
Polarity: UPC to UPC
Ferrule Material: Ceramic
Cable Jacket: LSZH

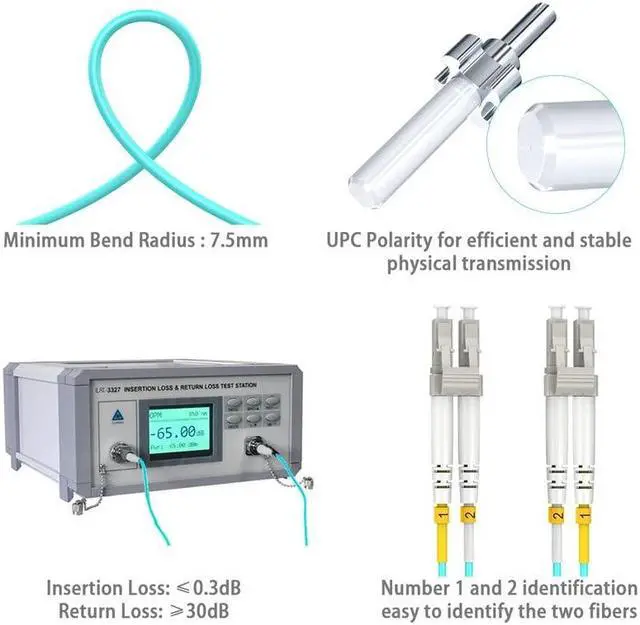

Minimum Bend Radius: 7.5 mm
Cable Diameter: 2.0 mm
Operating Temperature: -20~70degC

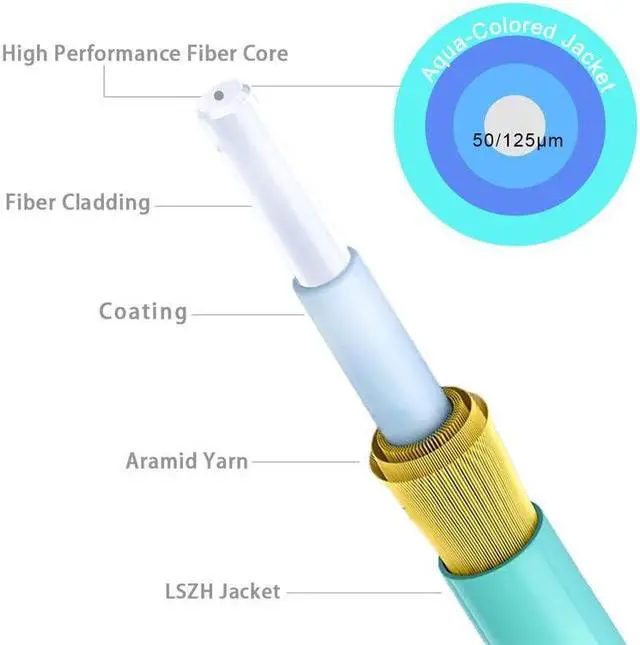

Fiber Core: High Rated 50/125um Fiber and Cladding
Length in Meters: 92M
Length in Feets: 300FT
Insertion Loss: <=0.3dB
Return Loss: >=20dB
Transmission Distance
Wavelength: 850nm and 1300nm
1G Ethernet Max Distance: 550 Meters at 850nm
10G Ethernet Max Distance: 300Meters at 850nm
40G Ethernet Max Distance: 300Meters at 850nm
100G Ethernet Max Distance: 200Meters at 850nm
Bandwidth: 2000 MHz*km at 850nm
Attenuation at 850nm: 3.0 dB/km
Attenuation at 1300nm: 1.0 dB/km
Applications
Computer Networking - Transfers data at a higher rate of speed.
Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths.
Military and Defense - Transmits data signals more clearly.
Quality Assurance & Service
We provide 5 years warranty, free replacement and unconditional 90-day full refund guarantee.
Contact us for technical support at any time.
Details
LC to LC 122m/400ft OM3 Fiber Patch Cable Multimode Duplex - 50/125mm Fiber Optic Patch Cords - 10G MMF LSZH 850/1300nm, Length
Options: 0.2 m/7inch to 122m/400ft - RamboCables
Cable Length (included connector): 122M/400FTManufacturer: RamboCables
Product
Specifications
Fiber Type: OM3(Laser-optimized) Multimode
Cable Color: Aqua
Wavelengths: 850nm and 1300nm
Connector Type: Duplex LC to LC
Polarity: UPC to UPC
Ferrule Material: Ceramic
Cable Jacket: LSZH
Minimum Bend Radius: 7.5 mm
Cable Diameter: 2.0 mm
Operating Temperature: -20~70degC
Fiber Core: High Rated 50/125um Fiber and Cladding
Length in Meters: 92M
Length in Feets: 300FT
Insertion Loss: <=0.3dB
Return Loss: >=20dB
Transmission Distance
Wavelength: 850nm and 1300nm
1G Ethernet Max Distance: 550 Meters at 850nm
10G Ethernet Max Distance: 300Meters at 850nm
40G Ethernet Max Distance: 300Meters at 850nm
100G Ethernet Max Distance: 200Meters at 850nm
Bandwidth: 2000 MHz*km at 850nm
Attenuation at 850nm: 3.0 dB/km
Attenuation at 1300nm: 1.0 dB/km
Applications
Computer Networking - Transfers data at a higher rate of speed.
Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths.
Military and Defense - Transmits data signals more clearly.
Quality Assurance & Service
We provide 5 years warranty, free replacement and unconditional 90-day full refund guarantee.
Contact us for technical support at any time.
