Zhpuostd Mini 10G SFP+ Media Converter, Unmanaged 10G/5G/2.5G/1G/100M Copper to 10G Base-X SFP+ Media Converter Fiber Transceiver, DC 12~48V, (-40degF to 167degF)
- 110G Downward Compatibility Base-T RJ45:Support auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface.Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode.
- Double Standard Compliance:IEEE 802.3u/802.3ab/802.3bz/802.3ae& IEEE 802.3az Energy Efficient Ethernet (EEE) standard compliant.
- Simple and Clear:Support plug and play,Extensive LED indicators for network diagnostics.
- Good Shell:Measuring only 3.74*3*1.18 inches, support Din-Rail mounting, Environmentally hardened -40degC to 75degC (-40degF to 167degF) operating temperature.
- Multi-scenario Availability:Suitable for desks, corners, equipment cases, etc.
+
+
Overview
Specs
Reviews
Overview:
Zhpuostd's smallest industrial-grade 10G Ethernet media converter has 100Mbps, 1Gbps, 2.5G bps, 5Gbps and 10GBASE-TRJ45 copper interfaces and a 10G BASE-X SFP+ fiber interface. Its IP40 housing provides non-blocking line-speed performance and great flexibility in harsh industrial environments. It is your best choice.
Features:
Converts 100/1000/ 2.5G /10GBase-TX to 10GBase-X SFP
Supports IEEE 802.3 af/at/bt Power over Ethernet (Optional)
Supports Full/Half duplex
Supports Auto-MDI/MDIX

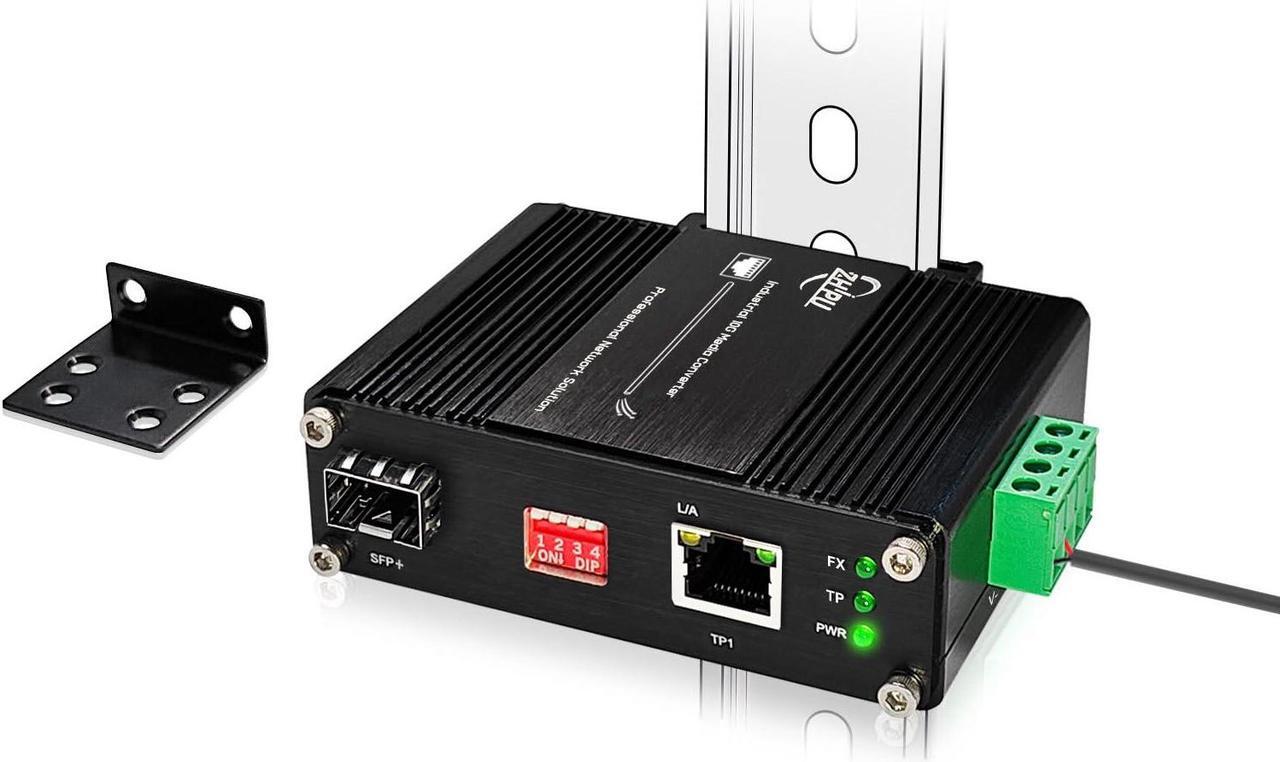

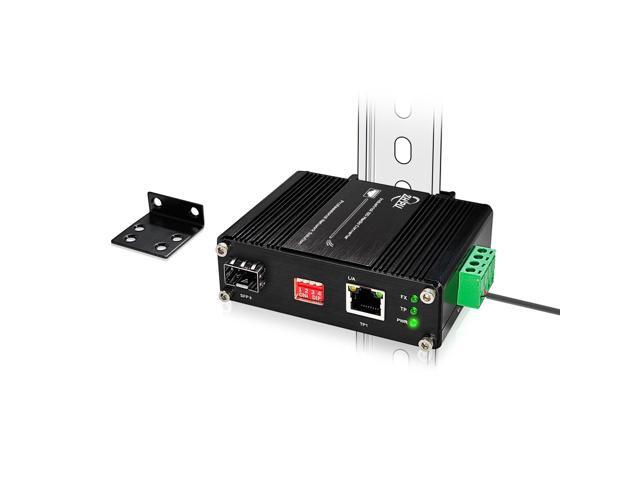

Support DIN-Rail and Wall-mount installation
Extensive LED indicators for network diagnostics

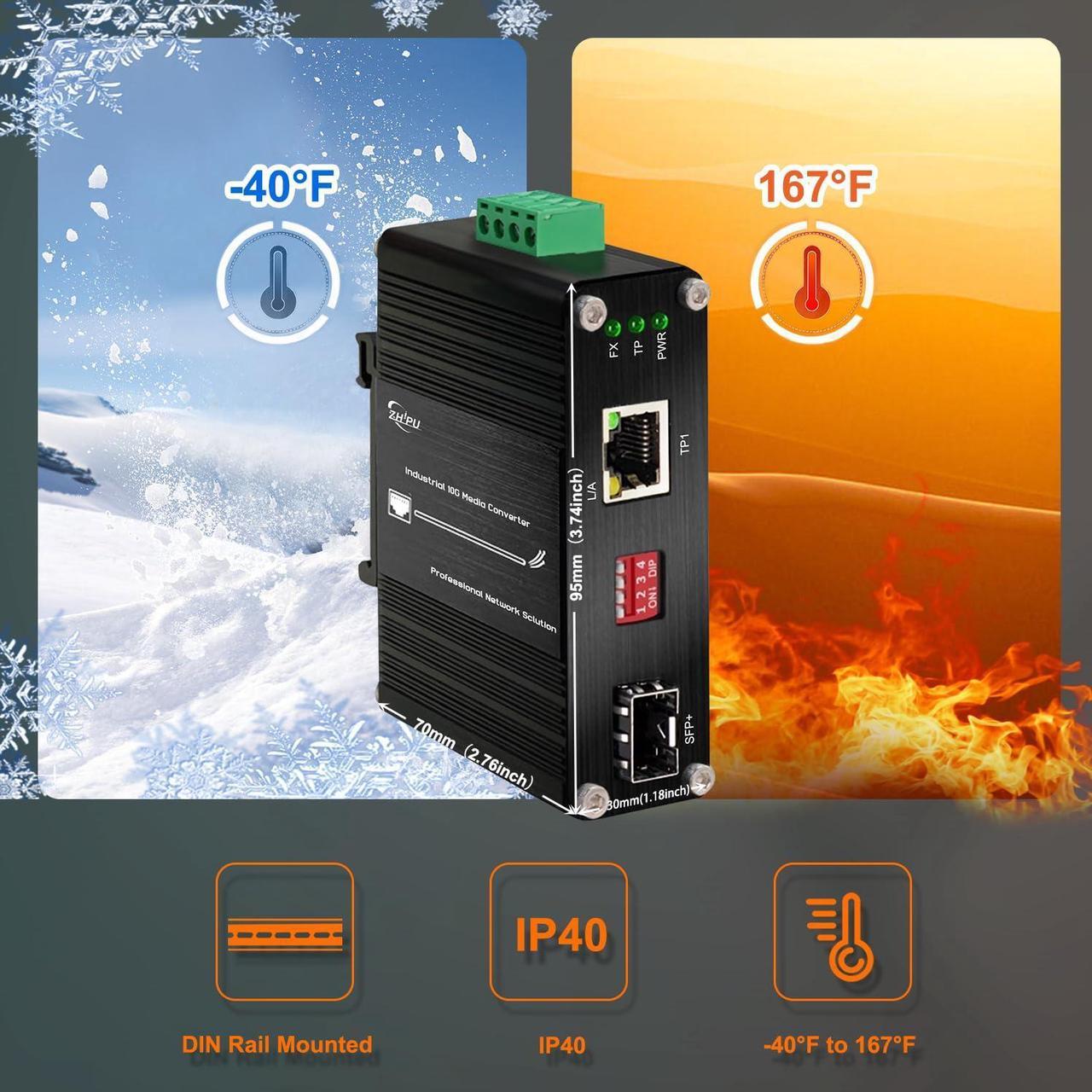

Environmentally hardened -40 to 75 (-40 to 167) operating temperature.
IP40 aluminum enclosure

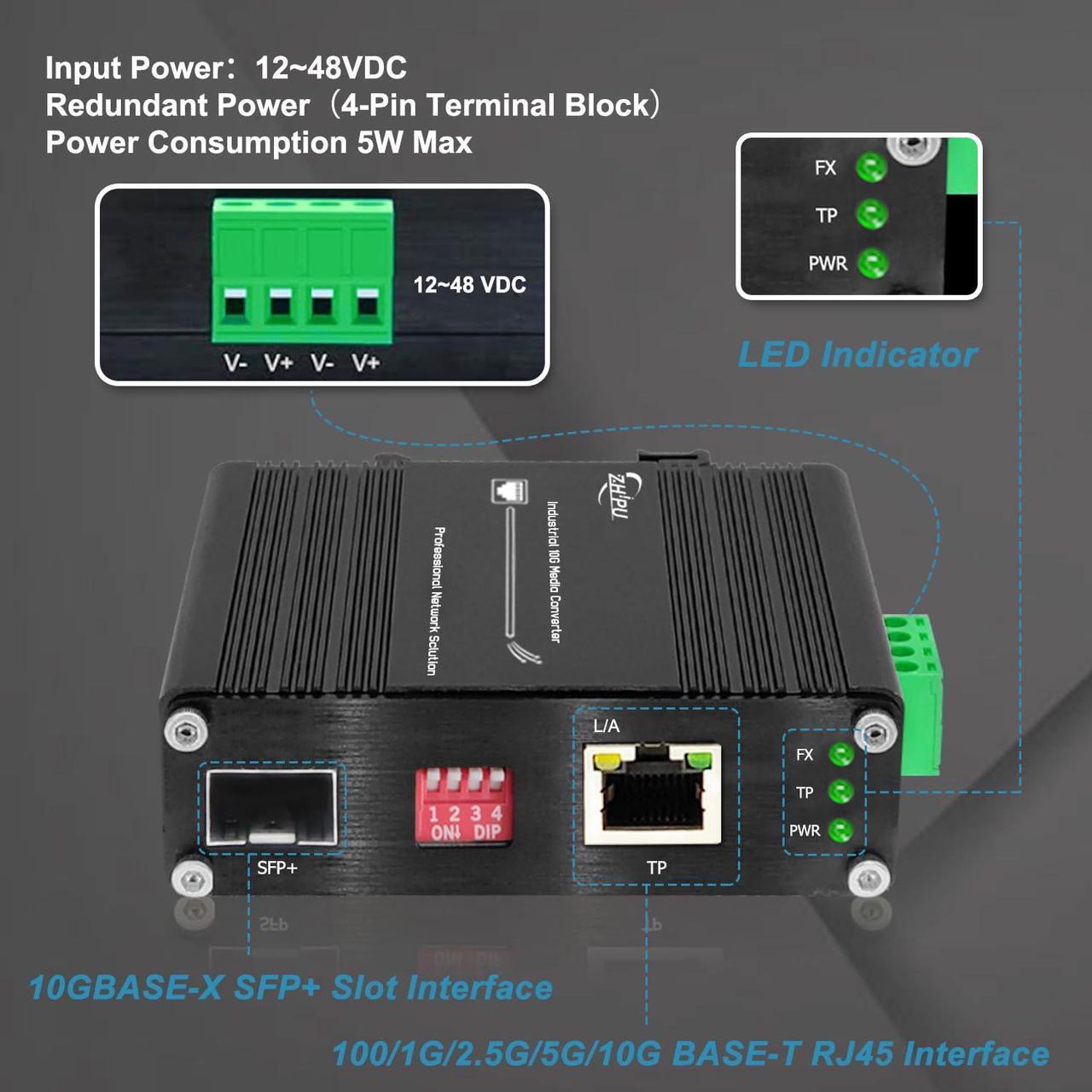

12~48VDC Terminal Block Power Input
specification:
Fabric: 20Gbps
Jumbo Frame: 9K
Address Table: 9K entries, automatic source address learning and aging
Operating Temperature: -40degC to 80degC (-40degF to 176degF)
Storage Temperature: -40degC to 85degC (-40degF to 185degF)
Relative Humidity: 5% to 95% non-condensing
MTBF> 200, 000 hrs
Power Consumption: 5W Max
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25K g
Casing: Aluminum Case
Mounting Options: DIN-Rail/Wall-mount
Zhpuostd's smallest industrial-grade 10G Ethernet media converter has 100Mbps, 1Gbps, 2.5G bps, 5Gbps and 10GBASE-TRJ45 copper interfaces and a 10G BASE-X SFP+ fiber interface. Its IP40 housing provides non-blocking line-speed performance and great flexibility in harsh industrial environments. It is your best choice.
Features:
Converts 100/1000/ 2.5G /10GBase-TX to 10GBase-X SFP
Supports IEEE 802.3 af/at/bt Power over Ethernet (Optional)
Supports Full/Half duplex
Supports Auto-MDI/MDIX
Support DIN-Rail and Wall-mount installation
Extensive LED indicators for network diagnostics
Environmentally hardened -40 to 75 (-40 to 167) operating temperature.
IP40 aluminum enclosure
12~48VDC Terminal Block Power Input
specification:
Fabric: 20Gbps
Jumbo Frame: 9K
Address Table: 9K entries, automatic source address learning and aging
Operating Temperature: -40degC to 80degC (-40degF to 176degF)
Storage Temperature: -40degC to 85degC (-40degF to 185degF)
Relative Humidity: 5% to 95% non-condensing
MTBF> 200, 000 hrs
Power Consumption: 5W Max
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25K g
Casing: Aluminum Case
Mounting Options: DIN-Rail/Wall-mount
