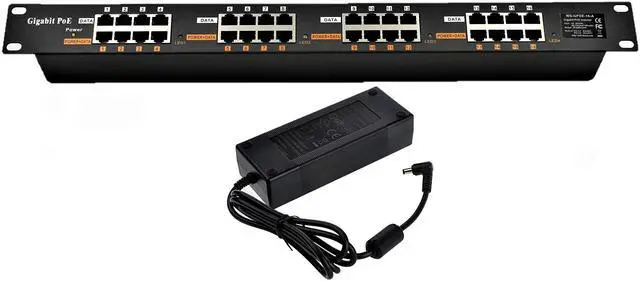

PoE Texas GPOE-16A-48v120w ^^ Passive 802.3af Power Over Ethernet Injector for 16 PoE Cameras, IP Phones, WiFi Access Points and More ^^ Includes 48 Volt Power Supply

Product Features: Instantly add gigabit PoE to any network switch or router with the option to mix 10/100 and gigabit data rate devices on the same injectorUse to power up to 16 802.3 af devices with total shared power requirements of 120 watts or less2nd power supply input for redundancy or higher total powerPowers devices labeled "12v, PoE" like HikvisionExtend power up to 328 ft or 100 metersPassive power is on all the timeCompatible with our WT-AF-5v10w or WT-GAF-12v12w splitters for powering non-PoE devicesProven reliability since 2012Included in the kit: 1x 16 Port Midspan PoE Injector1x 48-Volt 120-Watt UL/CE/FCC Certified
Power SupplyProduct

Specifications

:
Certifications: UL/CE/FCC (Power
Supply) Data Ports: 16Data +
PoE Ports: 16Data
Rate: GigabitPower
Input: 2.1 mm DC x 2Input
Voltage: 48-Volts
DCPower Supply: 48-Volts DC, 120-WattsMax
Amps Per Port: 650mAMax
Power Per Port: 30
WattsPoE Method: PassiveOutput
Voltage: 48
VoltsPoE Mode/Pinout: Mode A (-1, 2 +3, 4)PoE
Standard: IEEE
802.3 afDimensions: 19x2x2
InchesOperating Humidity: 5% to 90%Operating
Temperature Range: -10
- 60CDescription: This device provides power and data on the same Ethernet cable using pins 1, 2 and 3, 6 ( 802.3 af - Mode A). All devices receive the same voltage (48v) for a combined total of 120 watts. To calculate estimated power budget, check individual device specs for power needs. ** To extend power to USB, 5v and 12v, non-poe devices - please see our active splittersOther products from WiFi-TexasWS-GPOE-12-48v120w - 12- port rackmount optionWS-POE-16-48v120w - 10/100 versionWS-GPOES-8-7-48v60w - integrated switch with single uplink port for dataWS-POE-Tester to display power used by a deviceWT-AF-5v10w / 5-volt and WT-GAF-12v12w / 12-volt splitters
