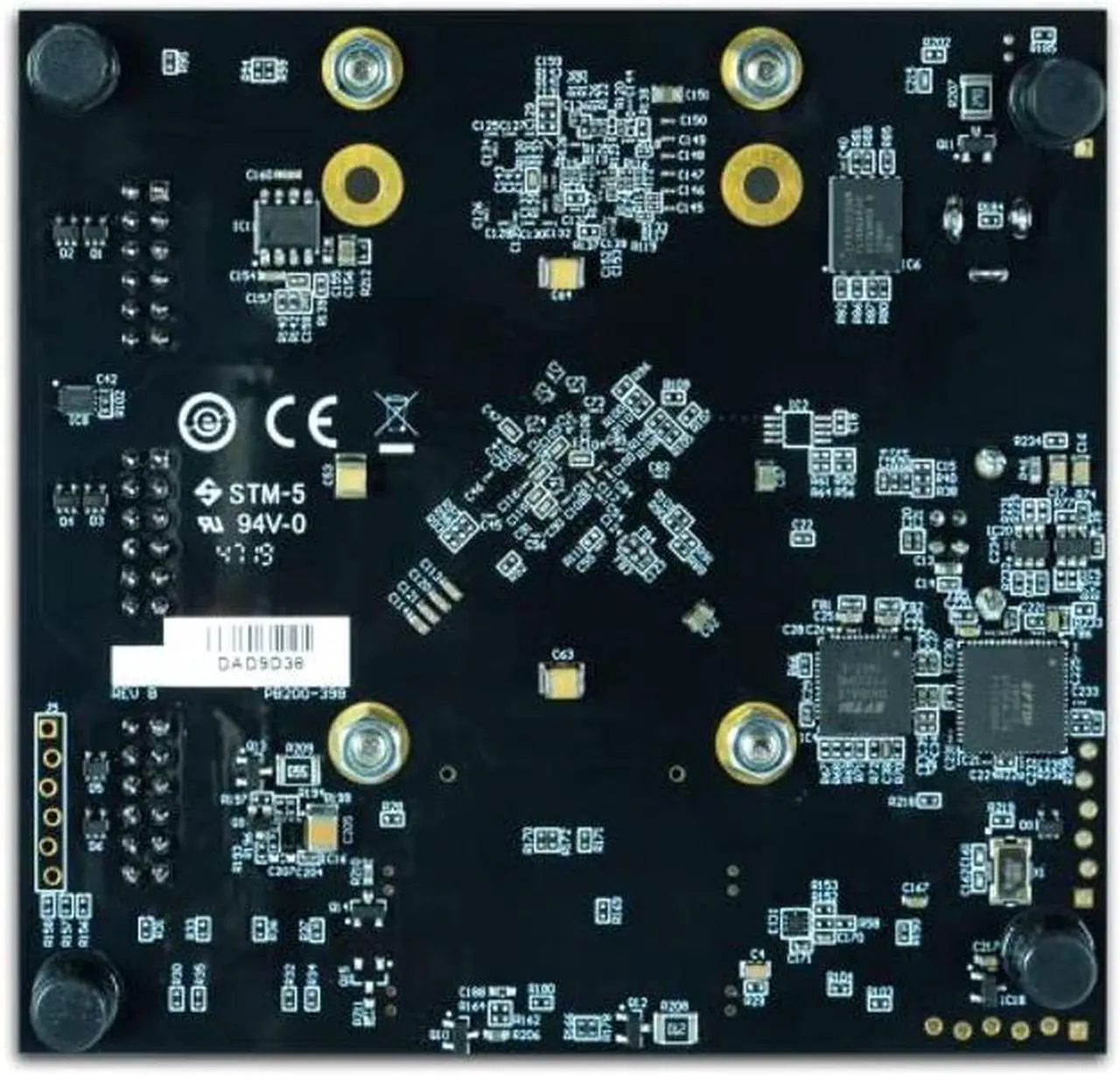

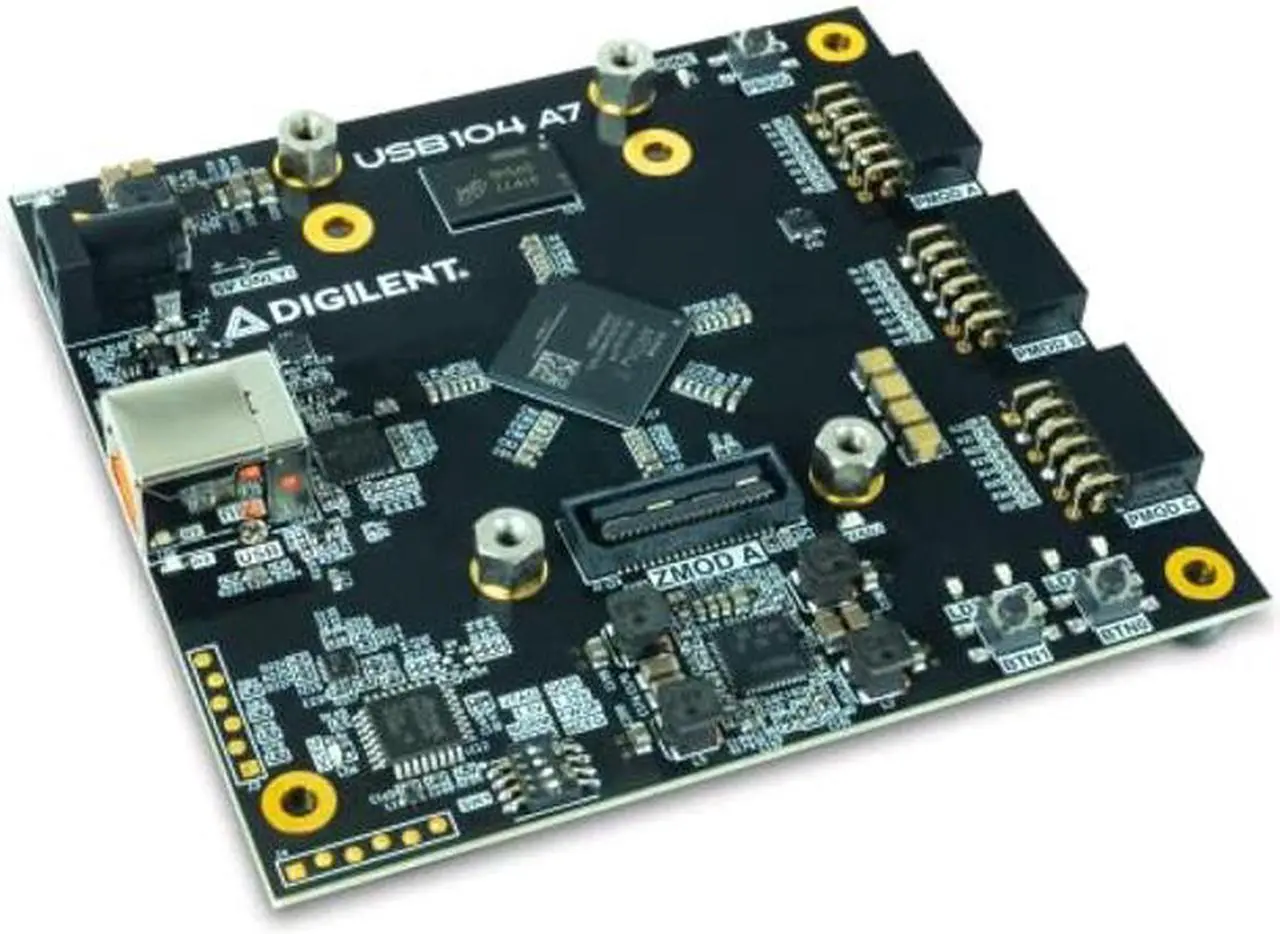

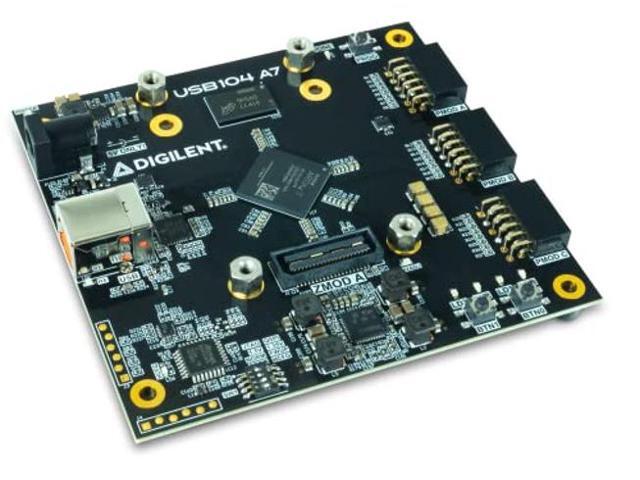

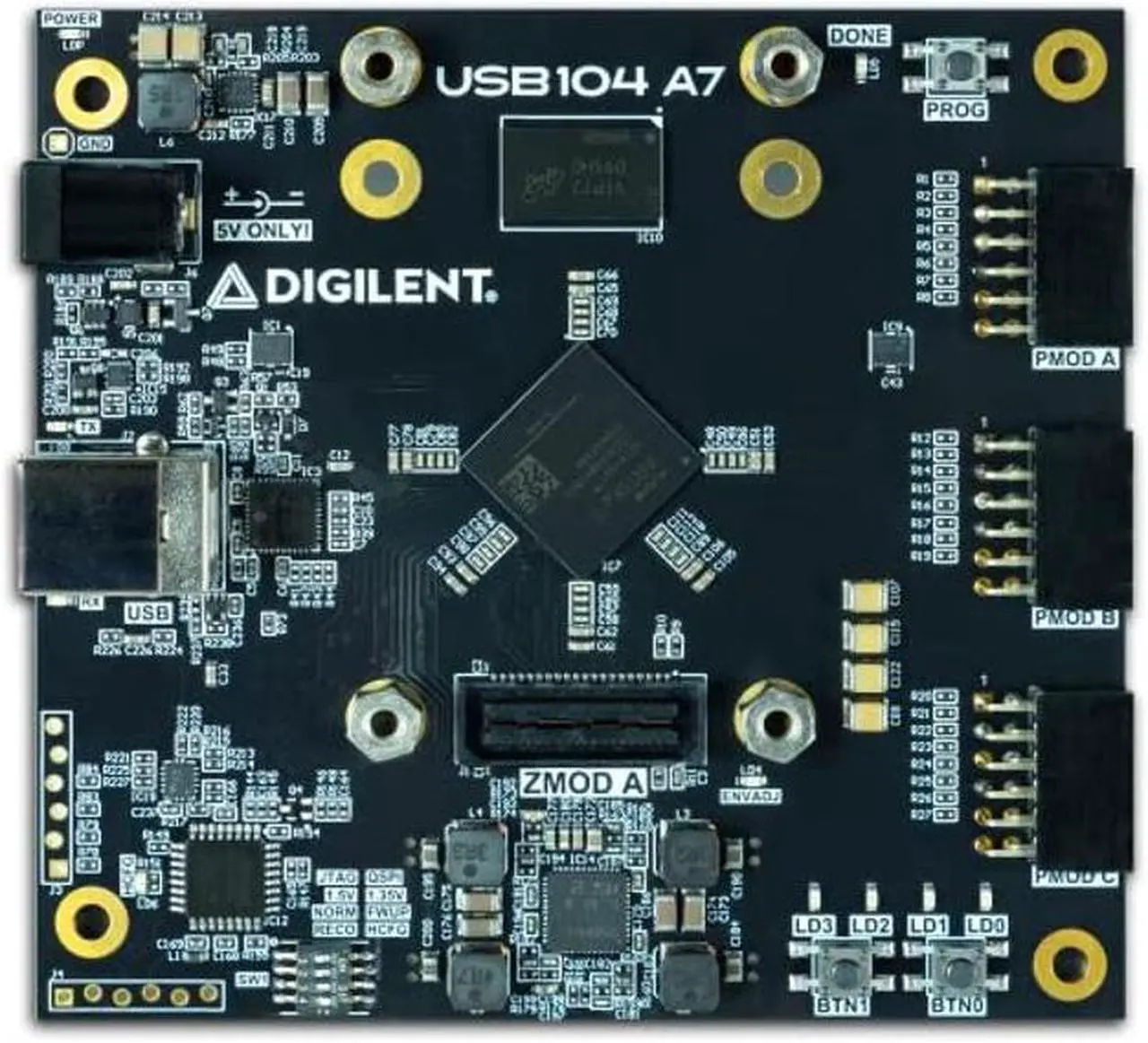

    USB104 A7: Artix-7 FPGA Development Board in PC/104 Form Factor

    • Artix-7 100T (XC7A100T-1CSG324I) FPGA
    • Memory: 512MB DDR3/DDR3L with 16-bit bus @ 800Mbps (1.5V) or 667Mbps (1.35V); 16MB Quad-SPI Flash
    • Power: Powered from a 5V external DC adapter attached to barrel jack or from USB header
    • USB: USB-JTAG Programming circuitry; USB-UART bridge
    • Expansion connectors: One standard SYZYGY port (Zmod); Three standard Pmod ports
    +
    +
    Overview
    Specs
    Reviews
    The first Digilent board to adhere to an industry-standard form factor, the
    USB104 A7 brings power and versatility to your PC/104 stackable PC. The
    board measures 95.89 mm x 90.17 mm and provides the standard mounting holes
    with standoffs included. The USB104 A7 features the industrial temperature
    rated Xilinx Artix-7 XC7A100T. Artix-7 devices provide the highest
    performance-per-watt fabric making the USB104 A7 ideal for size, weight,
    and power (SWaP) constrained projects. I/O is provided with on-board LEDs
    and push-buttons, and, of course, three 12-pin Pmod ports. A

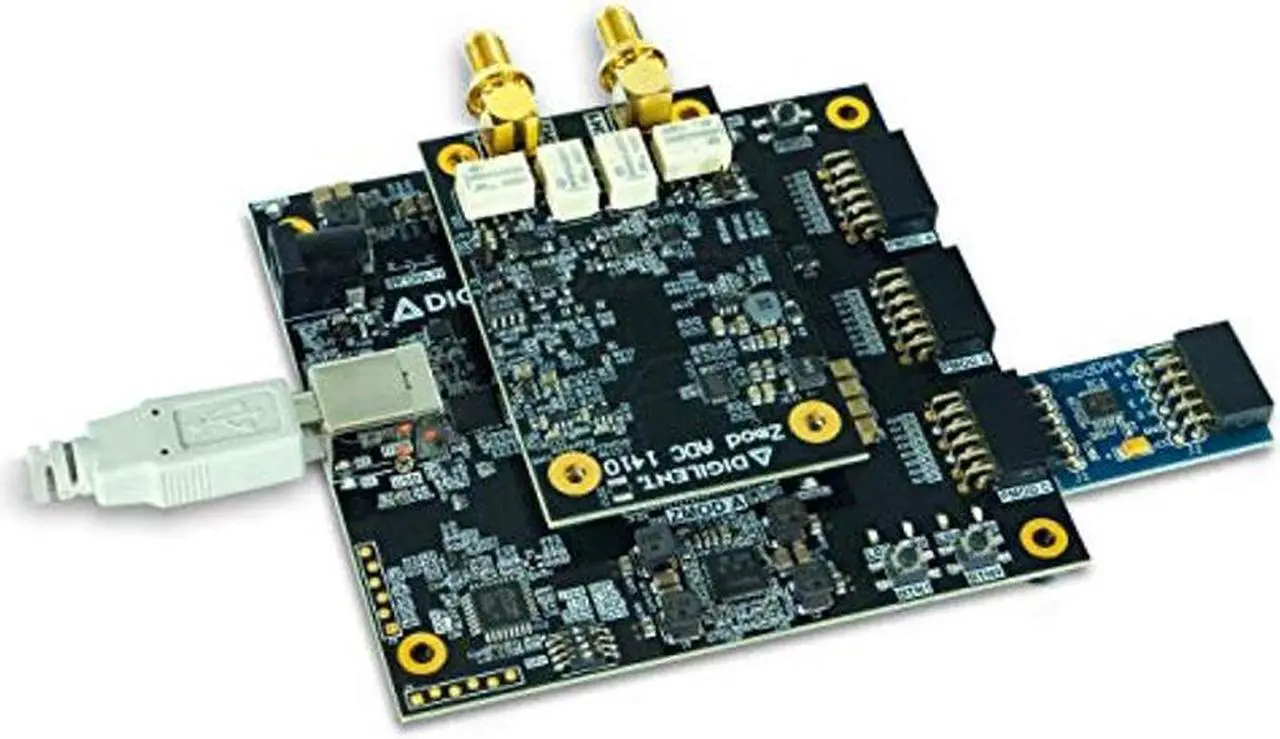

    SYZYGY-compatible Zmod port is available as well, allowing for high-speed
    signal acquisition and generation. An onboard USB hub and controller
    conveniently interfaces the USB104 A7 with JTAG, UART, and a parallel data
    interface (DPTI) through a single connection. The DPTI data transfer
    interface provides host-to-FPGA data transfer and is easily managed with
    Digilent's Adept 2 application. This ease of use and high-speed data
    transfer is especially useful for deployed systems.
