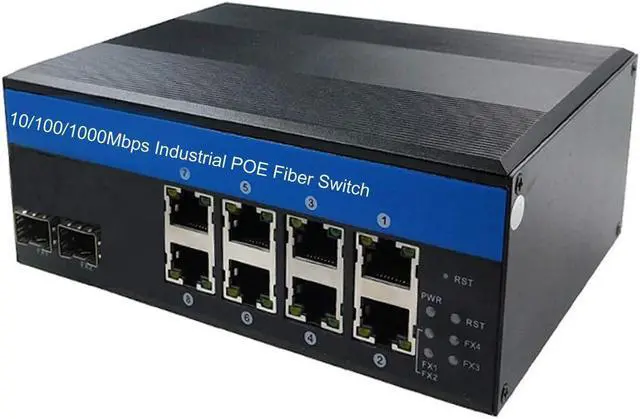

OLYCOM Industrial Switch 8Port Gigabit Ethernet with POE 240W Total 2Port SFP Din Rail Mounted IP40 for Outdoor Use

Interface: 8 POE 10/100/1000Mbps network ports, 2 SFP1000M fiber ports.

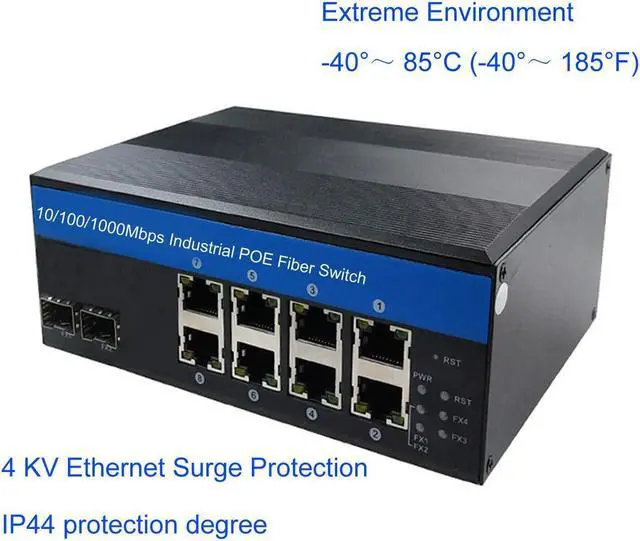

Safety, Environment, Installation: Safety: Meet IP40 protection degree and EMC industrial grade requirements. Pass through dangerous environmental certification and comply with FCC and CE standards. The hardened IP44 gigabit POE switch is rated for extreme environments with an operating temperature of -40~75(-40~167degF). DIN-rail Mounted
POE Standard: The 8 port POE switch supports POE (15.4W) and POE+ (30W). 1/2 (V+), 3/6 (V-) is default and 4/5 (V+),7/8 (V-) is optional. The total POE budget is 240W/

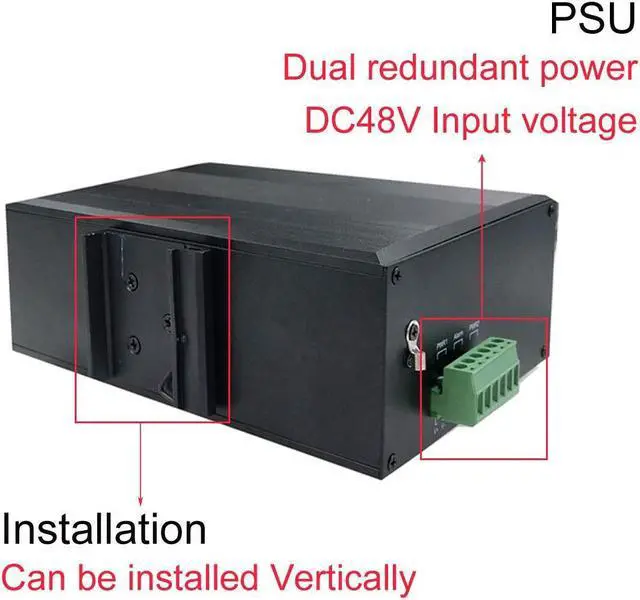

Chip and Power: A high-quality chip has been used in this Gigabit switch. PSU: Dual redundant power with overload current protection and DC48V Input voltage with Phoenix connectors (Sold without POWER ADAPTER).
What You Get: 1pc (6.22 x 4.52 x 2.36inch) 2 SFP Fiber to 8 POE+ port hardened industrial gigabit Ethernet Switch,1 User Manual; Get a warranty for replacement within one year and five ye

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The IM-FP288GE is an unmanaged 8Port Power over Ethernet Industrial Switch with a total of 240 watts of PoE power. All PoE ports run at 10/100/1000Mbps and can provide up to 30W per port comply with the IEEE 802.3 at standard power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters. Key FeaturesPOE IEEE 802.3 at power on to 1 ~ 8RJ45 ports. 4KV Ethernet surge protection, adapt to a harsh outdoor environment. Support Auto MDI/MDIX.
Flow control mode: full duplex with IEEE 802.3 x standard, half-duplex with Back pressure standard. IEEE 802.3 10Base-T and IEEE 802.3 u 100Base-TX compliant. Max power to 30W under AT standard to each PoE port. Detect the PoE models of electrical equipments. A store-and-forward switching mechanism. Din rail mounted.

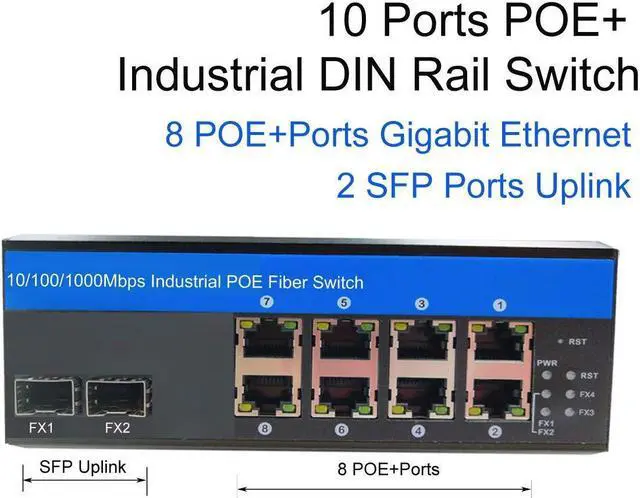

SpecificationPort: 2x 1000Mbps SFP uplink; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing).
Switching features: Transmission
mode: storage and forward.
System bandwidth: 40Gbps (non-traffic jam).
Network media:
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(<=100m); 100/1000BASE-TX: CAT5 or above shielded twisted pair(<=100m); SFP uplink port, transmission
distance: 20Km, 40Km, 60Km, 80Km, 100Km.
LEDs: Power, network, fiber.
Power supply: POE
power supply input voltage: 48V. Single PoE power supply output power: 30W (port 1~8).
Safety: CE Mark, commercial; CE/LVD EN60950.
Mechanical information:
Shell: Corrugated metal shell;
Safety class: IP44;

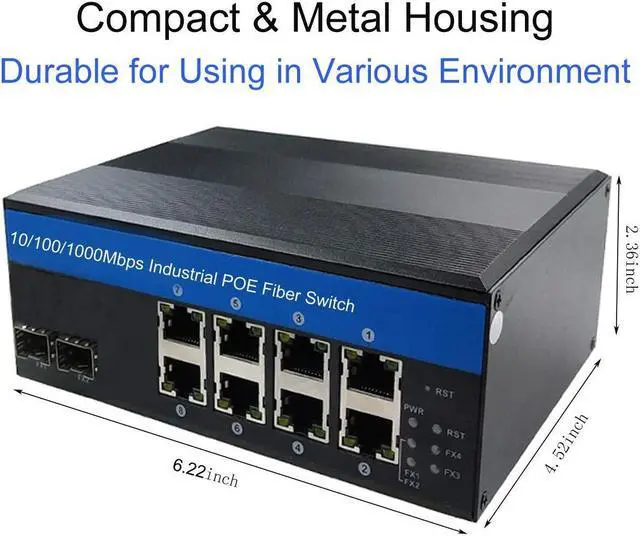

Dimension: 6.22 x 4.52 x 2.36 inch;
Mounting method: Din-rail mounting.
Warranty: Replacement within 1 year; 5 years repairing.
