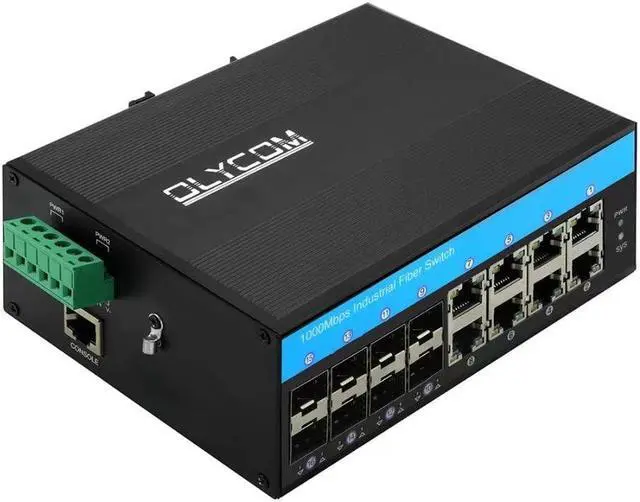

OLYCOM POE Switch 8 Port Managed Outdoor Switch L2 10/100/1000M 8 Port SFP with Din Rail Mounted Vlan QoS STP/RSTP

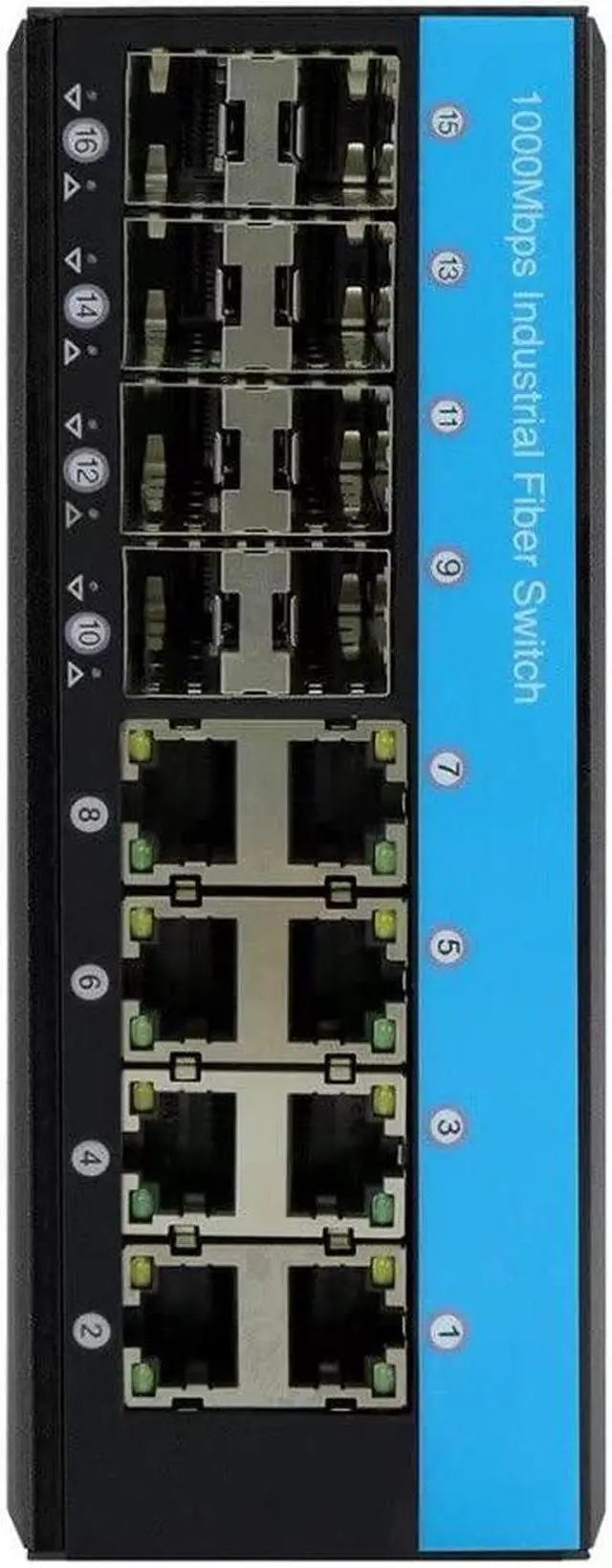

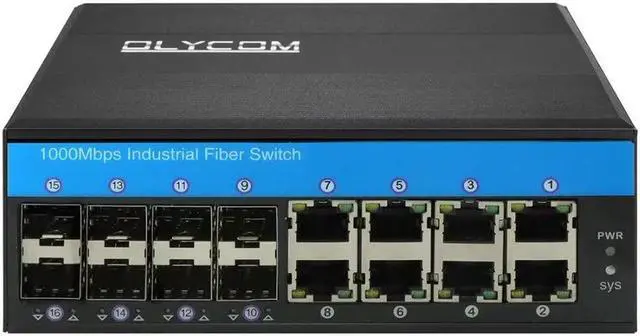

- PORT: 8 x Gigabit Ethernet RJ45 ports with POE AT 30W for each port, 8 x Gigabit SFP slots, 1 x managed console network port ( WITHOUT SFPS and POWER ADAPTER).
- L2 MANAGED: This POE switch 8 port managed supports STP, RSTP, MSTP, ITU-T G.8032 EPR, Qos, IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching and other managed functions ( Details are in the description).
- POE STANDARD: The 8 port POE switch supports POE (15.4W) and POE+ (30W). 1/2 (V+), 3/6 (V-) is the default, and 4/5 (V+),7/8 (V-) is optional wire connection. Total power is 240W.

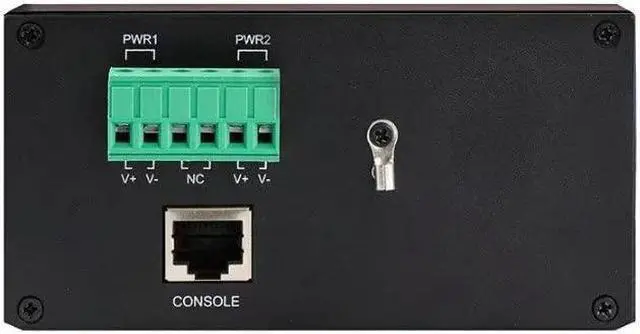

- REDUNDANT POWER: The 8 ports POE+ managed network switch has dual redundant power inputs with overload current protection (power supply sold separately)
- WHAT YOU GET: 1pc 8port POE Outdoor DIN-Rail Industrial Managed Switch (without SFP module, without power adapter), 1pc managed cable, 1pc user manual, and lifetime
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

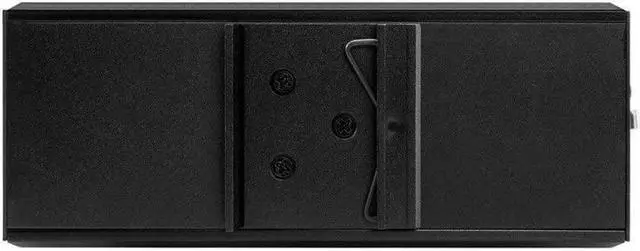

IM-FP888GW series is the POE 8 port managed outdoor switch, comply with IEEE 802.3 af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 to + 75, meet IP40 protection degree, and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards.
Ports: 1.
Fiber Port: 8pcs 1.25G SFP fiber ports ( without SFP transceivers) 2.
Network Ports: 8pcs 10/100/1000M RJ45 ports with POE AT 30W (without power adapter) 3.
Managed Port: 1pc console network port
Managed Features: 1. 4kV Ethernet surge protection, adapt to a harsh outdoor environment2. Support IEEE 802.3 az EEE Management, optimize power consumption3. Support STP, RSTP, MSTP, ITU-T G. 8032 Ethernet Protection Ring (EPR) 4. Support QoS, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression, differentiated services5. Support IEEE 802.1 q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR6. Support dynamic IEEE 802.3 ad LACP link aggregation, static link aggregation7. Support IGMP, MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching8.
Safety: based on port and Mac IEEE 802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v29. Support Cisco like CLI, Web management, SNMP v1/v2c/v3, Telnet10. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade from failing11. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 8212. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE 802.1 ab LLDP13. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
Ports: 1.
Fiber Port: 8pcs 1.25G SFP fiber ports ( without SFP transceivers) 2.
Network Ports: 8pcs 10/100/1000M RJ45 ports with POE AT 30W (without power adapter) 3.
Managed Port: 1pc console network port
Managed Features: 1. 4kV Ethernet surge protection, adapt to a harsh outdoor environment2. Support IEEE 802.3 az EEE Management, optimize power consumption3. Support STP, RSTP, MSTP, ITU-T G. 8032 Ethernet Protection Ring (EPR) 4. Support QoS, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression, differentiated services5. Support IEEE 802.1 q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR6. Support dynamic IEEE 802.3 ad LACP link aggregation, static link aggregation7. Support IGMP, MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching8.
Safety: based on port and Mac IEEE 802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v29. Support Cisco like CLI, Web management, SNMP v1/v2c/v3, Telnet10. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade from failing11. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 8212. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE 802.1 ab LLDP13. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
