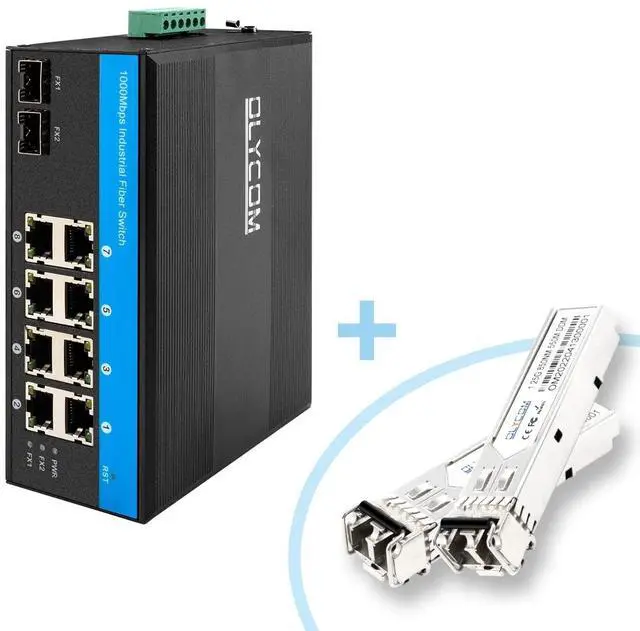

OLYCOM POE Network Switch Industrial 8Port Gigabit Ethernet Din Rail Mounted IP40 with 2pcs Industrial 1000Base-SX 850nm Dual Fiber MM 550m LC
- INTERFACE: 210/100/1000Base-X SFP uplink port (WITH 2pcs Industrial 1000Base-SX SFPs) and 810/100/1000Base-TX UTP ports with POE ( NOT include power adapter).

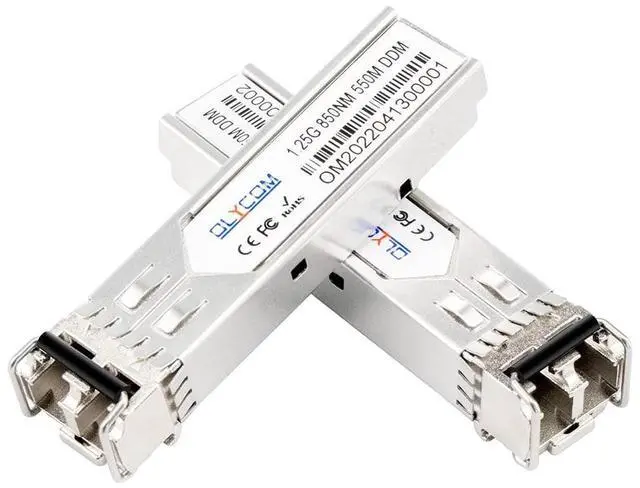

- SFP MODULES: 2pcs industrial 1000Base-SX SFP transceivers which are up to 1.25Gb/s data link 850nm Multimode dual fiber 550M LC. Support Hot-Pluggable.
- POE PORTS: 8pcs full Gigabit Ethernet RJ45 ports with POE AT (30w each RJ45 port),240W totally (Not including power adapter).
- EXTREME TEMPERATURE SWITCH: This full Gigabit 8 Port PoE+ Switch is equipped with a rugged IP40 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 75 C (- 40 - 167 F)) for harsh environments.
- WHAT YOU GET: 1pc POE Network Switch Industrial 8Port Gigabit Ethernet, 2pcs industrial transceiver 1000Base-SX ( 1.25G MM dual fiber 850nm 550M LC DDM) and lifetime technical support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OLYCOM POE Network Switch Industrial 8Port Gigabit Ethernet Din Rail Mounted IP40 with 2pcs Industrial 1000Base-SX 850nm Dual Fiber MM 550m LC1.
Product Name: POE Network Switch Industrial 8Port (2F+8TP)2.
Model No.: IM-FP288GE-MD053.
Fiber Port: 2 x 1000Mbps ( WITH 2pcs Industrial 1000Base-SX 850nm Dual Fiber MM 550m LC, DDM)4.
Network Port: 8 x 10/100/1000M CAT5 ports5.
POE Port: 8 x 10/100/1000M RJ45 ports with IEEE 802.3 af/at, 15.4W /30 for each port. 240W in total (WITHOUT power adapter) 5.
Switching features: Transmission
mode: storage and forward; System bandwidth40Gbps (non-traffic jam)6.
Network media:
10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair (100m); 100/1000BASE-TX: CAT5 or above shielded twisted pair (100m); 8.

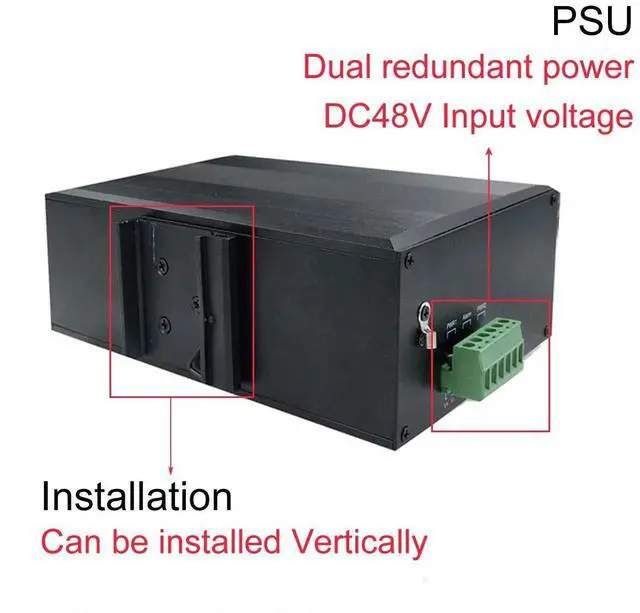

PSU: Input
voltage: DC 48-52V;
No-load power: 5W;
Reverse connection: support9.
LEDs: Power, network, fiber10.
Working Temperature: -40 75C (-40 176F) tough extreme environment. 11.
Safety: CE Mark, commercial; CE/LVD EN6095012.
Safety class: IP40 protection13.
Mechanical information:
Shell: Corrugated metal housing14.
Mounting method: Din-rail mountingWarrantyReplacement within 3years; 5 years repairing
Product Name: POE Network Switch Industrial 8Port (2F+8TP)2.
Model No.: IM-FP288GE-MD053.
Fiber Port: 2 x 1000Mbps ( WITH 2pcs Industrial 1000Base-SX 850nm Dual Fiber MM 550m LC, DDM)4.
Network Port: 8 x 10/100/1000M CAT5 ports5.
POE Port: 8 x 10/100/1000M RJ45 ports with IEEE 802.3 af/at, 15.4W /30 for each port. 240W in total (WITHOUT power adapter) 5.
Switching features: Transmission
mode: storage and forward; System bandwidth40Gbps (non-traffic jam)6.
Network media:
10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair (100m); 100/1000BASE-TX: CAT5 or above shielded twisted pair (100m); 8.
PSU: Input
voltage: DC 48-52V;
No-load power: 5W;
Reverse connection: support9.
LEDs: Power, network, fiber10.
Working Temperature: -40 75C (-40 176F) tough extreme environment. 11.
Safety: CE Mark, commercial; CE/LVD EN6095012.
Safety class: IP40 protection13.
Mechanical information:
Shell: Corrugated metal housing14.
Mounting method: Din-rail mountingWarrantyReplacement within 3years; 5 years repairing
