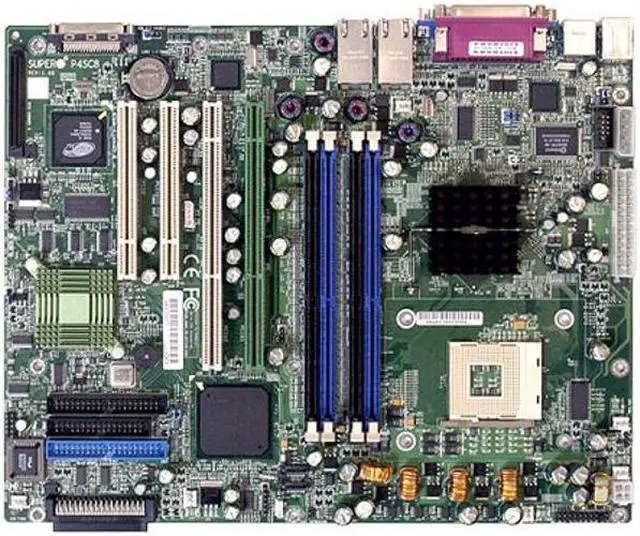

Super Micro ATX MBD P4SC8 E7210 P4HT-VGA U320 SATA GETH PCI-X

General Information -
Manufacturer: Supermicro Computer, Inc -
Manufacturer Part Number: MBD-P4SC8-O -
Manufacturer Website Address: www. supermicro.
com - Product Type: Desktop Board -
Product Name: P4SC8 Desktop Board -
Marketing Information: With an 800 MHz front side bus and dual channel DDR400 memory, the Intel 7210 chipset defines the new levels of system performance for entry-level server and workstation platforms.
- Packaged Quantity: 1 -
Package Type: Retail Processor & Chipset -
Processor Interface: 1 x µPGA-478 ZIF Socket 478 -
Processor Support: 1 x Pentium 4 (Extreme Edition) Up to 3.4GH z -
Processor Support: 1 x Pentium 4 Up to 3.2GH z -
Processor Support: 1 x Celeron Up to 2.8GH z -
Processor Class: Pentium 4 (Extreme Edition) -
Processor Class: Pentium 4 -
Processor Class: Celeron -
Processor Bus Speed: 800MHz -
Processor Bus Speed: 533MHz -
Processor Bus Speed: 400MHz -
Chipset: Intel E7210 (Canterwood ES)
Memory - Memory Slots: 4 x 184-pin DIMM Dual channel memory bus -
Maximum Memory: 4GB I/O Expansions -
Expansion Slots: 2 x PCI-X 64-bit 66MHz 3.3V DC -
Expansion Slots: 2 x PCI 32-bit 33MHz 5V DC Controllers -
Graphics Controller: ATi Rage XL SVGA - with 8MB -
Network Controller: 1 x Intel 82547GI 10/100/1000Mbps CSA -
Network Controller: 1 x Intel 82541 10/100/1000Mbps -
Serial ATA Controller: Intel 6300ESB Dual-channel Interfaces/Ports -
Back-panel Interfaces: 1 x 6-pin PS/2 Female mini-DIN Keyboard -
Back-panel Interfaces: 1 x 6-pin PS/2 Female mini-DIN Mouse -
Back-panel Interfaces: 1 x 9-pin DB-9 Male 16550 UART D-Sub Serial -
Back-panel Interfaces: 1 x 15-pin D-Sub (HD-15) Female D-Sub VGA -
Back-panel Interfaces: 1 x 25-pin DB-25 Female D-Sub Parallel -
Back-panel Interfaces: 2 x 4-pin Type A USB 2.0 -
Back-panel Interfaces: 2 x RJ-45 Gigabit Ethernet Network -
Front-panel Interfaces: 1 x Power LED -
Front-panel Interfaces: 1 x HDD LED -
Front-panel Interfaces: 2 x NIC LED -
