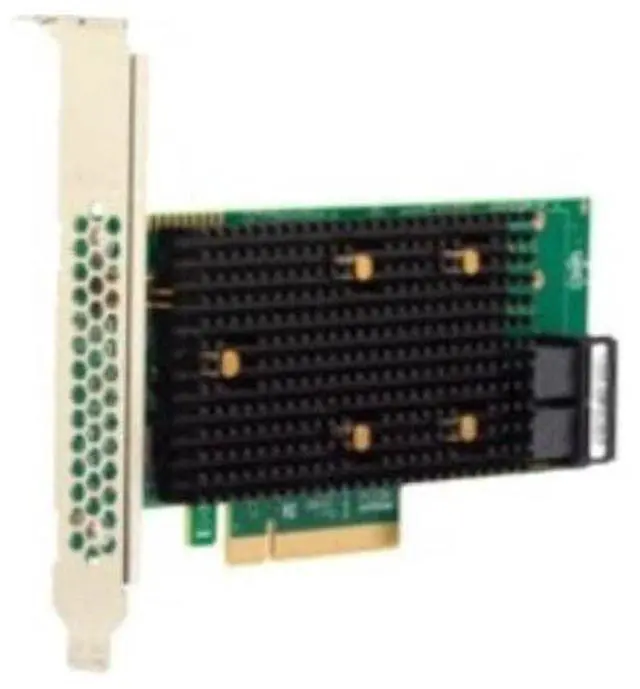

LSI 9500-8I
- The Broadcom host bus adapter serves as a hardware interface for storage devices.
- Ports: PCIe x8 4.0, 1 SlimSAS SFF-8654 ort for up to 8 internal SATA / SAS drives
- The maximum data transfer rate is 12 Gbps.
- IT mode firmware is installed.
- Full and low profile brackets are included.
- Alternatively labeled as: 9500-8i, 05-50077-03
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PCIe Gen 4.0 HBA provides high bandwidth and unprecedented flexibility to todays expanding data centers with Tri-Mode connectivity and NVMe devicesC
The 9500-8i Tri-Mode, PCIe Gen 4.0 HBA with eight internal ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9500-8i adapter delivers the performance and scalability needed by critical applications.
Connects up to 1024 SAS / SATA devices or 32 NVMe devices
Provides maximum connectivity and performance for high-end servers and applications
Support critical applications with the bandwidth of PCIe 4.0 connectivity
Universal Bay Management (UBM) ReadyLifecycleC
ActiveTypical PowerC
5.96WH ost Bus TypeC
x8 lane PCI Express 4.0D evices SupportedC
SAS / SATA: 1024, NVMe: 32Internal ConnectorsC
1 x8 SFF-8654 (SlimSAS) Internal PortsC
8Operating TemperatureC
0 o C to 55 o COS SupportC
Microsoft Windows, VMware vSphere / ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSDI / O ControllerC
SAS3808MTBFC
> 5, 000, 000 hours at 40 o COperating HumidityC
20% to 80% Non-condensingBracketsC
Full height and low profileRegulatory CertificationsC
Australia / New Zealand (AS / NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022 / EN55024), Europe (EN55022 / EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 25), RoHS, Safety: EN / IEC / UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEEManagement SoftwareC
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) Item Dimension (L inchxW inchxH inch) C
12 x 6 x 10
WeightC
6.00 LB
Warranty InformationC
3 Years
The 9500-8i Tri-Mode, PCIe Gen 4.0 HBA with eight internal ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9500-8i adapter delivers the performance and scalability needed by critical applications.
Connects up to 1024 SAS / SATA devices or 32 NVMe devices
Provides maximum connectivity and performance for high-end servers and applications
Support critical applications with the bandwidth of PCIe 4.0 connectivity
Universal Bay Management (UBM) ReadyLifecycleC
ActiveTypical PowerC
5.96WH ost Bus TypeC
x8 lane PCI Express 4.0D evices SupportedC
SAS / SATA: 1024, NVMe: 32Internal ConnectorsC
1 x8 SFF-8654 (SlimSAS) Internal PortsC
8Operating TemperatureC
0 o C to 55 o COS SupportC
Microsoft Windows, VMware vSphere / ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSDI / O ControllerC
SAS3808MTBFC
> 5, 000, 000 hours at 40 o COperating HumidityC
20% to 80% Non-condensingBracketsC
Full height and low profileRegulatory CertificationsC
Australia / New Zealand (AS / NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022 / EN55024), Europe (EN55022 / EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 25), RoHS, Safety: EN / IEC / UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEEManagement SoftwareC
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) Item Dimension (L inchxW inchxH inch) C
12 x 6 x 10
WeightC
6.00 LB
Warranty InformationC
3 Years
