$339.99
Meet Your Seller

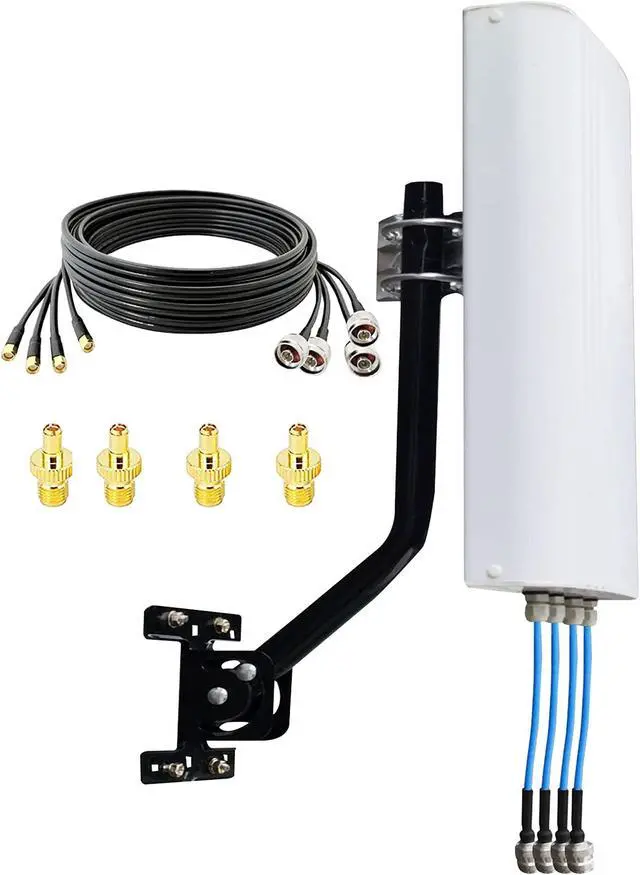

4x4 MIMO External Panel 5G 4G LTE Antennas/Directional Outdoor WiFi Antenna Long Range 698-4000 MHz for WiFi 5G 4G LTE Router &Hotspots(Full Kit)
- The 4x4 MIMO antenna will Allow You To Connect On More Bands /Improve Signal Quality /Increase Signal Strength .
- Advantage 1 :698-4000MHz wide band will allow to connect on more signal bands ,as 4G /5G /wifi /LTE .The 4x4 mimo and the 7.5 dBi high gains will more improve signal quality and increase signal strength .
- Advantage 2 :use a 4x4 mimo enabled routers and antenna will more improve Signal Quality /Increase Signal Strength than rather than a single or 2x2 MIMO device
- The 4x4 MIMO 5G 4G LTE Antennas can be used on router with only 2 external antenna ports ,the unused connections would just remain unconnected .We'd recommend that any unused ports be sealed away, so that they aren't accidentally damaged while not in use .
- Support Carrier /Routers :The 4x4 mimo panel antenna support wifi 4G LTE and 5G cellular signals from any carrier and work for router / hotspot which supports the use of external antennas .
- Installation of The Antenna Requires Patience And
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Electrical Specification
Frequency Range: 698-960/1710-2700/3300-4000MHz
Peak Gain: 7.5 dBi
Polarization: Vertical
Horizontal Half-power Beam width: 45±3º
Vertical Half-power Beam width: 45±3º
Front to back ratio (dB): 23
VSWR: 1.5
Input Impedance: 50
Maximum input power: 100W
Lightning protection: DC Ground
Mechanical Specification
Input connector type: N Female
Dimensions(Heigh/width/depth): 410*180*60mm
Antenna weight: 1.20 kg
Radome material: UPVC
Radome color: Gray
Mechanical tilt: 0°~10°
Operating temperature: -40~60
Rated Wind Velocit: 60m/s
Mounting hardware: 35mm~90mm
