ACEIRMC 2pcs 915MHz ESP32 LoRa 0.96 OLED Development Board V3 SX1262 Type-C with LoRa Antenna for Arduino NodeMCU IoT
- LoRa V3 board are an improvement over the V2 version, but they are not a replacement.
- Onboard 0.96-inch 128*64 dot matrix OLED display to display debugging information, battery power etc.
- This product is based on the ESP32 WIFI Kit added SX1262 chip, that is, LoRa V3 version, 433MHz frequency, about -139dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 3.6Km).
- 868MHz 915MHz SX1276 ESP32 LoRa OLED 0.96 Inch Blue Display Bluetooth WIFI ESP32 ESP-32 Module For Arduino With Antenna

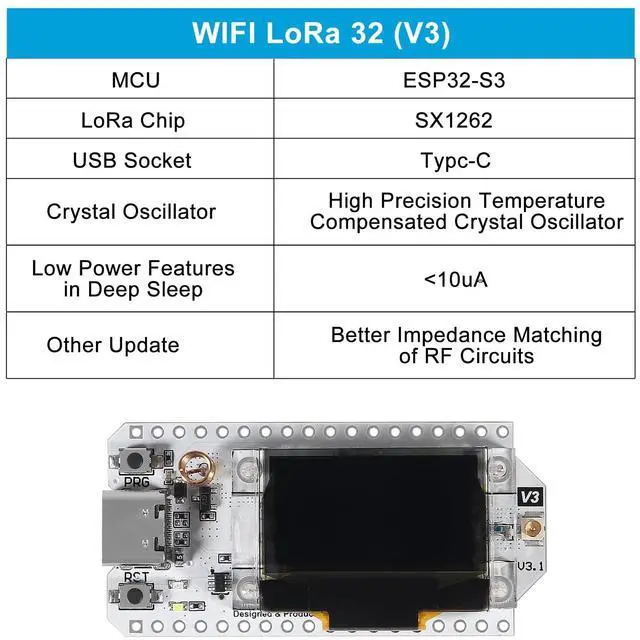

- MCU: ESP32-S3, LoRa Chip: SX1262, USB Socket: Type-C
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Lora32 V3 Kit ESP32 S3 WiFi+BT Development Board 0.96 inch OLED Display SX1262 CP2102 with 915MHZ Antenna Transceiver for Arduino
Feasture:

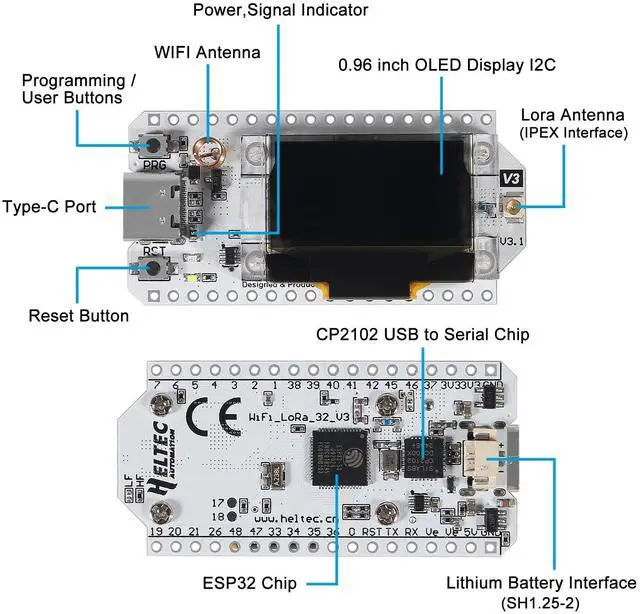

ESP32-S3FN8 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz.
SX1262 LoRa node chip.
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding etc.

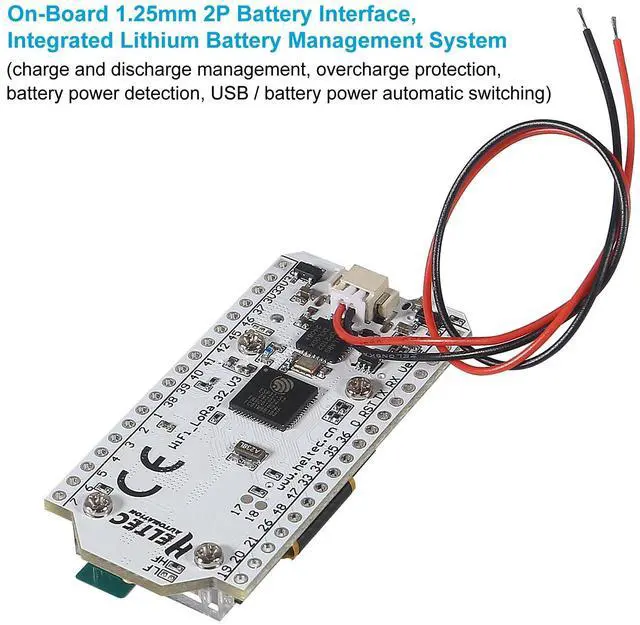

Onboard SH 1.25 -2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, -USB / battery power automatic switching).
Integrated WiFi, LoRa, BLE three network connections, onboard Wi-Fi, BlE dedicated 2.4GH z metal spring antenna, reserved IPEX (U. FL) interface for LoRa use.
Onboard 0.96 -inch 128*64 dot matrix OLED display to display debugging information, battery power etc.
Integrated CP2102 TPYE-C USB to serial port chip, convenient for program downloading, and debugging information printing.
Package Included:

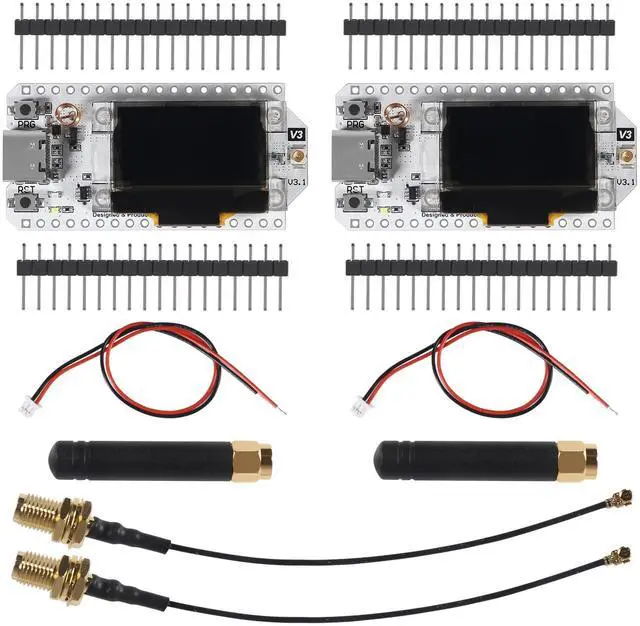

2 x WiFi LoRa 32 V3 board
2 x 1.25 mm 2pin cable
2 x lora antenna 863 928 915 universal
Feasture:
ESP32-S3FN8 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz.
SX1262 LoRa node chip.
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding etc.
Onboard SH 1.25 -2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, -USB / battery power automatic switching).
Integrated WiFi, LoRa, BLE three network connections, onboard Wi-Fi, BlE dedicated 2.4GH z metal spring antenna, reserved IPEX (U. FL) interface for LoRa use.
Onboard 0.96 -inch 128*64 dot matrix OLED display to display debugging information, battery power etc.
Integrated CP2102 TPYE-C USB to serial port chip, convenient for program downloading, and debugging information printing.
Package Included:
2 x WiFi LoRa 32 V3 board
2 x 1.25 mm 2pin cable
2 x lora antenna 863 928 915 universal
