Luckfox Pico Max Linux Micro Development Board RV1106G3 Chip, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, with Rich Interfaces MIPI CSI/GPIO/UART/SPI/I2C/USB, etc-256MB DDR3L Memory

Introduction

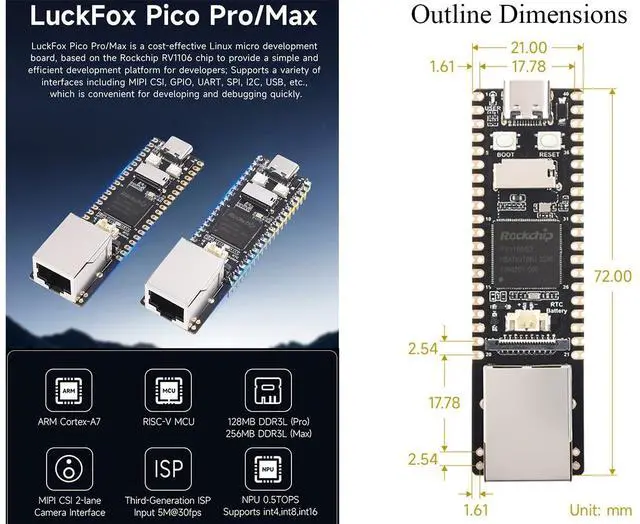

Luckfox Pico Max without header (256MB Memory) Linux Micro Development Board based on the Rockchip RV1106G3 chip. RV1106 is a highly integrated IPC visual processing SoC designed for AI-related applications. It is built on a single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU, and features a built-in NPU that supports INT4/INT8/INT16 mixed operations, with a computing power of up to 0.5 TOPs.

Features
Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP 3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
Integrated with built-in POR, audio codec and MAC PHY

Specifications

NPU: 0.5TOPS, supports int4, int8 and int16
ISP: Input 5M @30fps (Max)
Memory: Max: 256MB DDR3L
USB: USB 2.0 Host/Device
Camera: MIPI CSI 2-lane
GPIO: 26 x GPIO pins
Ethernet port: 10/100M Ethernet controller and embedded PHY

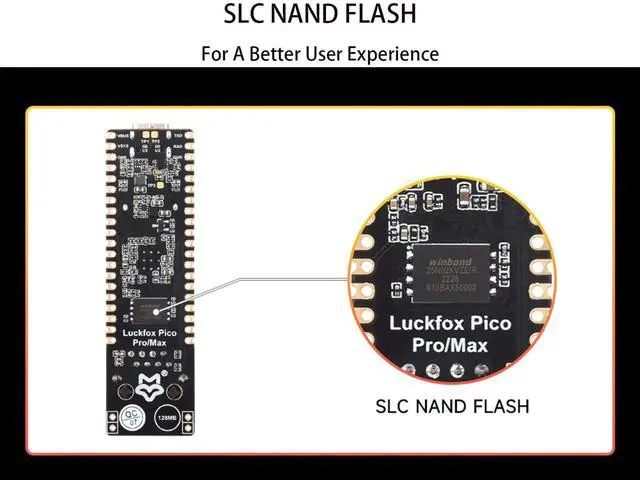

Default Storage: SPI NAND FLASH (256MB)

Comes with Online Tutorial and Online Development Resource: n9. cl/7hvnx

Package Content
Luckfox Pico Max without headerx1
