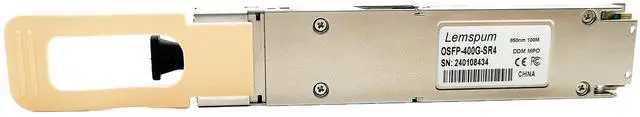

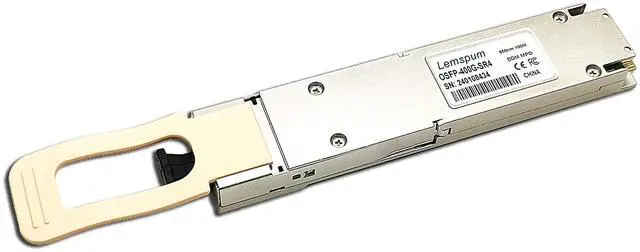

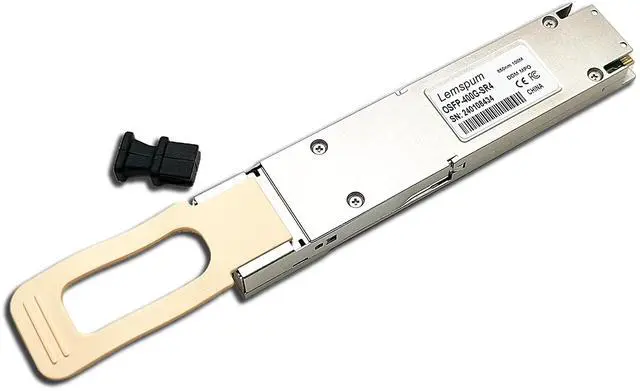

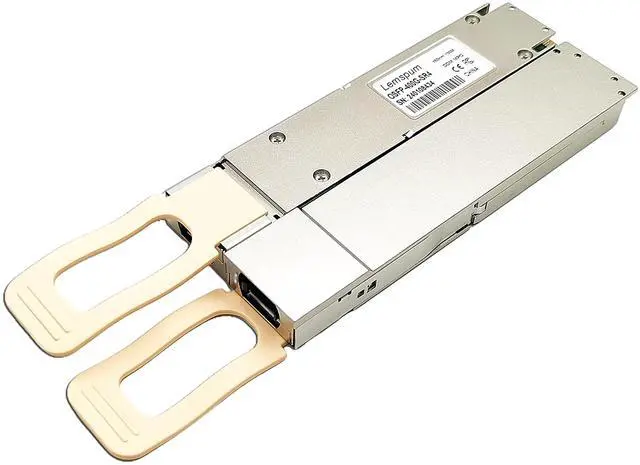

Lemspum OSFP-400G-SR4 400G Multimode OSFP SR4 PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module,Support 4 x 100G-SR4
- Support 100GBASE per lane in multimode fiber.Fibres: 8 fibres (ribbon patchord).
- Hot-pluggable OSFP Type form factor. Data rate up to 425Gbps (4x 106.25Gbps ).
- Connector: MPO-16/APC.Max reach: 100m, over multimode OM4(MMF) fibre.
- Form factors: QSFP56-DD, OSFP. Upgrade from: 40GBASE-SR4, 100GBASE-SR4. Alliance: IEEE 802.3cm (IEEE name is 400GBASE-SR4.2)
- Modulation format: PAM4. 850nm VCSEL laser and PIN receiver. High speed I/O electrical interface (400GAUI-4).
- 100% Tested. 36-Month Free-Maintenance. 30-Day for unconditional replacement or refund for any quality issue.Lifetime technology support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
400GbE Multimode OSFP
Data rate(Gb/s): 425Gb/s
Modulation format: PAM4
Optical return loss tolerance (max): 14dB
Average receive power,
each lane: - 6.4 ~4dBm
DDM Support: Yes
Power Consumption: <10W
Operating case temperature: 0 to +70°C
Compliant to RoHS 6/6
Compliant to 400Gb OSFP MSA and CMIS 5.0
C
C The 400GBASE-SR4 is technically more complex than the 400GBASE-SR8 but it has the great advantage of being interoperable with an upgrade from 40GBASE-SR4 and 100GBASE-SR4.
It has 4 VCSEL 850nm lasers cadenced at 100Gbps PAM4 thanks to the internal gearbox converting 8x 50Gbps PAM4 to 4x 100Gbps PAM4.
Application: 400G Ethernet, Data Center Interconnect, Infiniband Interconnects, Enterprise Networking
Data rate(Gb/s): 425Gb/s
Modulation format: PAM4
Optical return loss tolerance (max): 14dB
Average receive power,
each lane: - 6.4 ~4dBm
DDM Support: Yes
Power Consumption: <10W
Operating case temperature: 0 to +70°C
Compliant to RoHS 6/6
Compliant to 400Gb OSFP MSA and CMIS 5.0
C
C The 400GBASE-SR4 is technically more complex than the 400GBASE-SR8 but it has the great advantage of being interoperable with an upgrade from 40GBASE-SR4 and 100GBASE-SR4.
It has 4 VCSEL 850nm lasers cadenced at 100Gbps PAM4 thanks to the internal gearbox converting 8x 50Gbps PAM4 to 4x 100Gbps PAM4.
Application: 400G Ethernet, Data Center Interconnect, Infiniband Interconnects, Enterprise Networking
