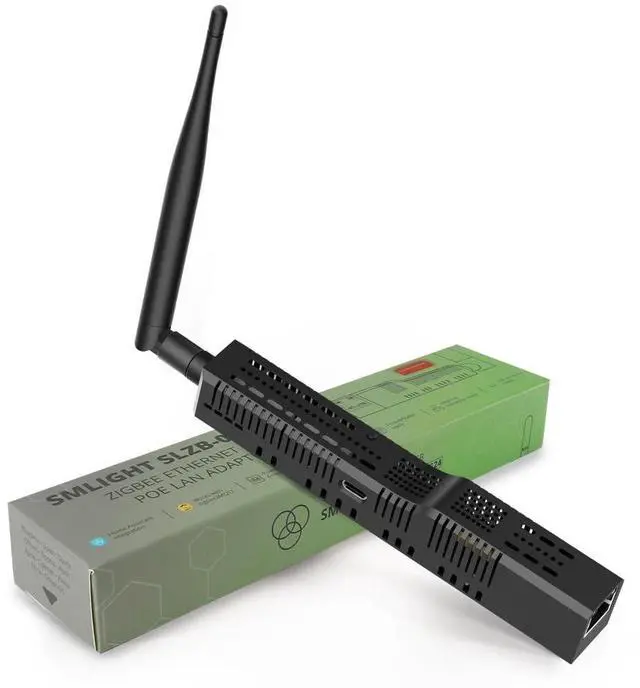

SMLIGHT SLZB-06MG24 A Zigbee 3.0 to Ethernet, USB, and WiFi Adapter with PoE Support, Works with Zigbee2MQTT, Home Assistant, ZHA

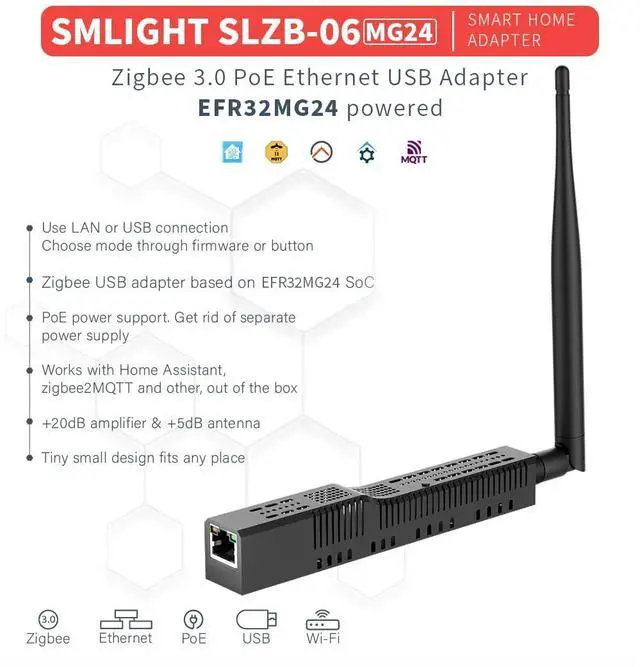

- 1.SLZB-06MG24 is a Zigbee to Ethernet/USB/WiFi adapter with POE support, comes pre-flashed and ready to use. Can be used as a Zigbee 3.0 gateway in the open source automation platforms Zigbee2MQTT, Home Assistant, ZHA.
- 2.Works in both modes LAN and USB. Mode can be changed in firmware or via button.

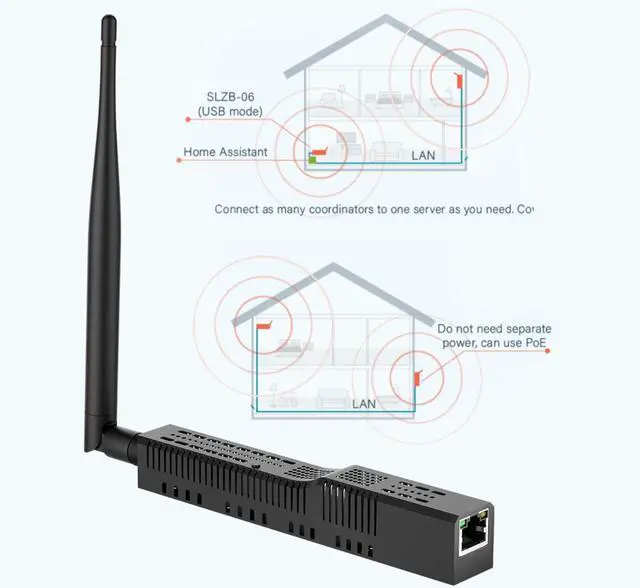

- 3.Can add as many Zigbee coordinators to one server as you want. So you can easily cover different rooms, buildings and connect them to the same Home Assistant instance.
- 4.You can power the device through POE or type-C. microUSB-typeC adapter is included in the package as well.
- 5.Zigbee SoC EFR32MG24 features +20dB gain, +5dB antenna included.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SLZB-06MG24 specifications:
Wireless SoCs
Texas Instruments CC2652P1FRGZR Arm Cortex-M4F microcontroller @ 48 MHz with 352KB flash, 256KB ROM for protocols and library functions, 80+8KB SRAM, integrated power amplifier, Bluetooth 5.2 Low Energy and 802.15. 4 radios
Espressif Systems ESP32-DOWDQ5-V3 dual-core processor @ 240MHz with 448 KB ROM, 520 KB SRAM, 16 KB SRAM in RTC, WiFi and BLE connectivity
Connectivity
Ethernet RJ45 port with PoE support (IEEE 802.3 af) implemented through Microchip LAN8720 10/100M Ethernet controller
2.4 GHz WiFi up to 100 Mbps
Zigbee 3.0 support
+5dB SMA antenna included
USB USB Type-C port for data and power
Misc 4x user LEDs, 1x button
Power Supply
oInput 5V/200mA via USB or PoE
Dimensions 160 x 26 x 22mm
Operating temperature: +5C - +35C
Note:
SLZB-06 designed to work with Zigbee2MQTT or ZHA integration for Home Assistant.
Wireless SoCs
Texas Instruments CC2652P1FRGZR Arm Cortex-M4F microcontroller @ 48 MHz with 352KB flash, 256KB ROM for protocols and library functions, 80+8KB SRAM, integrated power amplifier, Bluetooth 5.2 Low Energy and 802.15. 4 radios
Espressif Systems ESP32-DOWDQ5-V3 dual-core processor @ 240MHz with 448 KB ROM, 520 KB SRAM, 16 KB SRAM in RTC, WiFi and BLE connectivity
Connectivity
Ethernet RJ45 port with PoE support (IEEE 802.3 af) implemented through Microchip LAN8720 10/100M Ethernet controller
2.4 GHz WiFi up to 100 Mbps
Zigbee 3.0 support
+5dB SMA antenna included
USB USB Type-C port for data and power
Misc 4x user LEDs, 1x button
Power Supply
oInput 5V/200mA via USB or PoE
Dimensions 160 x 26 x 22mm
Operating temperature: +5C - +35C
Note:
SLZB-06 designed to work with Zigbee2MQTT or ZHA integration for Home Assistant.
