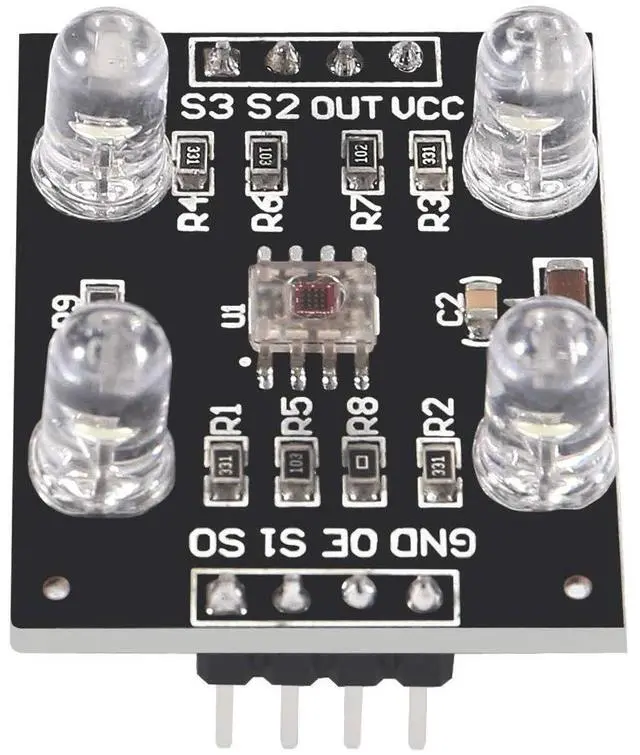

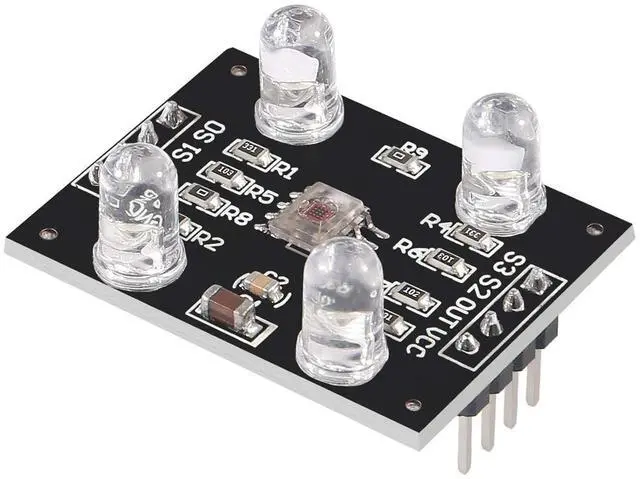

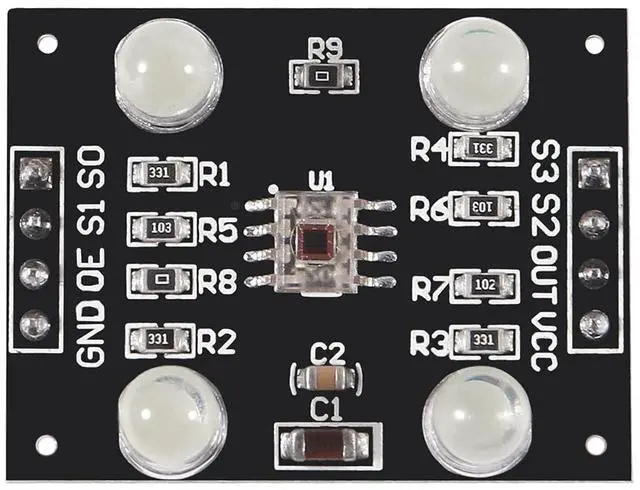

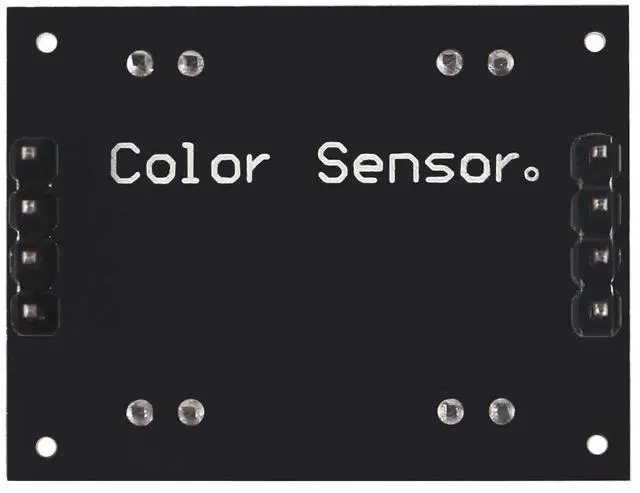

Dorhea 3Pcs TCS230 RGB Light Color Sensor TCS3200 Recognition Sensor Detector Module with 4 LED White LED Lights Microcontroller
- The TCS3200 and TCS3210 programmable color light-to-frequency converters that combine configurable silicon photodiodes and a current-to-frequency converter on a single monolithic CMOS integrated circuit.
- The output is a square wave (50% duty cycle) with frequency directly proportional to light intensity (irradiance).The full-scale output frequency can be scaled by one of three preset values via two control input pins.
- Digital inputs and digital output allow direct interface to a microcontroller or other logic circuitry. Output enable (OE) places the output in the high-impedance state for multiple-unit sharing of a microcontroller input line.
- In the color recognition sensor detector module, the light-to-frequency converter reads an 8 x 8 array of photodiodes. Sixteen photodiodes have blue filters, 16 photodiodes have green filters, 16 photodiodes have red filters, and 16 photodiodes are clear with no filters.
- The four types (colors) of photodiodes are interdigitated to minim
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Input Voltage: 3V ~ 5V.
Best Detection Range: 10mm. Put the needle ( 2.54 mm). High-resolution conversion of light intensity to frequency. Chip pins all has drawn for standard 100. Mil-convenient for bitmap board. Programmable color and full-scale output frequency. Communicate directly with a microcontroller. Low-profile surface mount package.
Terminal Functions:
GND: Power supply ground. All voltages are referenced to GND.
OE 3: Enable for fo (active low).
OUT: O Output frequency ( fo).
S0,
S1: I Output frequency scaling selection inputs.
S2,
S3: I Photodiode type selection inputs.
VDD: Supply

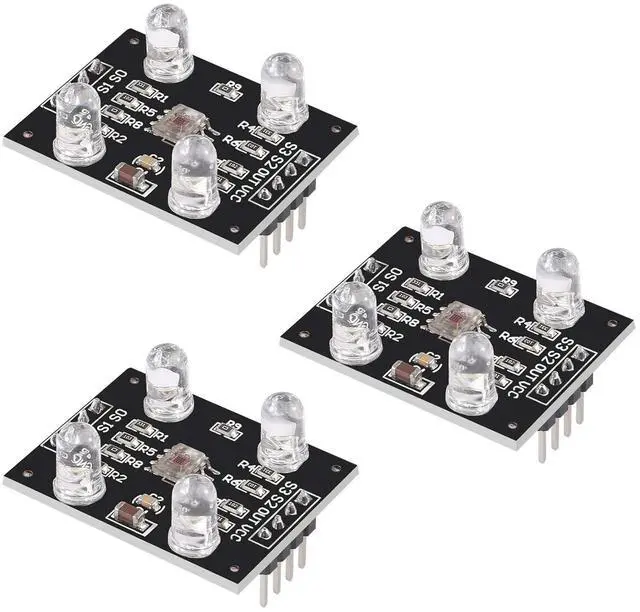

voltagePackage included: 3 X TCS3200 color recognition sensor module
Best Detection Range: 10mm. Put the needle ( 2.54 mm). High-resolution conversion of light intensity to frequency. Chip pins all has drawn for standard 100. Mil-convenient for bitmap board. Programmable color and full-scale output frequency. Communicate directly with a microcontroller. Low-profile surface mount package.
Terminal Functions:
GND: Power supply ground. All voltages are referenced to GND.
OE 3: Enable for fo (active low).
OUT: O Output frequency ( fo).
S0,
S1: I Output frequency scaling selection inputs.
S2,
S3: I Photodiode type selection inputs.
VDD: Supply
voltagePackage included: 3 X TCS3200 color recognition sensor module
