Main image of Orange Pi R2S 8GB RAM LPDDR4X with 8GB eMMC Flash RISC V 8 Core 2Tops Al Arithmetic Power Development Board, 2.5G High-Speed Dual LAN Ports Single Board Computer

Alt view image 2 of 5 - Orange Pi R2S 8GB RAM LPDDR4X with 8GB eMMC Flash RISC V 8 Core 2Tops Al Arithmetic Power Development Board, 2.5G High-Speed Dual LAN Ports Single Board Computer

Alt view image 3 of 5 - Orange Pi R2S 8GB RAM LPDDR4X with 8GB eMMC Flash RISC V 8 Core 2Tops Al Arithmetic Power Development Board, 2.5G High-Speed Dual LAN Ports Single Board Computer

Alt view image 4 of 5 - Orange Pi R2S 8GB RAM LPDDR4X with 8GB eMMC Flash RISC V 8 Core 2Tops Al Arithmetic Power Development Board, 2.5G High-Speed Dual LAN Ports Single Board Computer

Alt view image 5 of 5 - Orange Pi R2S 8GB RAM LPDDR4X with 8GB eMMC Flash RISC V 8 Core 2Tops Al Arithmetic Power Development Board, 2.5G High-Speed Dual LAN Ports Single Board Computer

Shop All BESIGN Products | Visit Kaipuda Store

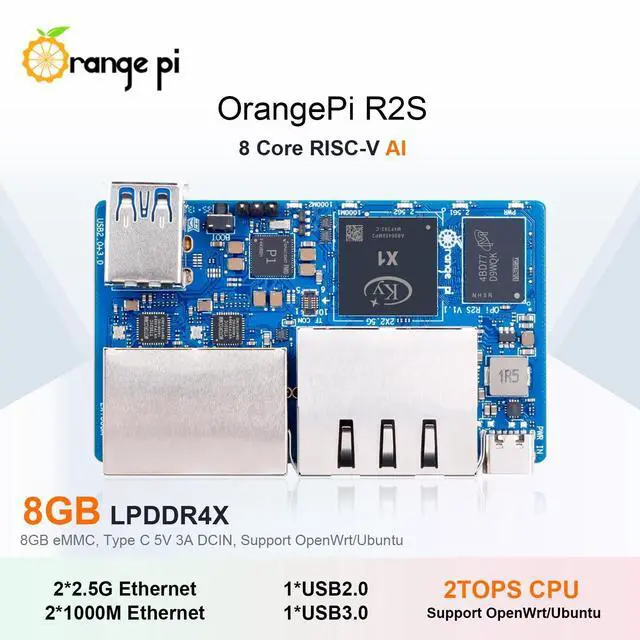

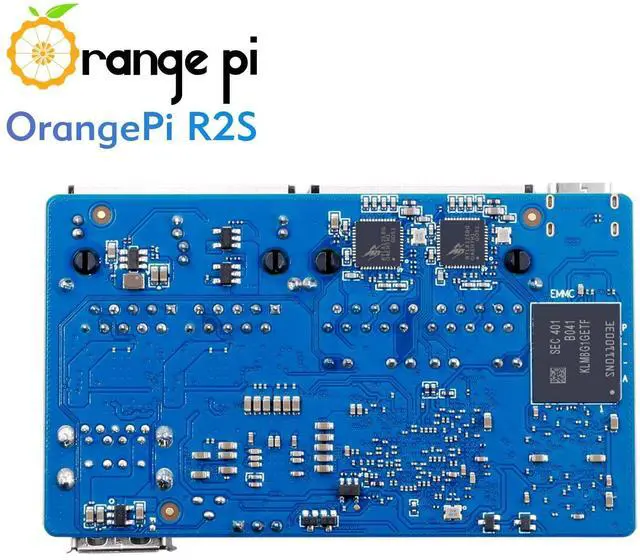

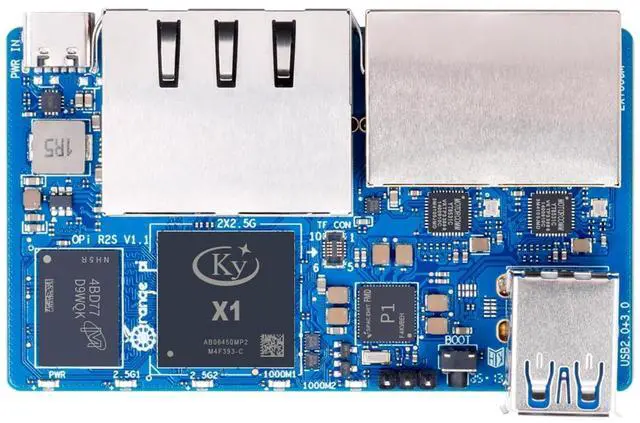

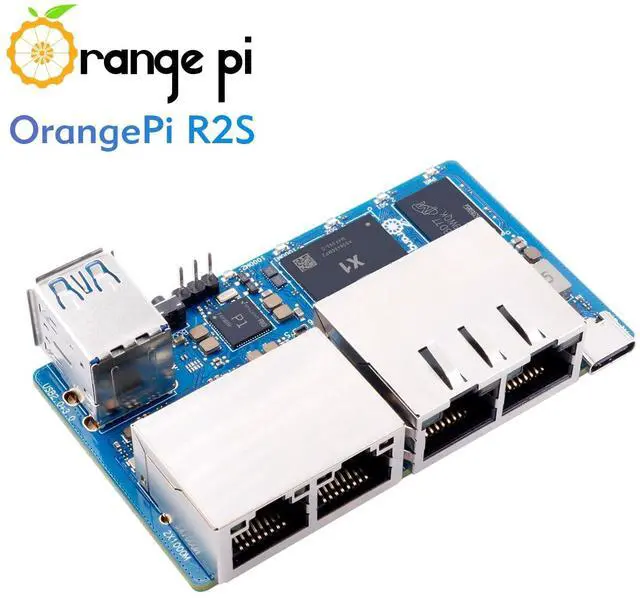

Orange Pi R2S 8GB RAM LPDDR4X with 8GB eMMC Flash RISC V 8 Core 2Tops Al Arithmetic Power Development Board, 2.5G High-Speed Dual LAN Ports Single Board Computer

High Performance RISC V AI - Orange Pi R2S is powered by Ky X1 8-core RISC-V AI CPU, providing 2TOPS CPU fusion of general-purpose arithmetic power. It has 2GB/4GB/8GB LPDDR4X operating memory, and supports 8GB eMMC .
Leading Arithmetic Energyefficiency - Provides 40K+ DMIPS CPU arithmetic and 2TOPS AI arithmetic, realizing dynamic balance between performance and power consumption. Providing AI arithmetic by CPU, realizing 2TOPS@INT8 AI capability without the need of independent NPU module, guaranteeing high efficiency and accuracy of data processing.
Rich Ports - The OrangePi R2S 8G features a wealth of interfaces, including 2.5G high-speed dual LAN ports, dual Gigabit LAN ports, USB2.0, USB3.0, Type-C power supply, TF card slot, debug serial port, and more.
2.5G High-speed Dual LAN Ports - With dual Gigabit network interfaces and two 2.5G Ethernet ports for faster data transfer speeds, whether it's office file transfers or HD video playback, it's smooth and unobstructed.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

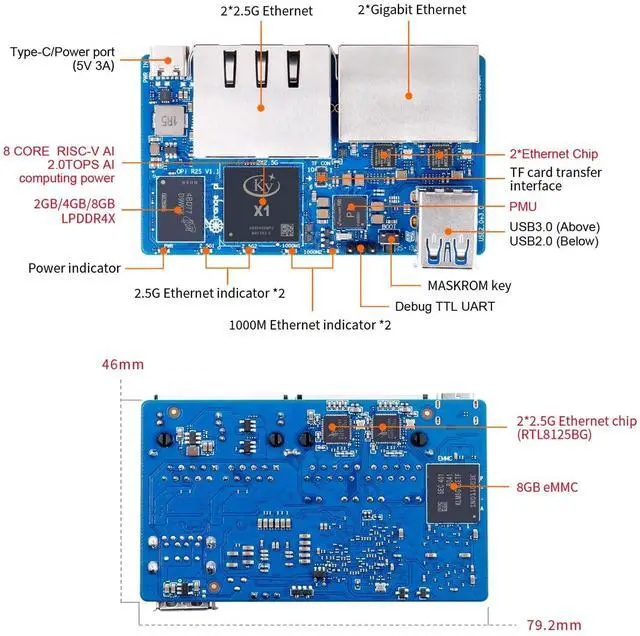

Hardware ParametersProcessor: Ky X1 8
Core RISC-V AI 2.0TOPSM emory:
LPDDR4X:
2GB/4GB/8GBStorage:
eMMC: 8GBEthernet
transceiver: 1000M Ethernet* 22.5G
Ethernet*2USB: USB 3.0 *1USB 2.0 *1 (can be used for software upgrade and burning software)
Buttons: MASKROM
key *1Status lights: Power indicator *11000M Ethernet indicator * 22.5G
Ethernet indicator *2TF card: TF
card transfer interfaceDEBUG: 3PIN debug serial port, 3.3V
levelPower supply: Type C 5V 3A
DCINPCB: 79.2 *46* 1.6 mmSupported
OS: OpenWrt, Ubuntu
