Ransanx 1PCS LCD Display 4.0 Inch 320x480 TN Capacitive Touch Screen Esp32 Display Module SPI Serial ST7796S Driver for Ar duino R3/Mega2560 (Black)

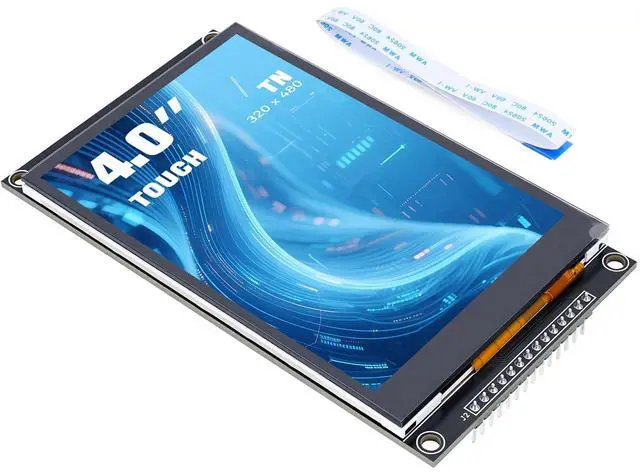

- LCD display parameters: 4.0-inch TN capacitive touch screen, resolution 320x480, 65K colors, rich display colors, brightness 300 (cd/m), display interface: 4-Line SPI
- ESP32 display module: using ST7796S driver, onboard level conversion circuit, compatible with 5V and 3.3V MCU; using four-wire SPI serial bus, saving I/O pins

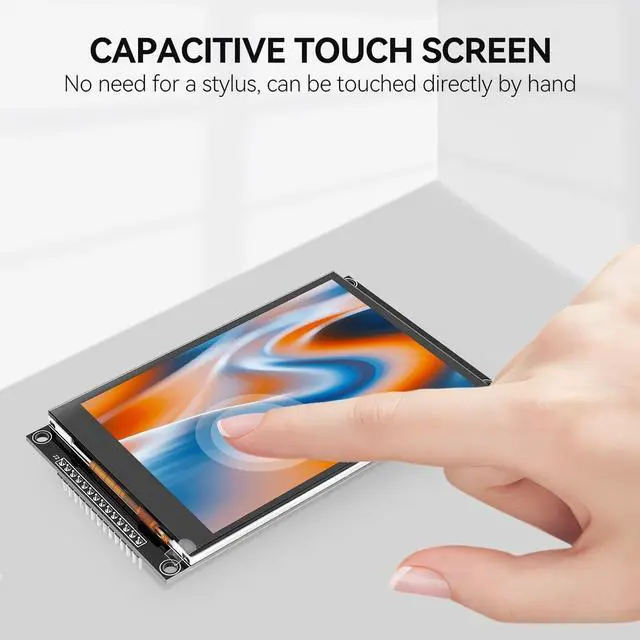

- Advantages: Newly upgraded to capacitive touch for Ar duino screen module. Compared with resistive screen, it is more convenient to use and more accurate to touch

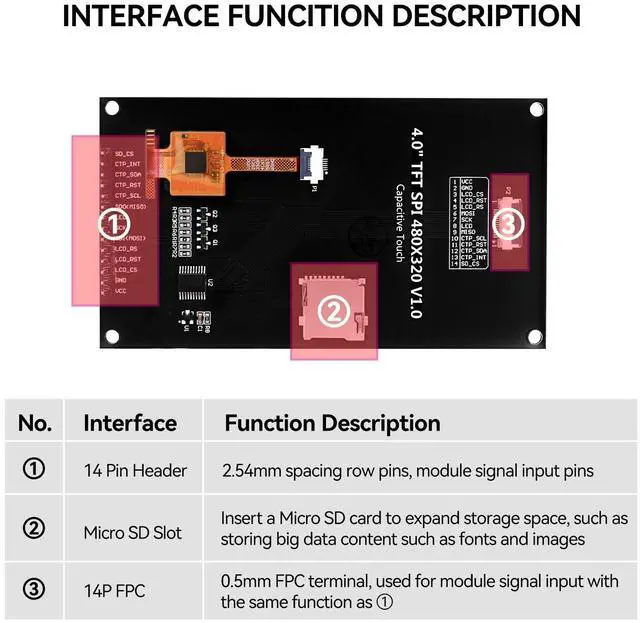

- Humanized design: The module input supports 2.54-pin interface and FPC expansion interface, equipped with Micro TF card slot for easy storage and expansion; provides rich example learning programs (ESP32/STM32/Ar duino R3 & Mage2560/C51/CH32), provides underlying driver technology support, online update information, and supports long-term stable work
- After-sales service: If you have any after-sales questions about the product, please contact us, we are online 24 hours a day, looking forward to
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Parameters: Screen
Size: 4.0 inchScreen
Type:
TNResolution: 320xRGBx480 (pixels)
Active Area (AA area): 55.68 (W) x 83.52 (H) (mm) Number of
Colors (Max): 16.7MD river
IC: ST7796SDisplay
Interface: 4-Line SPI
Pixel Size: 0.174 (H) x 0.174 (mm)
View Angle: 12 O'CLOCK
Brightness (TYP): 300(cd/m2)Backlight
Type: White
LED*8Operation Temperature: -10~50()Storage
Temperature: -20~60()Electrical ParametersWorking Voltage 5.0 V/ 3.3V (Recommended to connect to 5V) Backlight Current103 mAPower 0.5 WTouch
Screen Parameters: Touch
Active Area: 4.0 inchTouch
Screen Type: Capacitive Touch ScreenTouch
Screen Resolution: 320x480 (pixels)
Driver IC: FT6336UTouch
Screen Visual Area: 55.98 (W) x 83.82 (H) (mm) Communication Interface IIC
Operation Temperature: -20~70()Storage
Temperature: -30~80()Size
Parameters: TFT
Outline Size: 60.880. 2 (W) x 94.570. 2 (H) x 2.50. 1 (D) (mm) (Excluding cables and adhesive backing)
Touch Screen Outline Size: 60.880. 1 (W) x 94.570. 1 (H) x 1.35 (D) (mm) (Excluding cables and adhesive backing)
Module Outline Size: Have
Touch Screen: 60.88 (W) x 108.0 (H) x 14.80 (D) (mm) (including Pin Header) Other ParametersInterface14P 2.54 mm spacing Header and 0.5 mm spacing FPC seatPackage include1 x 4.0 touch screen1 x FPC cables1 x Plastic protective box
Size: 4.0 inchScreen
Type:
TNResolution: 320xRGBx480 (pixels)
Active Area (AA area): 55.68 (W) x 83.52 (H) (mm) Number of
Colors (Max): 16.7MD river
IC: ST7796SDisplay
Interface: 4-Line SPI
Pixel Size: 0.174 (H) x 0.174 (mm)
View Angle: 12 O'CLOCK
Brightness (TYP): 300(cd/m2)Backlight
Type: White
LED*8Operation Temperature: -10~50()Storage
Temperature: -20~60()Electrical ParametersWorking Voltage 5.0 V/ 3.3V (Recommended to connect to 5V) Backlight Current103 mAPower 0.5 WTouch
Screen Parameters: Touch
Active Area: 4.0 inchTouch
Screen Type: Capacitive Touch ScreenTouch
Screen Resolution: 320x480 (pixels)
Driver IC: FT6336UTouch
Screen Visual Area: 55.98 (W) x 83.82 (H) (mm) Communication Interface IIC
Operation Temperature: -20~70()Storage
Temperature: -30~80()Size
Parameters: TFT
Outline Size: 60.880. 2 (W) x 94.570. 2 (H) x 2.50. 1 (D) (mm) (Excluding cables and adhesive backing)
Touch Screen Outline Size: 60.880. 1 (W) x 94.570. 1 (H) x 1.35 (D) (mm) (Excluding cables and adhesive backing)
Module Outline Size: Have
Touch Screen: 60.88 (W) x 108.0 (H) x 14.80 (D) (mm) (including Pin Header) Other ParametersInterface14P 2.54 mm spacing Header and 0.5 mm spacing FPC seatPackage include1 x 4.0 touch screen1 x FPC cables1 x Plastic protective box
