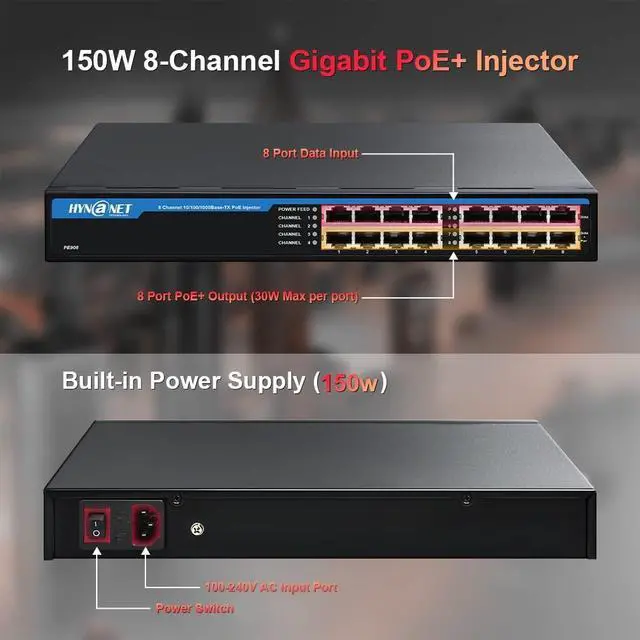

HYN@NET 8 Port Active Gigabit PoE Injector IEEE802.3at/af Compliant,150W PoE Midspan,1U 19 Rackmount
- PoE Budget: Built-in 150W Power Supply ,single port output power of 30w Max for PoE Cameras, Access Points, VOIP Phones up to 328 feet away.

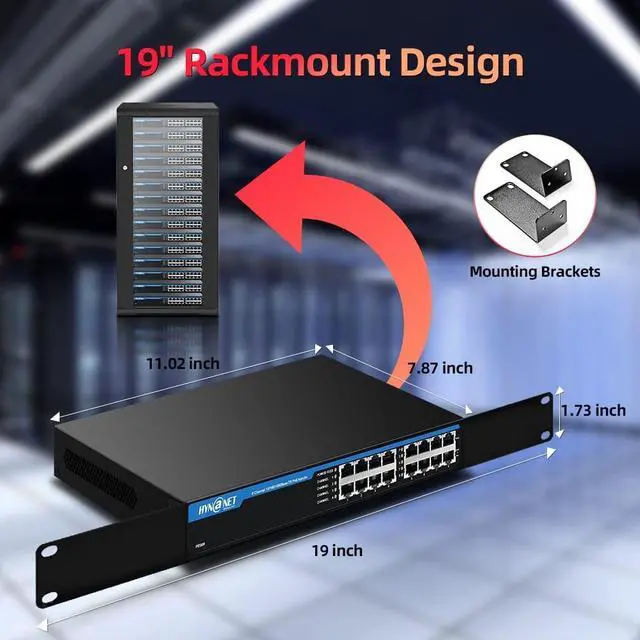

- 1U 19-inch Rackmount Installtion: Acessories include 2pcs Mounting Brackets ,6pcs Screws, 4pcs Rubber feet .
- Gigabit Data Speed: Transmit data with no loss of signal quality via 8 data input ports and 8 PoE+ output ports at 10/100/1000Mbps.
- Industrial-grade Fan Design: Noiseless fan and heat-dissipation alumunium module enable it could operate in various harsh environments.
- Active Auto-negotiation: Fully Comply with IEEE 802.3af/IEEE 802.3at,Plug and Play,add PoE to your network switch and not let your non-PoE devices under the risk of damaging.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

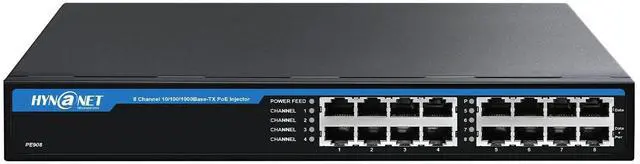

The PE908 is a 150w 8 port

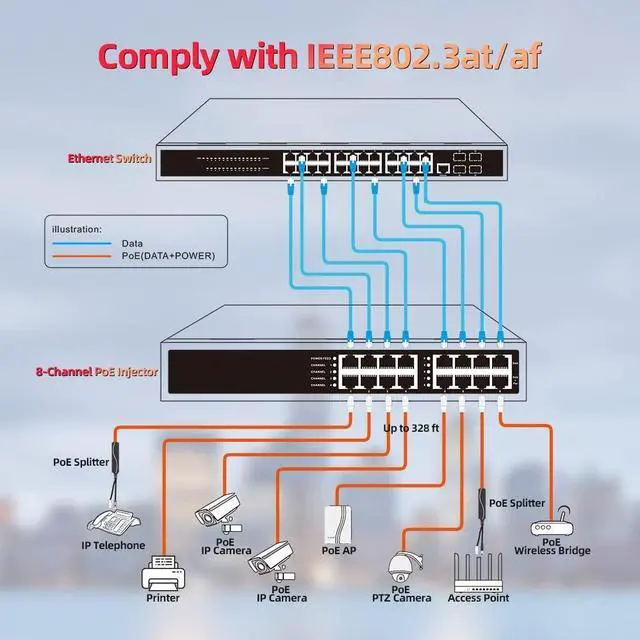

Gigabit Unmanaged PoE+ injector: 1. Offer a compact and cost effective, fully IEEE 802.3 at compliant solution for remote powering of LAN (WAN) access points, IP Security cameras, VoIP telephone and other low port density installations. 2. Eliminate the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.
Feature: -No.
of PoE Ports: 8-Output
Power Voltage: 52V DC.
-User Port Power: 30W.
-Total Available Power: 150W.
-Pass Through Data Rates: 10/100/1000 Mbps.
-Pin Assignment and Polarity: 1/2 (-), 3/6 (+).
-AC Input Voltage: 100 to 240 V AC.
-AC Input Current: 1.3A at 110 V AC.
-AC Frequency: 50 to 60 Hz.
-Dimensions: 270mmx180mmx44mm.
-Operating Ambient Temperature: -10 to 45.
-Operating Humidity: Maximum 90%, Non-condensing.
-Storage Temperature: -20 to 70.
-Storage Humidity: Maximum 95%, Non-condensing.
-Regulatory Compliance: IEEE 802.3 af (PoE), IEEE 802.3 at (PoE+). -RoHS Compliant, CE, FCC.
Gigabit Unmanaged PoE+ injector: 1. Offer a compact and cost effective, fully IEEE 802.3 at compliant solution for remote powering of LAN (WAN) access points, IP Security cameras, VoIP telephone and other low port density installations. 2. Eliminate the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.
Feature: -No.
of PoE Ports: 8-Output
Power Voltage: 52V DC.
-User Port Power: 30W.
-Total Available Power: 150W.
-Pass Through Data Rates: 10/100/1000 Mbps.
-Pin Assignment and Polarity: 1/2 (-), 3/6 (+).
-AC Input Voltage: 100 to 240 V AC.
-AC Input Current: 1.3A at 110 V AC.
-AC Frequency: 50 to 60 Hz.
-Dimensions: 270mmx180mmx44mm.
-Operating Ambient Temperature: -10 to 45.
-Operating Humidity: Maximum 90%, Non-condensing.
-Storage Temperature: -20 to 70.
-Storage Humidity: Maximum 95%, Non-condensing.
-Regulatory Compliance: IEEE 802.3 af (PoE), IEEE 802.3 at (PoE+). -RoHS Compliant, CE, FCC.
