ACEIRMC W5500 SPI to LAN Ethernet Network Module TCP IP STM32 Interface 3.3V 5V for Arduino WIZ820io RC5 (5pcs)
- Power supply mode:3.3V external power supply, current should be more than 200mA;
- USR-ES1 is the Ethernet module of a SPI interface, interface is TTL level of 3.3V, power supply voltage of +3.3V, please ensure that the current is not less than 200mA, voltage is continuous and stable +3.3V.
- W5500 SPI to LAN Ethernet Network Module TCP IP STM32 Interface 3.3V 5V for Arduino WIZ820io RC5

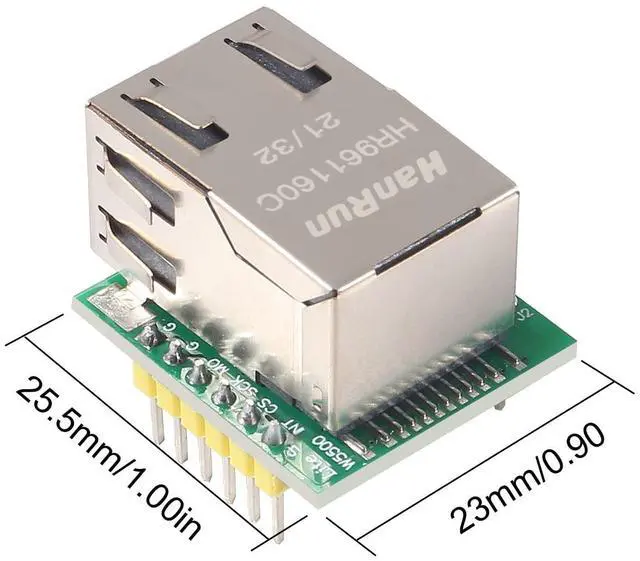

- PCB size:23 * 25 mm
- Control interface:The TTL level, 3.3V SPI interface;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Descriptions: USR-ES1 is the Ethernet module of a SPI interface, interface is TTL level of 3.3V, power supply voltage of + 3.3V, please ensure that the current is not less than 200mA, voltage is continuous and stable + 3.3V.
Function features: High speed SPI interface 80MHzHardware-TCPIP-protocol stack user built in, almost without understanding the complex network protocol knowledgeSupports up to 8 SocketSupport TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocolIntegration of the data link layer, physical layerSupport the wakeupSupport high speed serial peripheral interface (SPI model 0, 3)Internal 32K bytes receive bufferThe embedded 10BaseT/100BaseTX Ethernet physical layer (PHY) Support auto negotiation (10/100-Based full duplex or half duplex)Does not support the IP patchThe working voltage of 3.3V, I/O and 5V voltage signalLED display (full duplex or half duplex, network connection, network speed, active)Pin type package ultra small, convenient for embedded applicationsApplication of C sample projectPackage
Include: 1* W5500 SPI to LAN Ethernet Network Module
Function features: High speed SPI interface 80MHzHardware-TCPIP-protocol stack user built in, almost without understanding the complex network protocol knowledgeSupports up to 8 SocketSupport TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocolIntegration of the data link layer, physical layerSupport the wakeupSupport high speed serial peripheral interface (SPI model 0, 3)Internal 32K bytes receive bufferThe embedded 10BaseT/100BaseTX Ethernet physical layer (PHY) Support auto negotiation (10/100-Based full duplex or half duplex)Does not support the IP patchThe working voltage of 3.3V, I/O and 5V voltage signalLED display (full duplex or half duplex, network connection, network speed, active)Pin type package ultra small, convenient for embedded applicationsApplication of C sample projectPackage
Include: 1* W5500 SPI to LAN Ethernet Network Module
