Industrial 5-Port Gigabit Passive PoE Switch, Support DC12V-24V to DC24V PoE, 424V/18w PoE Ports, Heavy Metal Case, DIN Rail Mount, Compact IP40, Ideal for Solar Power/RV Truck/VoIP Systems

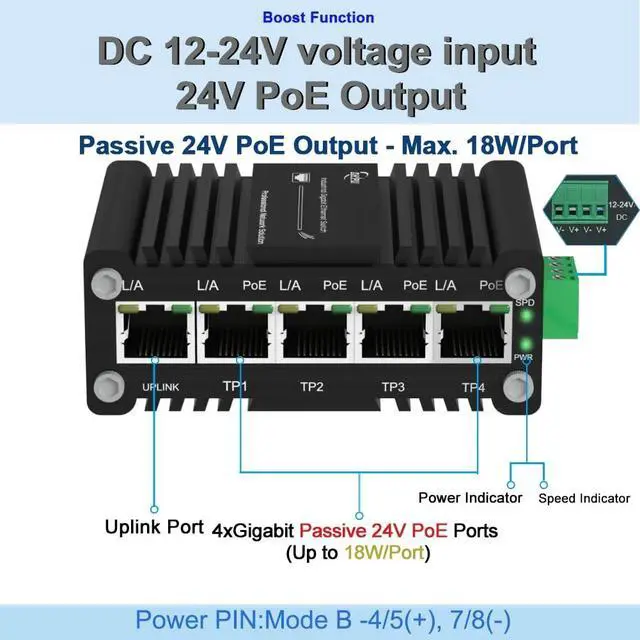

- 24V Passive PoE Switch : Supports DC12V-24V input and 24V Passive PoE output with a built-in voltage booster. utilizing Mode B wiring (4,5+; 7,8-). (Note: Only supports 24V Passive PoE Mode B.)
- 5-Port Gigabit PoE Switch Configuration : Equipped with 4 Gigabit PoE ports (10/100/1000Mbps) delivering up to 18W per port, plus 1 Gigabit uplink port. All ports support auto-negotiation and full-duplex mode, with a total PoE power budget of 72W.
- Industrial-Grade Robust Design : Features an IP40-rated metal housing, operates in a wide temperature range of -40C to 80C, and supports DIN rail mounting for deployment in harsh industrial environments.

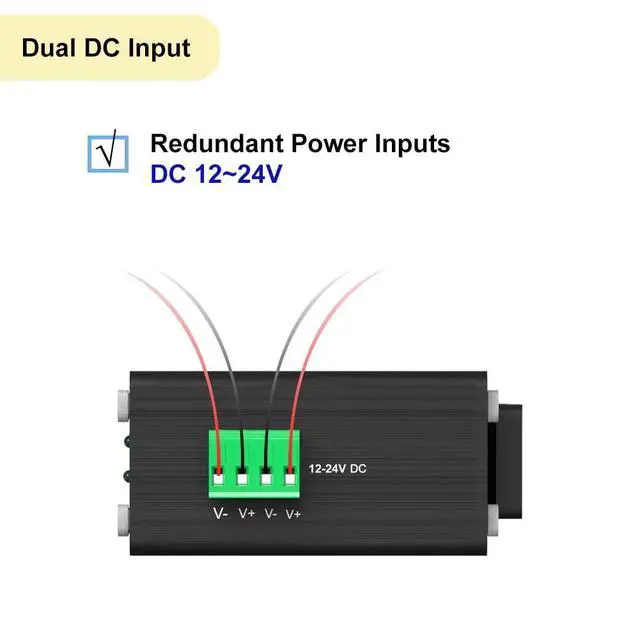

- High-Reliability Dual Power Input : Dual 12-24V DC redundant power inputs with automatic failover ensure uninterrupted operation in critical applications. Compatible only with 24V Passive PoE Mode B.
- Applications : Ideal for 24V passive PoE devices in solar power systems (12V/18V input), vehicle/RV systems (12V input), and industrial networ
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
24V Passive
PoE Switch: Supports DC12V-24V input and 24V Passive PoE output with a built-in voltage booster. utilizing Mode B wiring (4, 5+; 7, 8-).
(Note: Only supports 24V Passive PoE Mode B. ) ^^ 5-Port Gigabit
PoE Switch Configuration: Equipped with 4 Gigabit PoE ports (10/100/1000Mbps) delivering up to 18W per port, plus 1 Gigabit uplink port. All ports support auto-negotiation and full-duplex mode, with a total PoE power budget of 72W.
^^ Industrial-Grade Robust Design: Features an IP40-rated metal housing, operates in a wide temperature range of -40C to 80C, and supports DIN rail mounting for deployment in harsh industrial environments. ^^ High-Reliability Dual
Power Input: Dual 12-24V DC redundant power inputs with automatic failover ensure uninterrupted operation in critical applications. Compatible only with 24V Passive PoE Mode B.

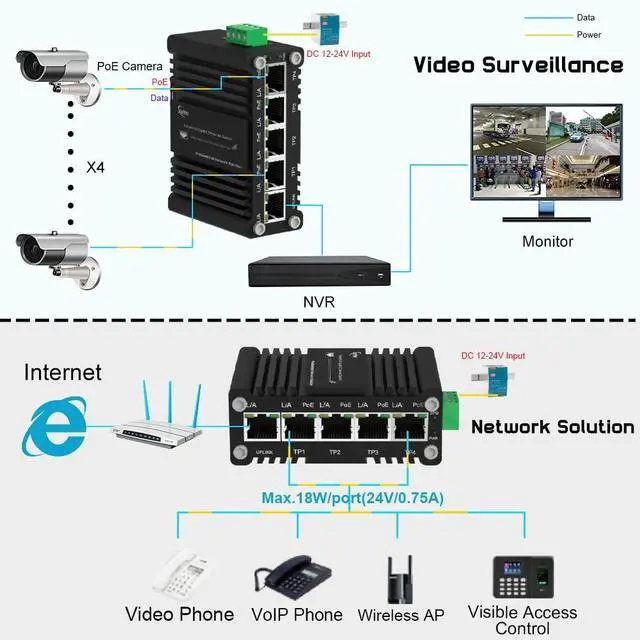

^^ Applications: Ideal for 24V passive PoE devices in solar power systems (12V/18V input), vehicle/RV systems (12V input), and industrial networks (24V input).
PoE Switch: Supports DC12V-24V input and 24V Passive PoE output with a built-in voltage booster. utilizing Mode B wiring (4, 5+; 7, 8-).
(Note: Only supports 24V Passive PoE Mode B. ) ^^ 5-Port Gigabit
PoE Switch Configuration: Equipped with 4 Gigabit PoE ports (10/100/1000Mbps) delivering up to 18W per port, plus 1 Gigabit uplink port. All ports support auto-negotiation and full-duplex mode, with a total PoE power budget of 72W.
^^ Industrial-Grade Robust Design: Features an IP40-rated metal housing, operates in a wide temperature range of -40C to 80C, and supports DIN rail mounting for deployment in harsh industrial environments. ^^ High-Reliability Dual
Power Input: Dual 12-24V DC redundant power inputs with automatic failover ensure uninterrupted operation in critical applications. Compatible only with 24V Passive PoE Mode B.
^^ Applications: Ideal for 24V passive PoE devices in solar power systems (12V/18V input), vehicle/RV systems (12V input), and industrial networks (24V input).
