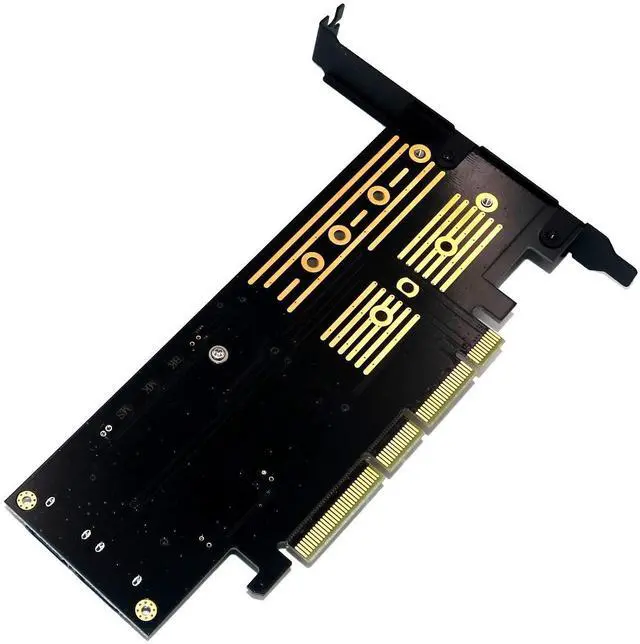

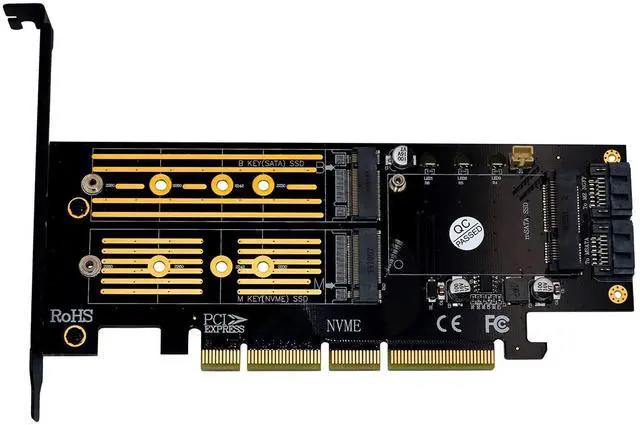

Dual M.2 SSD NVME (m Key) or SATA (b Key) to PCI-e 3.0 x 4 Host Controller Expansion Card with Low Profile Bracket and Heatsink for Desktop

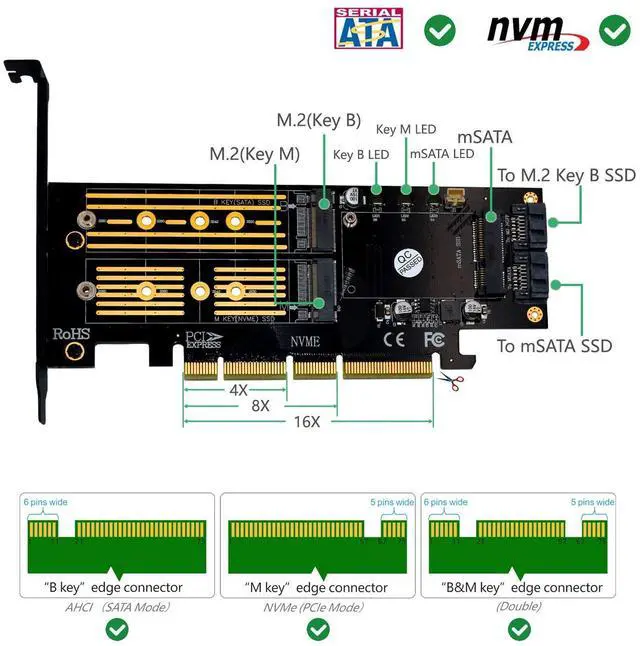

Features: Supports one M. 2PCIe (NVMe or AHCI) SSD and one M. 2 SATA 6Gbps SSD simultaneously Supports PCIEM. 2 SSD (NVMe or AHCI, Key-M), PCIE 3.0 X4 32 Gbps bandwidth SupportsSATA-based M. 2 SSD (Key-B / B+M), SATA 6 Gbps bandwidth Supports PCIe Gen3 and PCIe Gen2 M. 2 NGFF 110mm, 80mm, 60mm, 42mm, 30mm SSD Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard Supports any OS like Windows, Mac and Linux PCB 24 X 5copper hole effective ventilation heat dissipation, Including 2 heat sinks Transparent tothe operating system and no driver required Compliant with39Gbps PCI Express 3.0

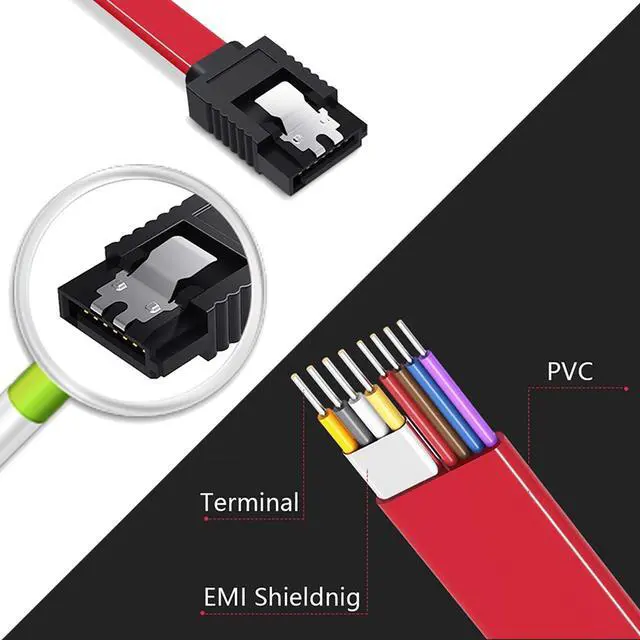

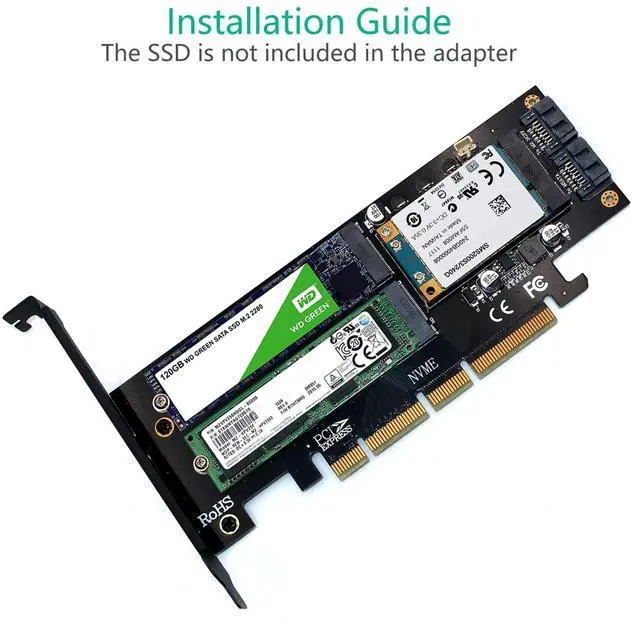

NOTE: You are kindly reminded that the 7-pin SATA cable must be connectedto motherboard if you want to read the M. 2 SATA SSD (Key B). (SATA Cable Has Been Included) You are kindly reminded that this adapter only support PCIe X4 X8X16 slot. DO NOT support PCIe X1 slot. Package list- M. 2 to PCIExpress Adapter Card x1- Regular/Low Profile PCIe Bracket x2- Aluminum Heatsink x2- Heatconducting silica gel pad x2- SATA Cable x1- Screwdriver x1- Screw kit x1
