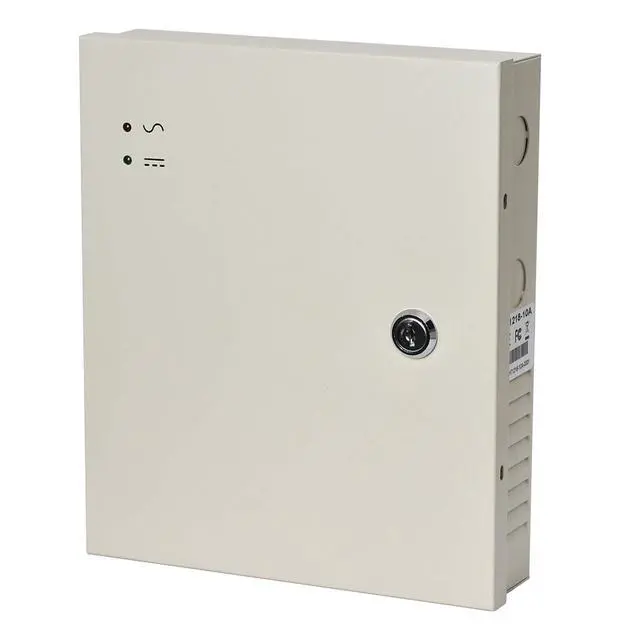

Main image of EVERSECU 18 Channel AC 24V 10 Amp Reset Fuse CCTV AC Distributed Power Box with AC Plug and Lock for Security Cameras, DVRs, CCTV Power Supply

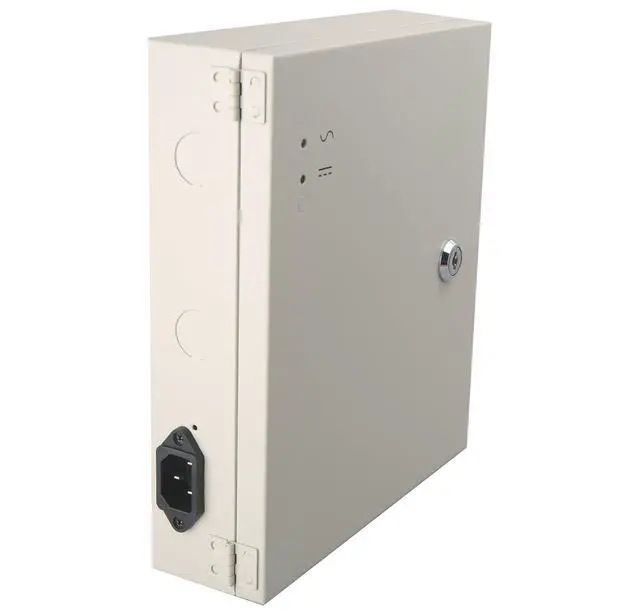

Alt view image 2 of 3 - EVERSECU 18 Channel AC 24V 10 Amp Reset Fuse CCTV AC Distributed Power Box with AC Plug and Lock for Security Cameras, DVRs, CCTV Power Supply

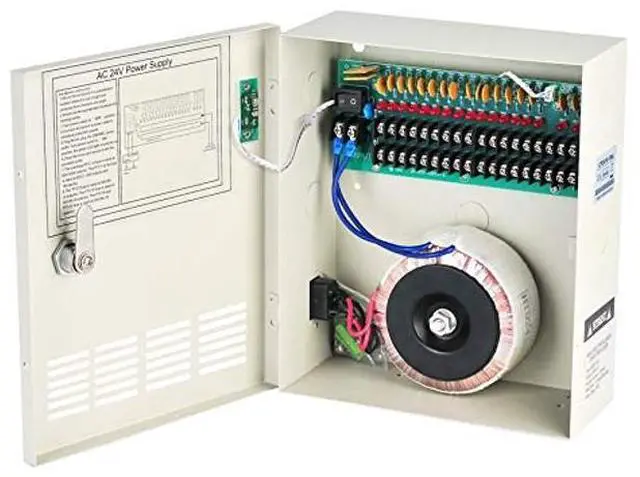

Alt view image 3 of 3 - EVERSECU 18 Channel AC 24V 10 Amp Reset Fuse CCTV AC Distributed Power Box with AC Plug and Lock for Security Cameras, DVRs, CCTV Power Supply

Shop All BESIGN Products | Visit UsaLogic Store

EVERSECU 18 Channel AC 24V 10 Amp Reset Fuse CCTV AC Distributed Power Box with AC Plug and Lock for Security Cameras, DVRs, CCTV Power Supply

Input: 100-240VAC; Output: 24V AC ; Supply Current: 10Amp; Max. Amp: 2Amp/Channel; AC24V Regulator CCTV Power Supply Box, 18 Outputs with PTC Fuse
General protection: each output has independent PTC fuse and LED indicator, Lightning Protection, Life Time 100000 hours, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close. High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
New Metal housing, Compressive, Wear-resisting Reinforcement Enclosure Structure,Use more Safety and Convenience, Lock with keys and AC Plug are included

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Features General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. Application CCTV Camera, PTZ, IR Illuminator, Video Processor Access Control, etc.
Specfication:
Model: CP2418-10AInput
Voltage: AC 110V or 220V, 60Hz or 50HzOutput
Voltage: AC24VTotal
Output Current: 10ATotal
Output Channel: 18CHFuse
type: PTC
ResettableFuse Rating: 1.1AE
fficiency: >=70%Storage
Temperature: -4085Operating
Temperature: -2060Product
Net Weight: 3.79 kgProduct
Dimension: 206.4 * 242.3 * 84.8 mmPackage
Dimension:
213*252*94mmCertificate: CE, FCC
Warranty: 2 Year
