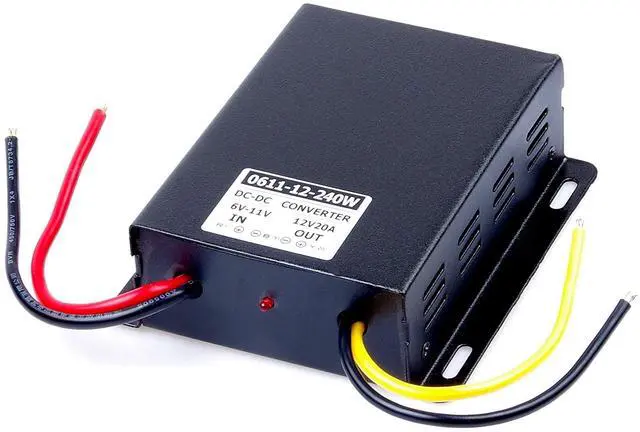

KNACRO Boost Converter DC-DC Step Up Voltage Converter 20A Power Supply Regulator Module 6V 7V 8V 9V 10V 11V 6V-11V to 12V 20A 240W for LED Lighting Electric Fan(240W)
- High-performance chips, synchronous rectification technology, high conversion rate of up to 93%, low heat, stable and reliable.
- Multiple protection: overcurrent protection, thermal protection, instantly absorb high-voltage protection. (Note: No reverse polarity protection, no short circuit protection, wiring carefully, otherwise it may damage the power supply.).
- Shape, weight and wiring: weight of about 370g each.

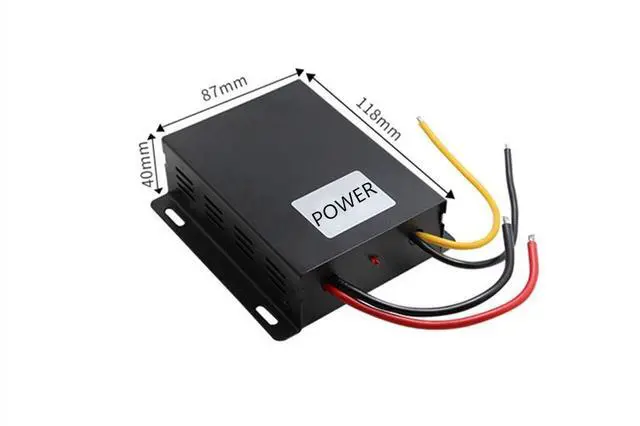

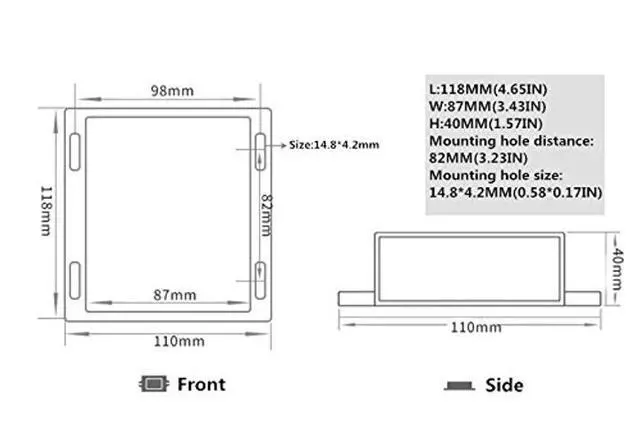

- Volume Specifications: 118 * 87 * 40mm (L * W * H).
- Wiring: Input: red positive, black negative. Outputs: yellow line positive, black negative.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Input voltage: DC Wide voltage 6-11V.
Output voltage: DC 12V.
Output Current: 20A.
Output Power: 240W.
Conversion efficiency: 93%.
Installation length: 13-14CM.
Operating temperature: -40 to + 85 Industrial grade.
Power consumption: 25MA. Weight 370g.
Volume

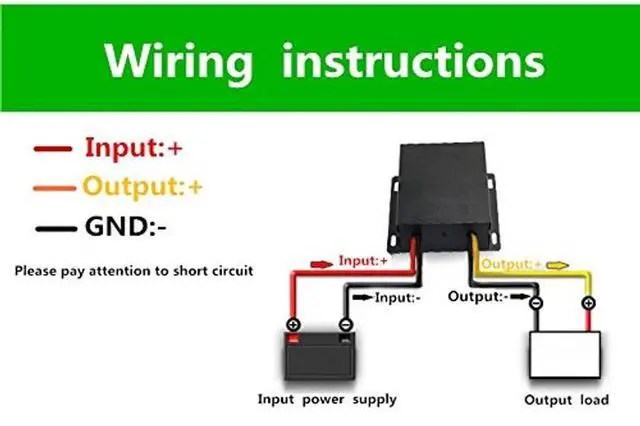

Wiring:
Input: red positive, black negative.
Outputs: yellow line positive, black negative.
Protection: overcurrent protection, thermal protection, instantly absorb high-voltage protection.
Voltage range: car audio, walkie-talkie to monitor, LED display, special buggies, LCD TV, electric fans, solar power, photovoltaic panels, motors, and electrical and other industrial equipment.
Output voltage: DC 12V.
Output Current: 20A.
Output Power: 240W.
Conversion efficiency: 93%.
Installation length: 13-14CM.
Operating temperature: -40 to + 85 Industrial grade.
Power consumption: 25MA. Weight 370g.
Volume
Specifications
: 118 * 87 * 40mm (L * W * H).Wiring:
Input: red positive, black negative.
Outputs: yellow line positive, black negative.
Protection: overcurrent protection, thermal protection, instantly absorb high-voltage protection.
Voltage range: car audio, walkie-talkie to monitor, LED display, special buggies, LCD TV, electric fans, solar power, photovoltaic panels, motors, and electrical and other industrial equipment.
