$56.99
Meet Your Seller

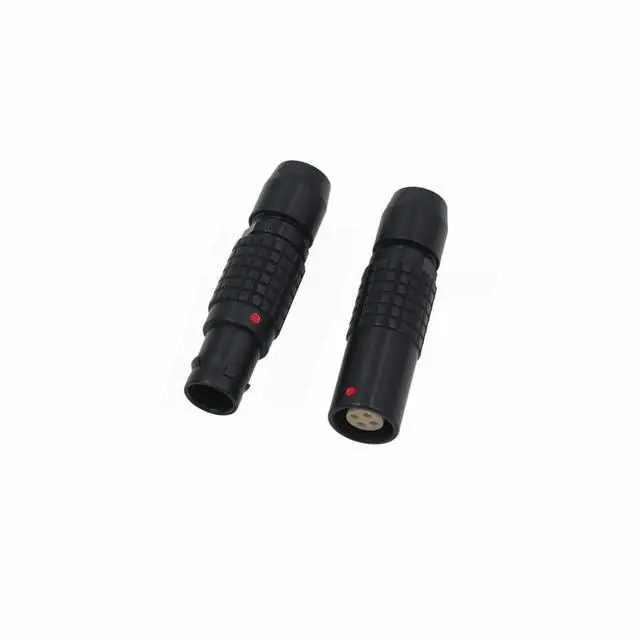

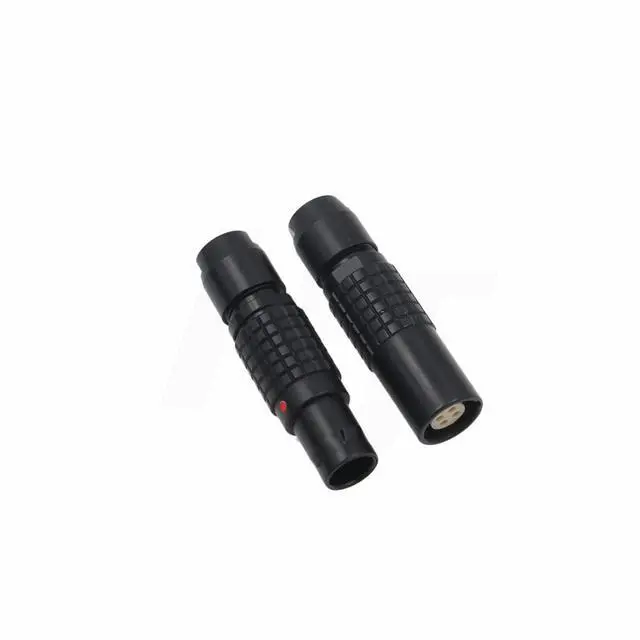

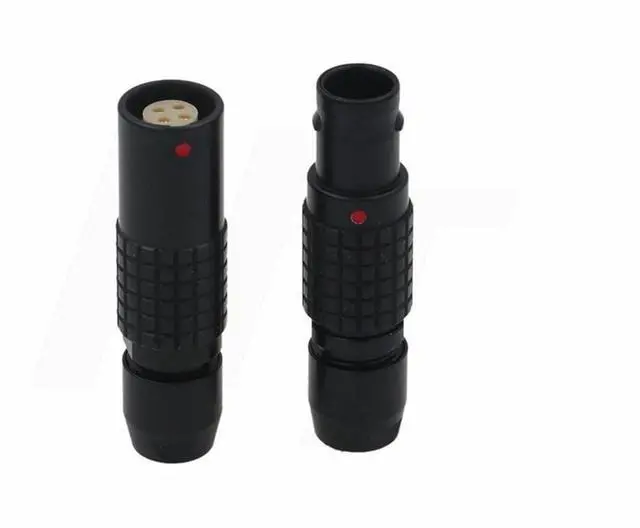

HangTon Black 1B FGG PHG 304 4 Pin Connector Male Female Circular Push Pull Free Socket and Cable Plug Compatible for Lemo (4-pin, Black)
- Black 4 pin male female connector, compatible for 1B.PHG.304 and 1B.FGG.304
- Connector contact diameter 0.9mm. Cable wire size 22AWG max. Rated current 10A
- Cable collet size default is 5mm, if you need other sizes, please message me before order(if your cable wire diameter is too small, the collet can't grasp the cable tightly)
- Circular aviation push-pull self-locking connector. Quick connect, female contacts, cable solder connector
- Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1B FGG PHG connectors.
Number of Contacts: 2 3 4 5 6 7 8 10 12 14 16Wire diameter max:
2-3pin: 20AWG
; 4-8pole: 22AWG
; 10-16pin: 28AWG
Cable Outer Diameter Range: 3mm-7mmProtection
Rating: IP50Shell
Material: Brass chrome platedContact
Material: Brass
gold platedTermination: SolderMating
Cycle: >4000 timesTemperature
Range: -45~+125We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / blue / golden / white anodized).
Number of Contacts: 2 3 4 5 6 7 8 10 12 14 16Wire diameter max:
2-3pin: 20AWG
; 4-8pole: 22AWG
; 10-16pin: 28AWG
Cable Outer Diameter Range: 3mm-7mmProtection
Rating: IP50Shell
Material: Brass chrome platedContact
Material: Brass
gold platedTermination: SolderMating
Cycle: >4000 timesTemperature
Range: -45~+125We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / blue / golden / white anodized).
