KOHNEASO Compatible for Ford Transit 150 2015-2020, Transit 250 2015-2020, Transit 350/350 HD 2015-2020350HD L4H3 Brake Light Backup Camera with 7 inch Clip-on Mirror Monitor (Transit Van)

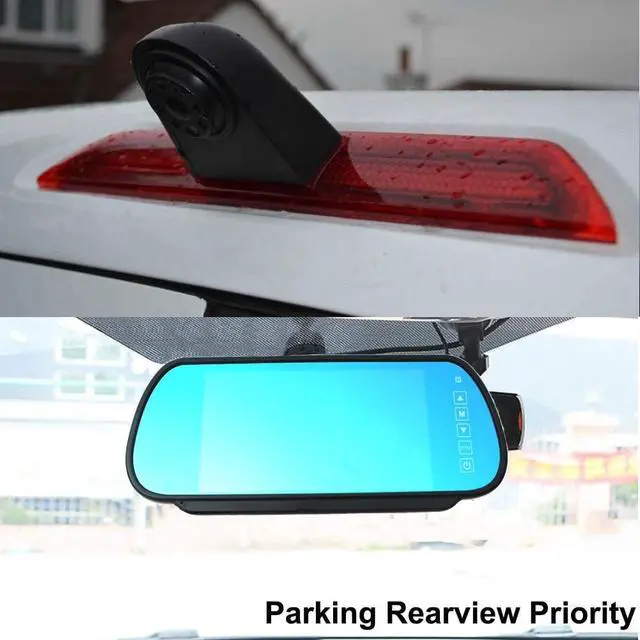

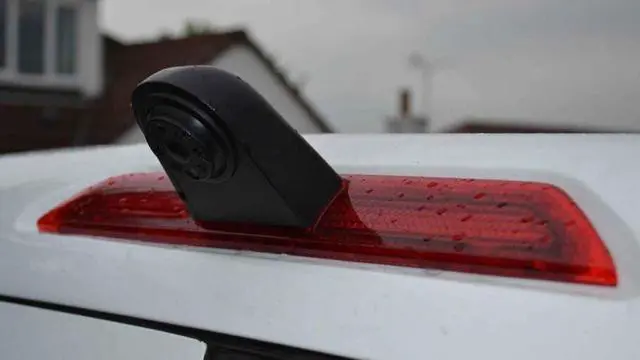

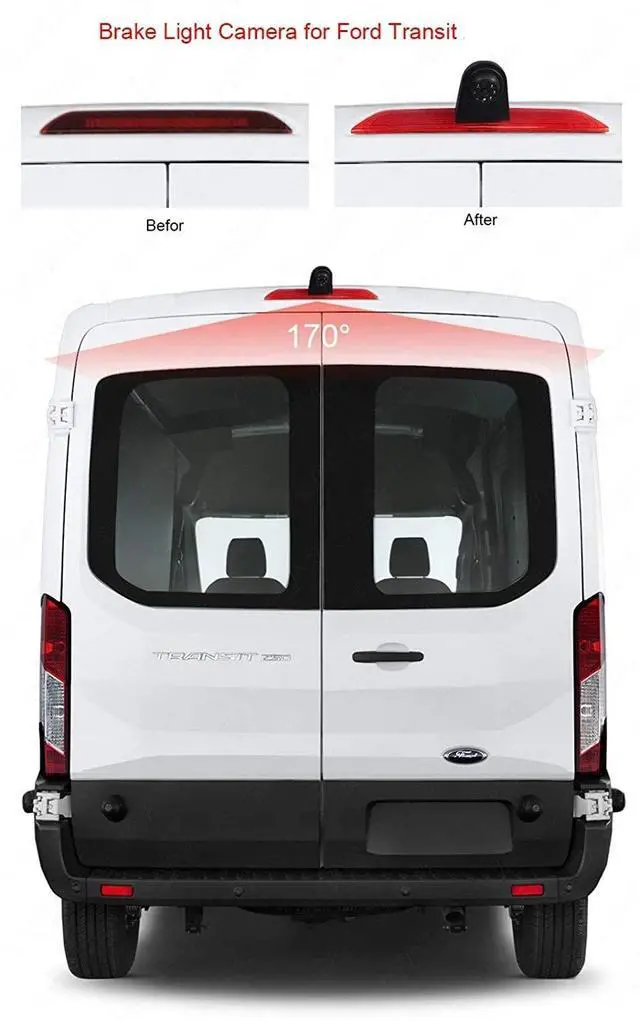

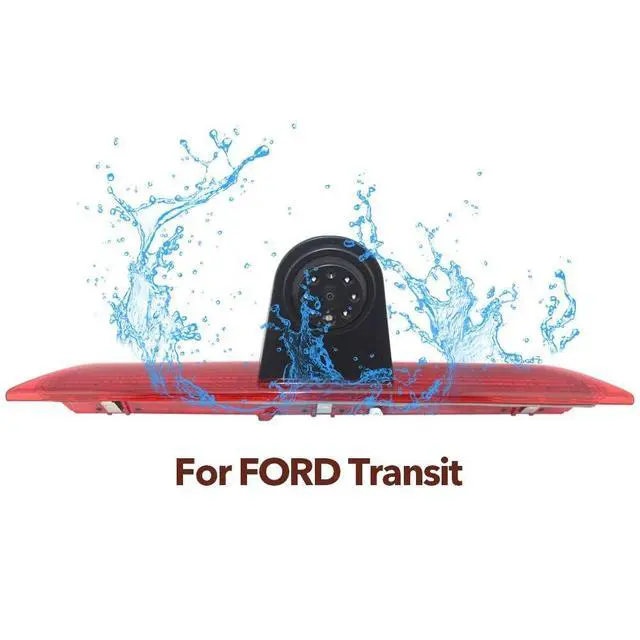

Backup camera is designed to completely replace the vans third brake light. When installed, this backup camera looks factory-fitted, as though it came with the van originally.
Application: Ford Tourneo 2014-nowFord Tourneo Custom 2012-nowFord Transit2014-nowFord Transit Custom 2012-NowCamera
Specification: Image
sensor: 1/3 Color CMOS
Resolution: 756 (H) X 504 (V)
TV line: 600TV linesTV
System: NTSC
Lens: 2.5
mmMin illumination: 0Lux (LED
ON) Viewing angle: 170Operation Temp.: -20~+70White
Balance: Auto7inch Clip-on
Monitor Specification: Monitor
size: 7 inch (800 X 480)
Contrast: 16:9
TV System: PAL/NTSC
Video input:
AV1/AV2Power:
DC12V-24VBrightness: 400cd/Installation

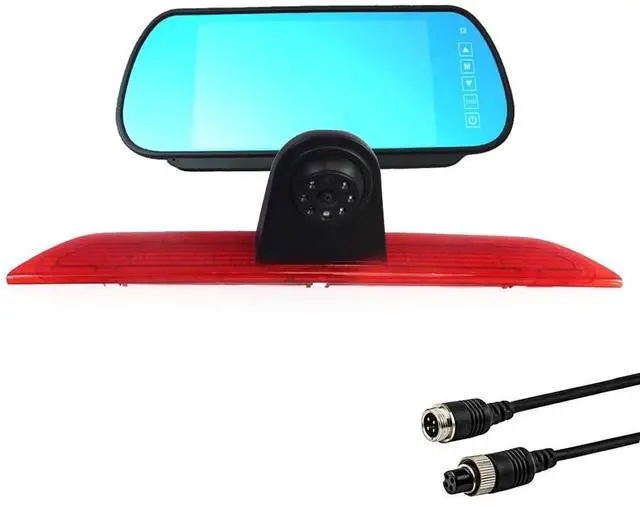

way: Clip on your exist rear mirror (If you car doesn't install rear mirror, please chose stand monitor)In The Box1 * Rear mirror monitor1* Backup Camera1*10M Extension Cable1*Power Cable1 * Manual1. How to wire it? It is very easy for wiring.
Backup camera wiring: The camera is 4PIN plug, please connect it directly to AV input wiring of monitor power cable.
Rear view monitor wiring: Red wire for power source, green wire for reverse, black for ground. 2. Is it ok if I want this rear view camera to always be on? Yes, if you want the camera to always be on, you can connect it to a constant 12V/24V power source such as accessory socket (cigarette lighter) that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights.
