3x3 HDMI Video Wall Controller DVI TV Wall Processor with Audio 1080P 60Hz 2x2 2x3 2x4 1x3 1x4 1x5 TV Wall 9 Screen Video Wall Stitching Processor TV Splicing Box 180 Degree Rotate
- AA:Support HDMI and DVI two-way signal input free choice: support 2-way signal input 9-way HDMI signal output, all the way DVI all the way HDMI signal input, free to switch the output signal.
- BB: audio separation audio independent output: audio separation technology, improve the quality of the audio signal, 3.5mm stereo / fiber optic audio, two signals at the same time the output of independent audio output, to bring users a better listening experience.
- CC: Remote control / press Kin / RS232: a variety of control methods, remote control can also be manually keyed and controlled through the RS232 serial port, signal switching, by your control. Compatible devices plug and play: support set-top boxes, desktops, laptops and other devices with HDMI interface to connect the TV, monitor, projector and other display devices with HDMI interface.
- DD: safety protection and high efficiency: anti-static technology to prevent damage to electronic components caused by static electricity. Ant
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

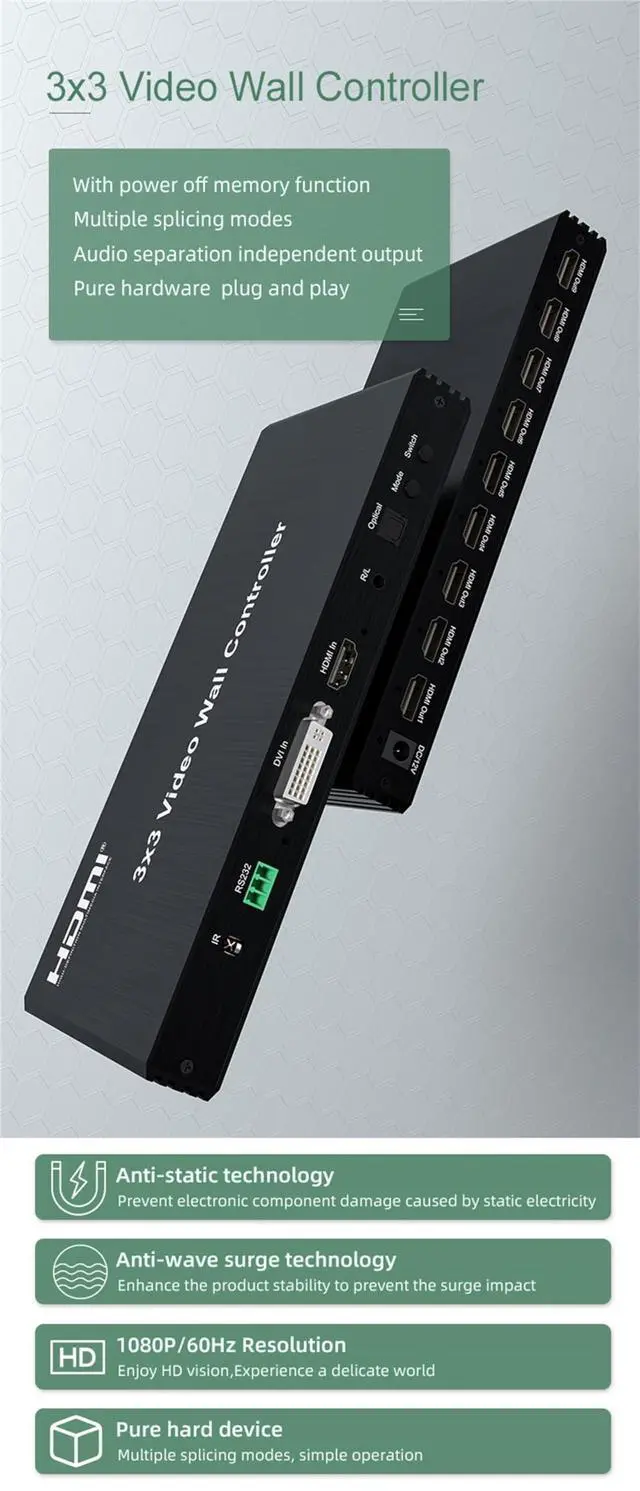

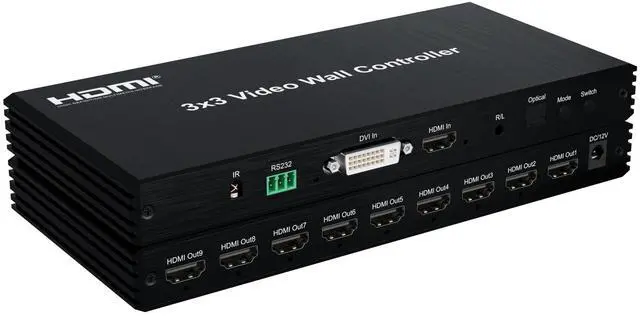

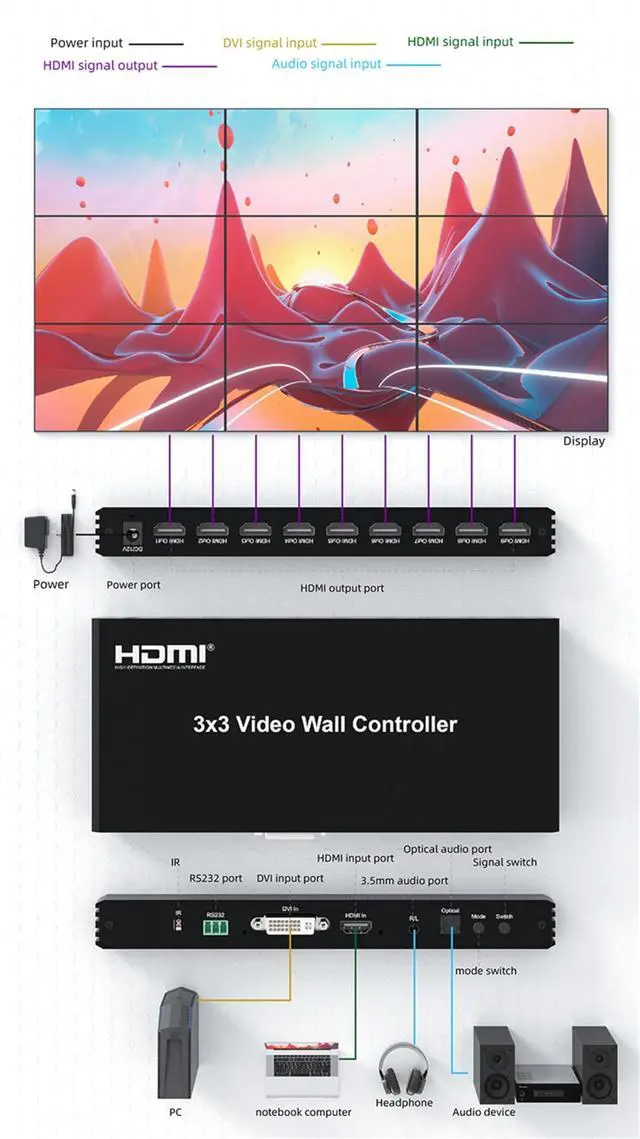

Introduction: This 3x3 video wall controller, supports 1 HDMI/DVI input and 9 HDMI outputs, the main function is to divide a single complete HDMI HD image signal into 9 display units (Rear projection screens, LCD TV. etc. ), to make them form a large dynamic image screen.
Note Pls: This product does not support vertical screens splicing. If you have any demand, please contact us first.

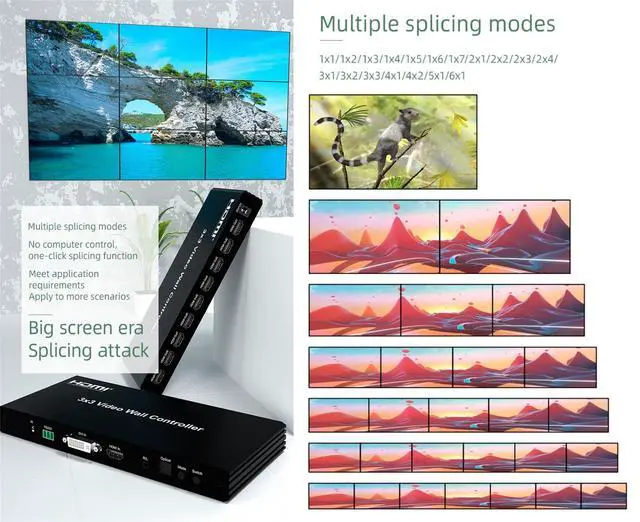

Features: * Support HDMI/DVI video source input; * Support 9-ways HDMI output; * With power off memory function; * Support multiple splicing modes, easy to handle, plug and play; Support RS232/IR control.
input resolution: 1080P/720P/576p/576i/480PHDMI
output resolution: support
1920x1080/60HzSupport video formats: RGB, YCbCr444, YCbCr442, YCbCr440Support
audio formats: StereoMax
bandwidth: 4.95G bit/s (1080P)
Maximum Transfer Rate: 3.96G bit/s (1080P)
Input/output cable length: 15M, AWG26 HDMI standard cableMax working current: 0.4A Power adapter specifications......... input AC (50Hz, 60Hz) 100V-240V Output 12V
DC/1AOperating temperature range: (-10 +45)Dimension (L x W x
H): 226x110x25 (mm)
Package include: 1 x 3x3 Video Wall Controller1 x Remote contro1 x 12V DC power adaptor1 x User manual
Note Pls: This product does not support vertical screens splicing. If you have any demand, please contact us first.
Features: * Support HDMI/DVI video source input; * Support 9-ways HDMI output; * With power off memory function; * Support multiple splicing modes, easy to handle, plug and play; Support RS232/IR control.
Specifications
: HDMIinput resolution: 1080P/720P/576p/576i/480PHDMI
output resolution: support
1920x1080/60HzSupport video formats: RGB, YCbCr444, YCbCr442, YCbCr440Support
audio formats: StereoMax
bandwidth: 4.95G bit/s (1080P)
Maximum Transfer Rate: 3.96G bit/s (1080P)
Input/output cable length: 15M, AWG26 HDMI standard cableMax working current: 0.4A Power adapter specifications......... input AC (50Hz, 60Hz) 100V-240V Output 12V
DC/1AOperating temperature range: (-10 +45)Dimension (L x W x
H): 226x110x25 (mm)
Package include: 1 x 3x3 Video Wall Controller1 x Remote contro1 x 12V DC power adaptor1 x User manual
