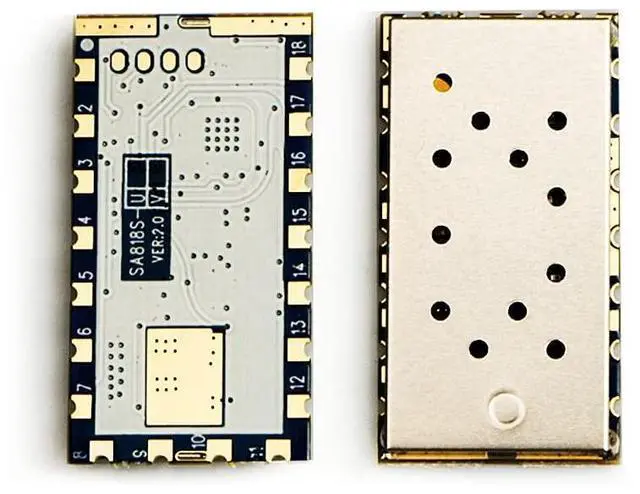

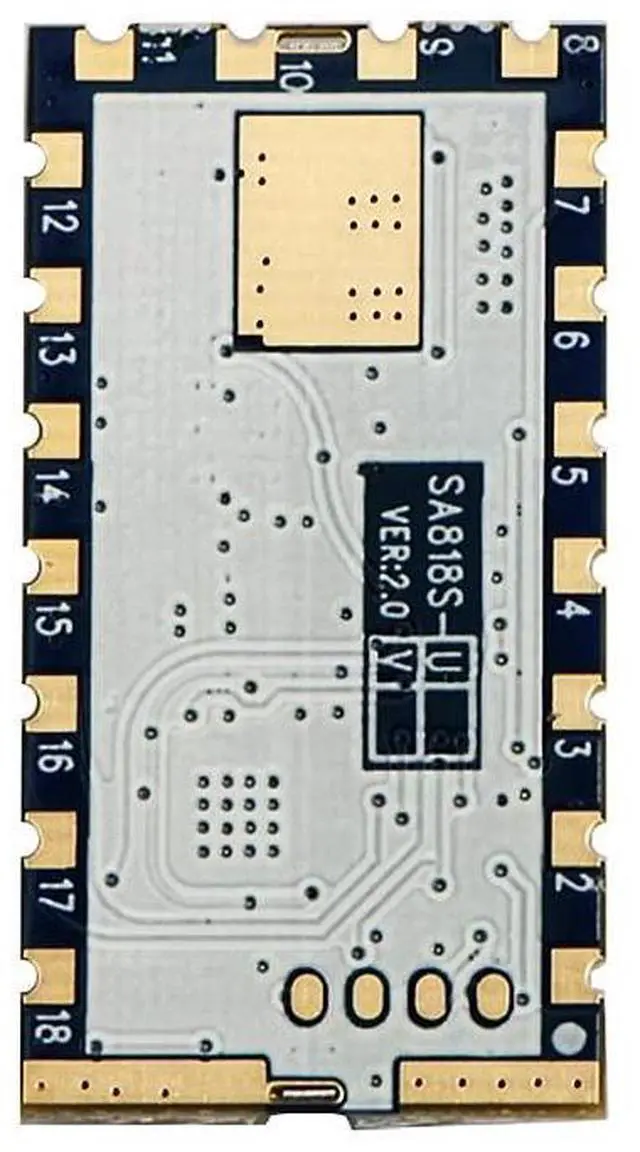

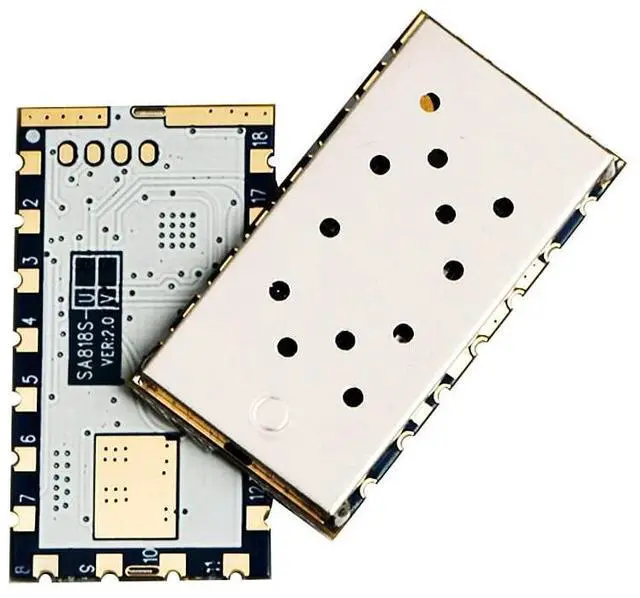

Lubeby Smart SA818S New Generation VHF 134~174MHz/UHF 400-480MHz 1W 30dBm Analogue Walkie Talkie Module (UHF :400~480 MHz X 2 PCS)

Package: 2 PCS X SA818S( UHF band frequency: 400~480 MHz or
VHF band frequency: 134~174 MHz)SA818S is a cost-effective integrated professional walkie-talkie module, built-in high-speed microcontroller, high-performance RF transceiver chip and RF power amplifier, and provides a standard serial port to communicate with the module, so that the relevant parameters of the module and the transceiver can be set quickly and easily. Function to control. Users only need to connect an audio amplifier, microphone, and speaker to this module to work as a small walkie-talkie. The simplified interface and ultra-small size enable this module to be widely used, and it can also be easily and quickly embedded in various handheld devices to improve the overall performance of the terminal product. SA818S strictly uses lead-free technology for production and testing, and meets RoHS and Reach standards. SA818S walkie talkie module adds an LNA circuit on the basis of SA818, and the sensitivity is increased by 4dBm. For the entire frequency range of 400-470MHz, the power output fluctuation is less than 1dB, and the low power can achieve an error of 27dBm+/-1dBm from 400-470MHz.
Note: The software and hardware interfaces are the same as before and are compatible with each other
Features: UHF
band frequency: 400~480
MHzVHF band frequency: 134~174 MHz350 band frequency320-400MHz (3 frequency bands are optional) Tx and Rx frequency, Tx and Rx CTCSS, CDCSS can be set alone.
Band width: 12.5KH z / 25 KHzOutput power up to 1WDistance up to 4-5km in open areaSensitivity-124 dBmHigh-integrated, Small Size38 CTCSS166 CDCSS8 level squelch8 adjustable volumeHigh/ low power is optional500mW/1WWide range of working voltage: 3- 5.5 V1 ppm KDS TCXO crystal, Stable
performanceApplication: Application of SA818S Walkie Talkie Modulesmall walkie talkieInvisible in
