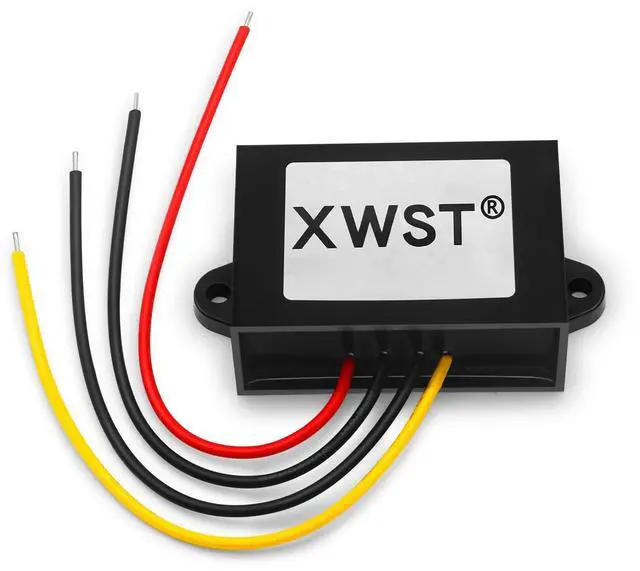

XWST DC DC Converter Reducer 30-90v 24v 48v 60v 72v to 24v DC Converter Step Down Buck 5A 120W dc Voltage Regulator for Golf Cart Car Device

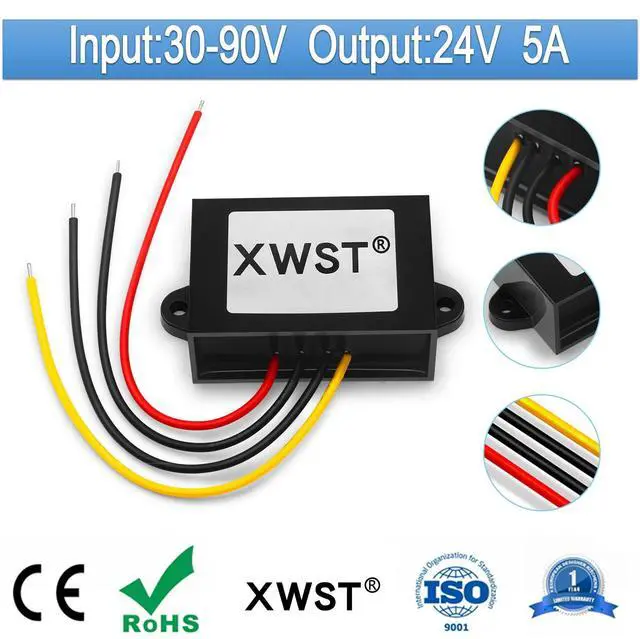

- PARAMETER --- XWST DC-DC converter input voltage range is DC 30~90V (24V 36V 48V 72V); output voltage is DC 24V; output current is 5A; output power is 120W.
- APPLICATION --- the 24v buck converter module can be used in integrated wiring for monitoring fire alarming system; car radio, audio; bus, minibus, truck display screen, taxi advertising screen; LCD television, LED; solar power generation system; interphone, etc.
- PROTECTION --- this BUCK voltage comes with over-current protection, over-temperature protection; adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc.
- FEATURE --- the BUCK power module adopts high-integrated chip, stable and reliable; synchronous rectification technology, with conversion efficiency of over 93% and low heat generated.
- NOTE --- Leave a margin for the power supply to ensure it can long-term stably working.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
XWST DCDC Power Supply Step Down Buck Module Technical Specification: Input
Voltage: DC 30V~90V (24V 36V 48V 60v 72v)
Output Voltage: DC 24VOutput
Current: 5AOutput
Power: 120WConversion
Efficiency: >93%No Load
Voltage Range: Set voltage 3%Load
Regulation: 3%Quiescent
Power Dissipation: <10mAOperating
Temperature: -25~65Storage
Temprature: -40~80Operating
Humidity: 10%~90%Waterproofing
Grade: IP67Over-current
Protection: YesOver-temperature
Protection: YesShort-circuit
Protection:

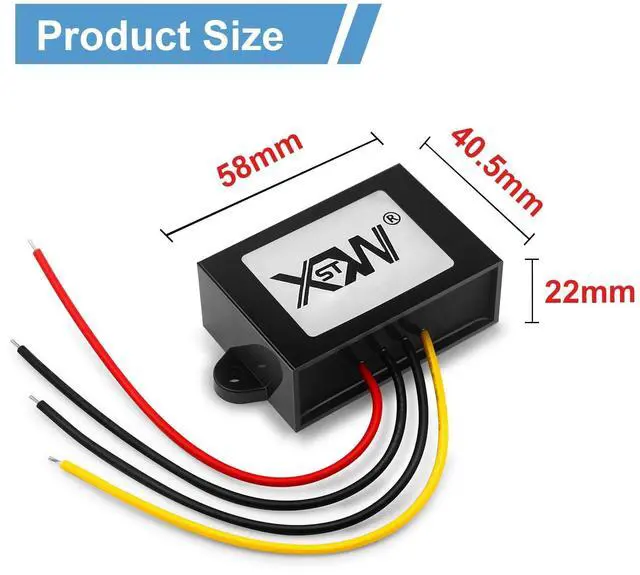

NoDimension: 58mm
x41mm x 22mmMaterial: ABS

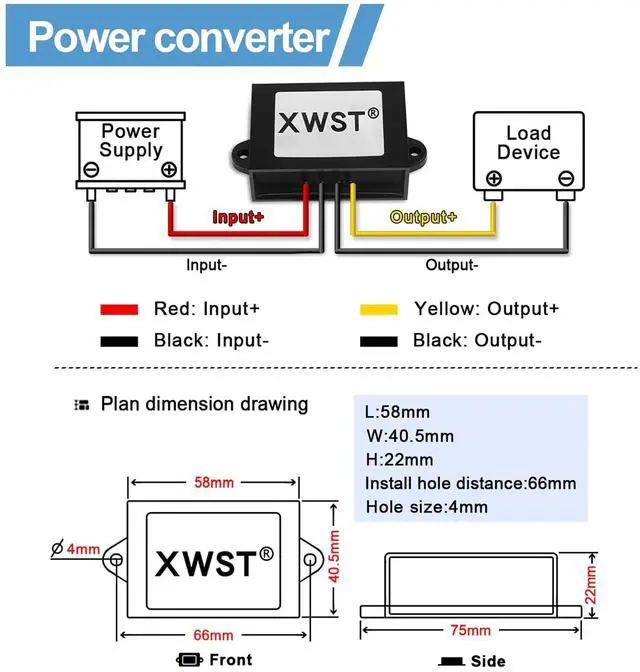

plastic shellNote: 1. Connect the wiring in strict according with the wiring instruction. 2. Use short and thick input & output wire to ensure output enough voltage and power. 3. If there are multiple output wire, do not combine the load. 4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included: 1x Step Down Buck Module
Voltage: DC 30V~90V (24V 36V 48V 60v 72v)
Output Voltage: DC 24VOutput
Current: 5AOutput
Power: 120WConversion
Efficiency: >93%No Load
Voltage Range: Set voltage 3%Load
Regulation: 3%Quiescent
Power Dissipation: <10mAOperating
Temperature: -25~65Storage
Temprature: -40~80Operating
Humidity: 10%~90%Waterproofing
Grade: IP67Over-current
Protection: YesOver-temperature
Protection: YesShort-circuit
Protection:
NoDimension: 58mm
x41mm x 22mmMaterial: ABS
plastic shellNote: 1. Connect the wiring in strict according with the wiring instruction. 2. Use short and thick input & output wire to ensure output enough voltage and power. 3. If there are multiple output wire, do not combine the load. 4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included: 1x Step Down Buck Module
