Valefod 48V to 24V 20A 480W Step-Down Transformer DC to DC Buck Converter for Golf Cart Power Supply
- High-grade DC-DC Buck ConverterIt adopts premium quality electronic components and waterproof (IP68) aluminum housing. Widely used for golf cart, club car, motor, speaker, GPS, car display screen, LED strip light, air-conditioner, electric fan, solar energy, DVD and other devices that requires DC 24V voltage.
- Input VoltageDC 48V (Input Range: 30V to 60V). A stable DC power is recommended as the input power supply, and the rated voltage supply should be within the voltage range of 30V to 60V.
- Output VoltageDC 24V (Output Current: 20A). Please NOTE the output voltage/current/power is rated.
- Multiple ProtectionsBuilt-in over-temperature, over-current, over-voltage, output short- circuit protection to ensure your devices safely.

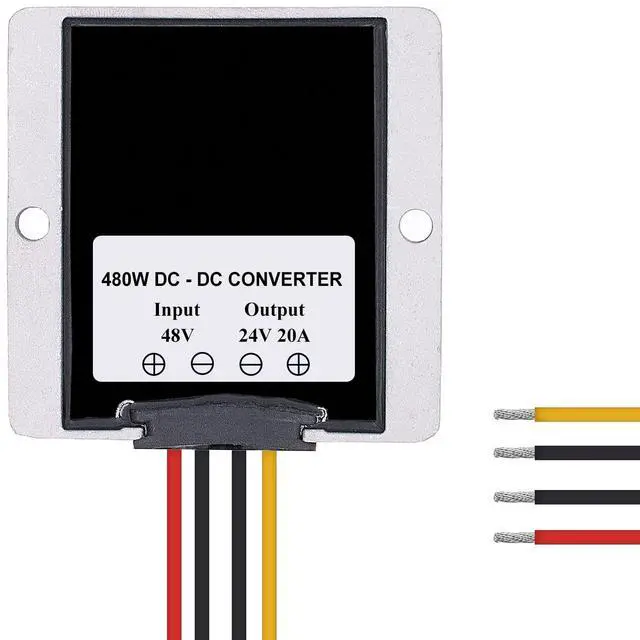

- Easy to DIYConnect INPUT wires to power source, OUTPUT wires to your load device. The wiring diagram is labeled on the back of buck converter. Please don't power on before completing the circuit and connection, do not reverse the input and output interf
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: - DC-DC 48V step-down to 24V 20A 480W voltage transformer- High reliability and conversion efficiency, wide input voltage range- Die-cast aluminum shell, sealed with thermal conductive silicone for achieving natural heat dissipation, waterproof, dustproof and shockproof- Built-in over-temperature, over-current, over-voltage, output short- circuit protection- Auto-recovery when device is back to normal operating- Compact in structure, easy to installKindly
Note: 1. Input voltage must be higher than the output voltage, no boost2. Do not reverse the input and output interface3. Give preference to stable DC power as the input power supply, or filter it with capacitor If you use the pulsed DC power provided by the generatorSpecifications: -
Module Type: Non-Isolated DC to DC Converter-
Input Voltage: DC 48V-
Input Range: DC 30V - 60V-
Output Voltage: DC 24V-
Output Current: 20A- Output
Rated Power: 480W-
Conversion Efficiency: 97.1 %-
No-load Loss: 58mA-
Ripple and Noise: 80mVp-p-
Operating Temperature: -40 to +80-
Load Regulation: <2%-
Voltage Regulation: <1%-
Waterproof Rate: IP68-
Housing Material: Die-cast aluminum-
Potting Material: Epoxy sealed- Size (L x W x

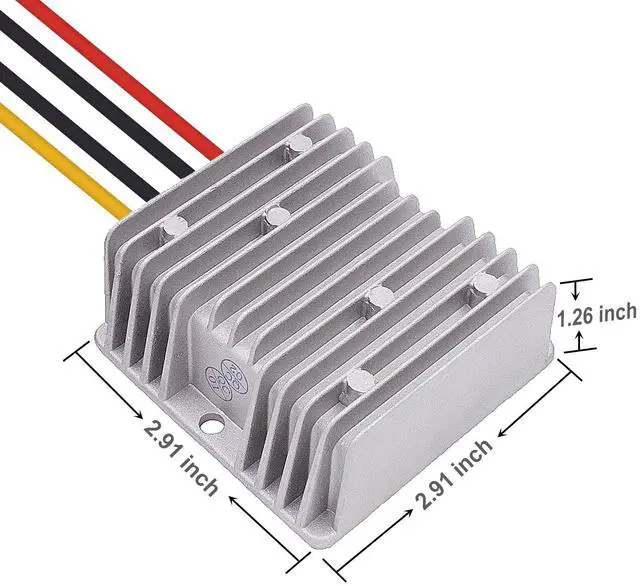

H): 74*74*32mm / 2.91 * 2.91 * 1.26 inch-
Net Weight: 300gPackage
Includes: 1x DC to DC Step-Down Transformer2x Lever Wire Connectors
Note: 1. Input voltage must be higher than the output voltage, no boost2. Do not reverse the input and output interface3. Give preference to stable DC power as the input power supply, or filter it with capacitor If you use the pulsed DC power provided by the generatorSpecifications: -
Module Type: Non-Isolated DC to DC Converter-
Input Voltage: DC 48V-
Input Range: DC 30V - 60V-
Output Voltage: DC 24V-
Output Current: 20A- Output
Rated Power: 480W-
Conversion Efficiency: 97.1 %-
No-load Loss: 58mA-
Ripple and Noise: 80mVp-p-
Operating Temperature: -40 to +80-
Load Regulation: <2%-
Voltage Regulation: <1%-
Waterproof Rate: IP68-
Housing Material: Die-cast aluminum-
Potting Material: Epoxy sealed- Size (L x W x
H): 74*74*32mm / 2.91 * 2.91 * 1.26 inch-
Net Weight: 300gPackage
Includes: 1x DC to DC Step-Down Transformer2x Lever Wire Connectors
