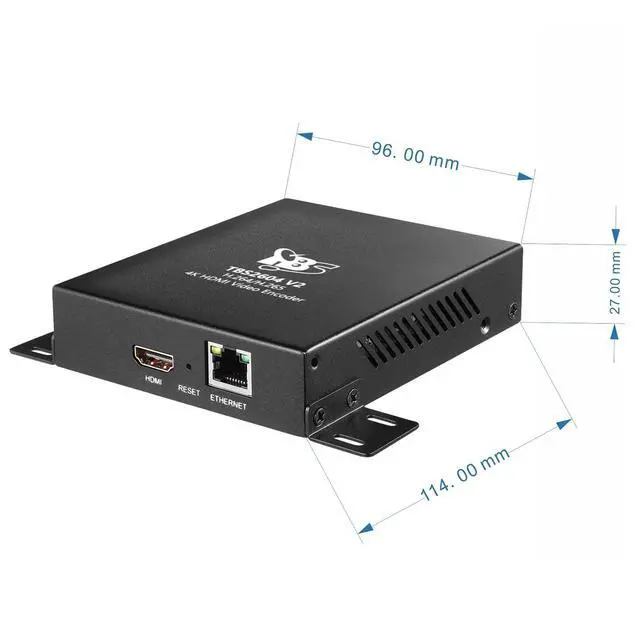

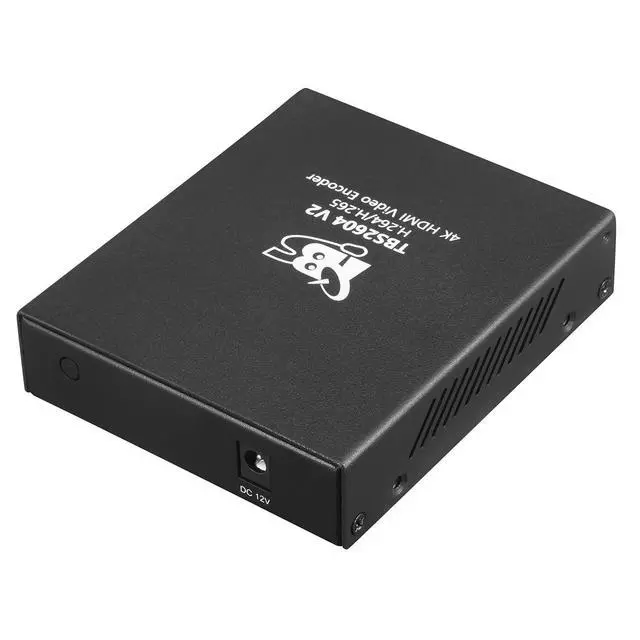

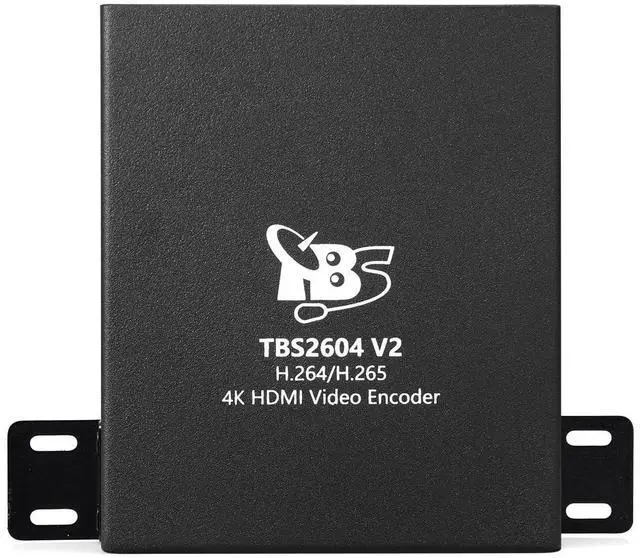

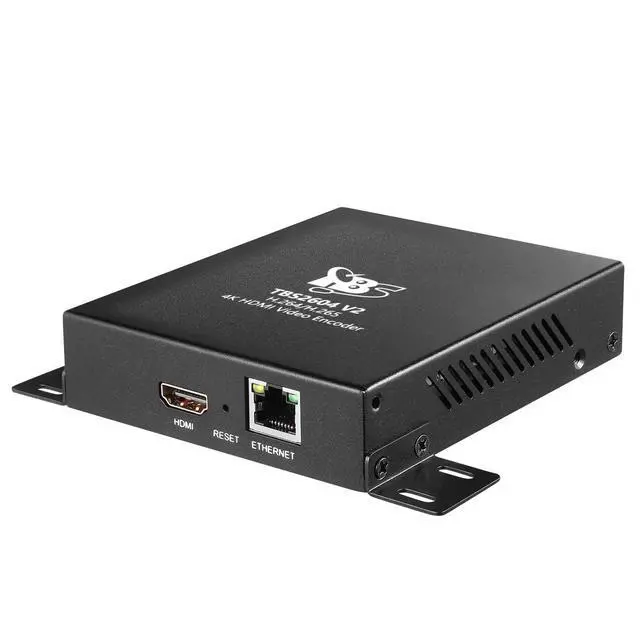

HD 4K HDMI Encoder, TBS2604v2 UHD H.264/H.265 Video Encoder Support HTTP HLS(m3u8) RTSP UDP RTMP RTMPS SRT Protocol for IPTV with Web UI Control
- 4K ENCODER: It is a 4K UHD H.265 & H.264 HDMI Video Encoder, capable of up to max 3840 x 2160P@30fps
- H.264 H.265 ENCODING: Supports H.264 H.265 encoding, which is ideal choice for customers who need lower bit rate video transfer over LAN or WAN networks often due to internal network limitations, whilst maintaining high quality video
- PROTOCAL: Compliant with HTTP, HLS(m3u8), RTSP, UDP Unicast & Multicast, RTMP/RTMPS, SRT protocols
- DOULD CODE STREAM: It supports to encode with dual streams and streaming via IP, the main stream and the sub-stream can be encoded into different resolutions, bit rates, and then adapted to different terminals.
- REMOTE ACCESS: With Web UI managing system and Telnet remote access, which provide users flexible choices to control the encoder at anytime and anywhere Features
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Key Features: 3840x2160p@30hz In and 3840x2160p@30fps encode maximumH. 264/H. 265 EncodeAAC-HE, AAC-LC, G. 711 audio encodingBitrate of output video stream is adjustable from 500kbps to 20MbpsSupport HTTP, HLS (m3u8), RTSP, UDP Unicast & Multicast, RTMP/RTMPS, SRT
Support inserting Logo, Text (OSD overlay) PCR adjustmentSupport HDCP 1.4F lexible and friendly webpage controlStable and effective, support 7 x 24h working timeSpecification:
Input: 1x HDMI 1.4 a HDCP 1.4 supportedVideo
Input: 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz, 1280x720p_60/50hz, 720x576p, 720x480p, etc.
Encode Size: 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080, 1680x1056, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, autoVideo
output: 3840x2160p@30fps, 2560x1600p@30fps, 2560x1440p@30fps, 2048x1152@30fps, 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps, 1024x576p@60/50fps, 720x576p@60/50fps, 720x480p@60/50fps, 704x576p@60/50fps, 640x480p@60/50fps and etcVideo
Codec: H. 264/H.
265Profile: H.
264: Baseline, Main, High; H.
265:
MainLevel: H264 Level 4.2; H265 Level 4.1B itrate
Control: CBR/VBR/EVBR
Frame Rate: 5~60fpsKey
Interval (gop): 5~180fpsGOP
Structure: IPPP
Video Bitrate: 300~20000KbpsColor
depth: 8
bitsChroma subsampling:
4:2:
0De-interlace: Supported. Force to do de-interlace when i (interlace) inputAudio
Input: HDMI embeddedAudio
Codec: AAC-LC, AAC-HEAudio
Bitrate: 24000/32000/44100/48000/64000/96000/128000/160000/ 192000/256000bpsAudio
Resample: 48k, 44.1 k, 32kAudio
Bitrate:
24000/32000/44100/48000/64000/96000/128000/256000bpsControl: web GUI
Protocols: http, hls m3u8, rtsp, srt caller & listener, udp unicast & multicast, rtmp/rtmpsRecommended
Browser: Windows or Linux OS Google Chrome, Firefox, Microsoft Edge and etc.
Power Consumption: less than 5
WattNet Weight: 320gGross
Weight: 760gOperating
temperature: 0 to 40
Storage temperature: 20 to 70
Relative Humidity: 5% to 90% (non-condensing)
Support inserting Logo, Text (OSD overlay) PCR adjustmentSupport HDCP 1.4F lexible and friendly webpage controlStable and effective, support 7 x 24h working timeSpecification:
Input: 1x HDMI 1.4 a HDCP 1.4 supportedVideo
Input: 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz, 1280x720p_60/50hz, 720x576p, 720x480p, etc.
Encode Size: 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080, 1680x1056, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, autoVideo
output: 3840x2160p@30fps, 2560x1600p@30fps, 2560x1440p@30fps, 2048x1152@30fps, 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps, 1024x576p@60/50fps, 720x576p@60/50fps, 720x480p@60/50fps, 704x576p@60/50fps, 640x480p@60/50fps and etcVideo
Codec: H. 264/H.
265Profile: H.
264: Baseline, Main, High; H.
265:
MainLevel: H264 Level 4.2; H265 Level 4.1B itrate
Control: CBR/VBR/EVBR
Frame Rate: 5~60fpsKey
Interval (gop): 5~180fpsGOP
Structure: IPPP
Video Bitrate: 300~20000KbpsColor
depth: 8
bitsChroma subsampling:
4:2:
0De-interlace: Supported. Force to do de-interlace when i (interlace) inputAudio
Input: HDMI embeddedAudio
Codec: AAC-LC, AAC-HEAudio
Bitrate: 24000/32000/44100/48000/64000/96000/128000/160000/ 192000/256000bpsAudio
Resample: 48k, 44.1 k, 32kAudio
Bitrate:
24000/32000/44100/48000/64000/96000/128000/256000bpsControl: web GUI
Protocols: http, hls m3u8, rtsp, srt caller & listener, udp unicast & multicast, rtmp/rtmpsRecommended
Browser: Windows or Linux OS Google Chrome, Firefox, Microsoft Edge and etc.
Power Consumption: less than 5
WattNet Weight: 320gGross
Weight: 760gOperating
temperature: 0 to 40
Storage temperature: 20 to 70
Relative Humidity: 5% to 90% (non-condensing)
