SMTAV PTZ Camera, 20X Optics Zoom,1080P60,3G-SDI+HDMi+USB3.0+Network Video Output for Churches, Schools, Video conferences and Live Streaming (20X, SDI HDMI IP)

Be the first to review this product...

1/2.8-inch, high-quality HDCMOS sensor with 2.1 million effective pixels, which can achieve high-quality images with ultra-high resolution of 1920x1080. The output frame rate can reach up to 60/50 frames/second.

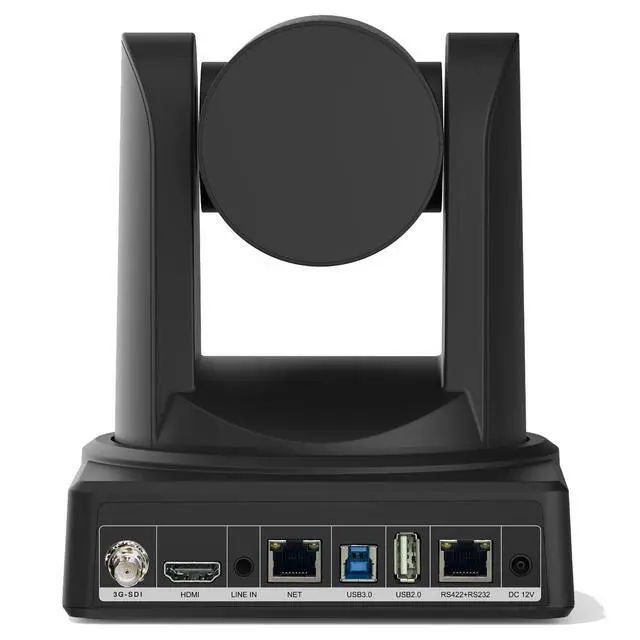

3G-SDI, HDMi, network, and USB3.0 interfaces output video simultaneously. Supports 1080P60/50/30/25, 720P60/50/ and other high-definition video formats.
20x optical zoom, controllable via RS-232C/RS485/network, supports VISCA/Pelco-D/Pelco-P/Onuif and other protocols, supports 255 presets
Apply 2D and 3D noise reduction algorithms based on motion estimation, and use a new generation of low-noise sensors to effectively reduce noise.

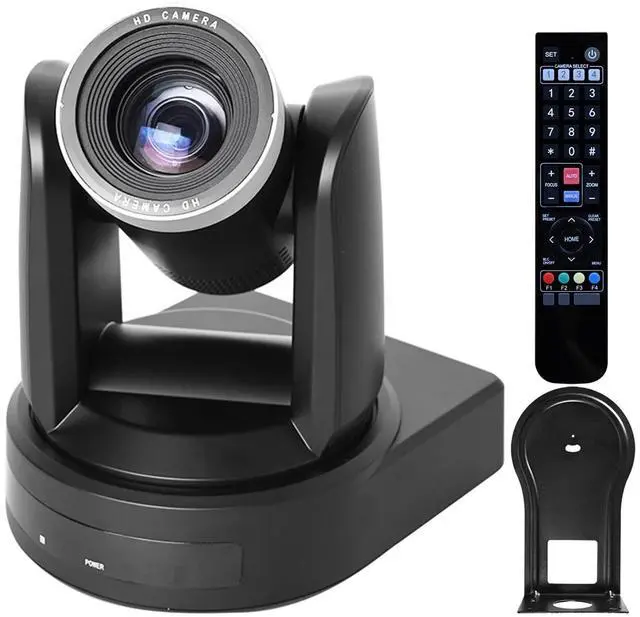

Including camera*1, power adapter*1, power cord*1, VISCA cable*1, PoE adapter*1, user manual*1, Wall mounting bracket*1

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Image sensor 1/ 2.8 -inch high-quality HD CMOS sensorEffective pixels 16:9 2.1 million effective pixelsVideo format 1080p60/50/30/25 720p60/50/Lens zoom: 20x optical zoom, f= 4.7 mm~94mmDigital zoom 12xViewing angle 2.9 (narrow angle) --62 (wide angle) Minimum illumination 0.1L uxSignal-to-noise ratio >50dBHigh-definition video interface HDMi, 3G-SDI USB 3.0 IPEncoding format H. 264Baseline, Main Profile, High profile, H. 265 Mainfile, MJPEG encodingImage resolution "Main stream 1920*1080@30fps, 1280*720@30fps; Sub-stream 720*576@30fps, 640*480@30fps"Protocol support TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNPONUIF protocol Standard ONUIF protocolPoE Support (including a PoE splitter)
Preset accuracy: 0.1
degreesNumber of preset: 255 user-settable preset positionsInput voltage DC12V (DC 11.5 -DC 12.5V )Power consumption 15W (maximum) Storage temperature -10 to +60Working temperature 0 to +45Dimensions (width x height x depth) 155mmX186mmX172mmWeight (net weight) 2.5KG ( 1.3KG )
