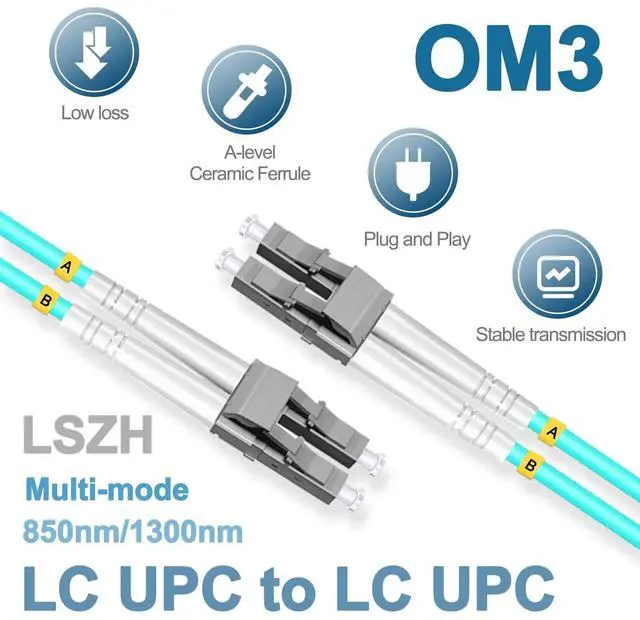

Lebrudos 5Pcs 3 Meter Multi-Mode Fiber Optic Patch Cord LC UPC to LC UPC Duplex, Fiber Cable Jumper OM3 50/125m, 850nm/1300nm LSZH 3.0mm

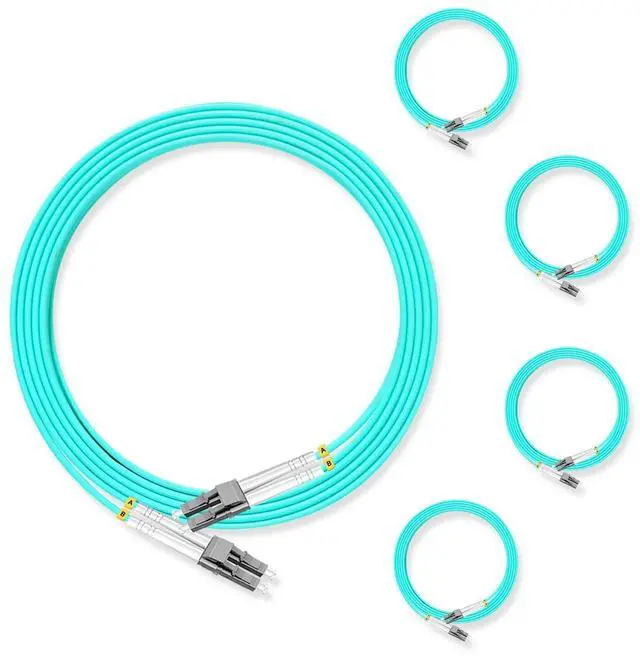

- Main Parameters5Pcs 3 Meter (9.8ft) LC UPC to LC UPC multi-mode Duplex OM3 Fiber Optic Patch Cord50/125 m fiber core, which supports 850nm/1300nm wavelength
- High PerformanceThe fiber patch cord 0.2dB repeatability and interchangeability, 0.3dB insertion loss, and 25dB return loss. The low insertion loss and high return loss ensure stable transmission. which can operates reliably in a temperature range of -20~70C.

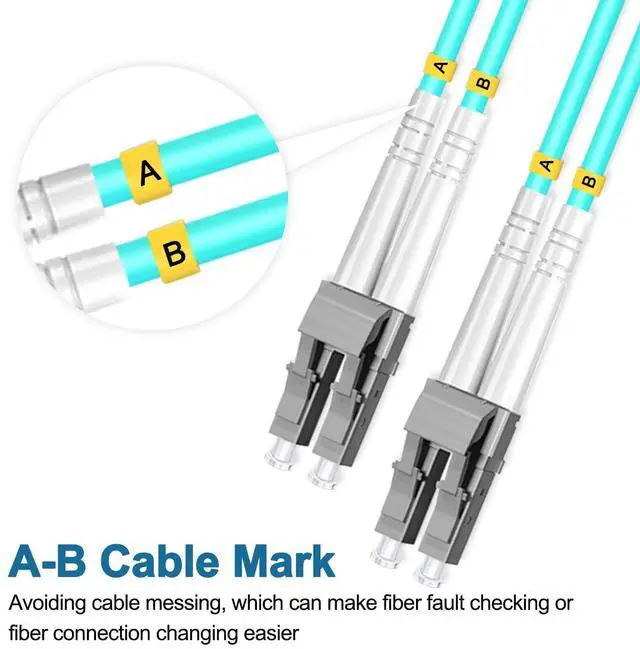

- A-B Cable Mark the duplex fiber patch cable comes with A-B cable mark for distinguishing the fiber connection, which can make fiber fault checking or fiber connection changing easier.

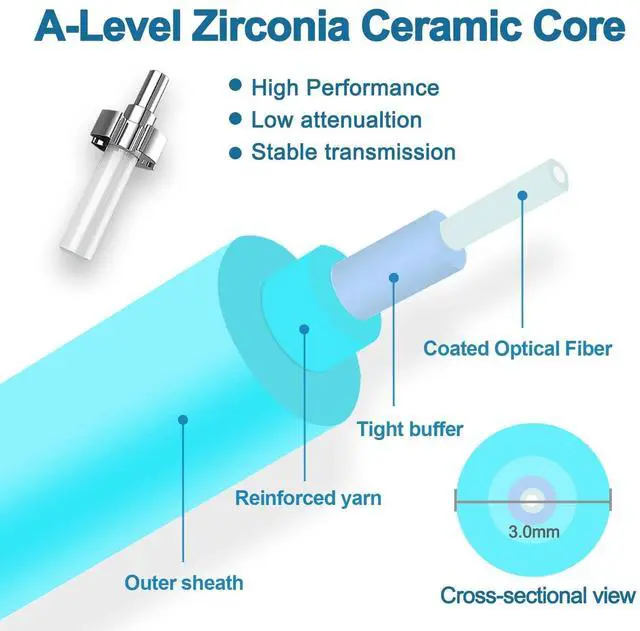

- 3.0mm&LSZH Fiber Jacket The Fiber Optic Patch Cord is buffered to the specified size of 0.9mm with LSZH material, and a para-aramid yarn is used as a strength member to wrap the 0.9mm buffer layer. The 3.0mm external LSZH jacket is used to protect the internal structure. It is equipped with an A-level zirconia ceramic ferrule, ensuring data transmission quality and providing good tensile
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product DescriptionThe main function of fiber optic patch cords is to serve as a key component connecting different devices to the fiber optic cabling system. It is designed with a thick protective layer, typically used for connecting optical transceivers and termination boxes. Fiber optic patch cords are widely used in various applications, including fiber optic communication systems, fiber optic access networks, fiber optic data transmission, local area networks (LAN), fiber optic cable television (CATV), fiber optic sensors, and many other fields. Product DetailsConnectorLC/UPC to LC/UPCCable Diameter 3.0 mmFiber Typemulti-mode OM3Fiber CountDuplexCore Diameter50/125mWavelength850nm/1300nmSheath materialLSZHCore typeA-level zirconia ceramic coreInsertion Loss 0.30R eturnback Loss 25dBRepeatability 0.2 dBInterchangeability 0.2 dBWorking Temperature -20 ~70 Storage Temperature - 40 ~80 Cable Length3M/ 9.8 ftPacking Quantity5 PCS
