Allaounion RJ45 Connector, IP67 Waterproof Ethernet Industrial Circular Connector, 8P8C Aviation Dual Port Connector, Signal Connector for Home, Industrial, LED Display Network Connection

RJ45 Connector

Specifications

: The rj45 waterproof connector general wire diameter: 5.5 mm-7mm.
Cable specification: 18-16AWG.

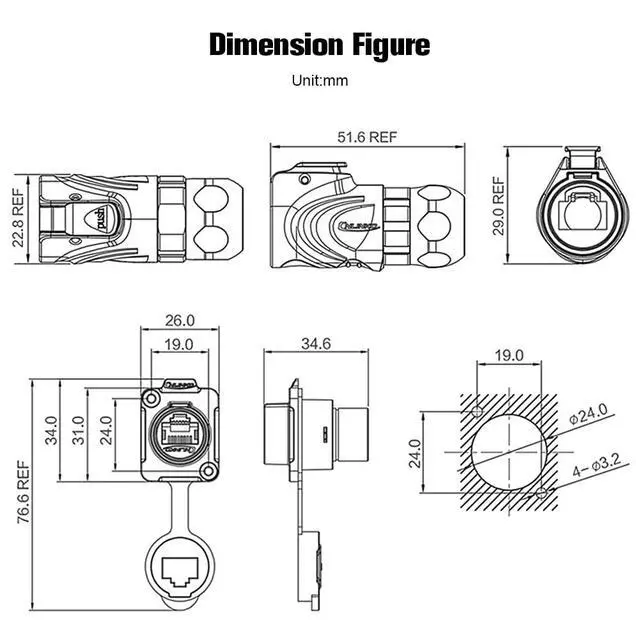

Mounting dimensions: 24mm.
Waterproof Protection level: IP67.

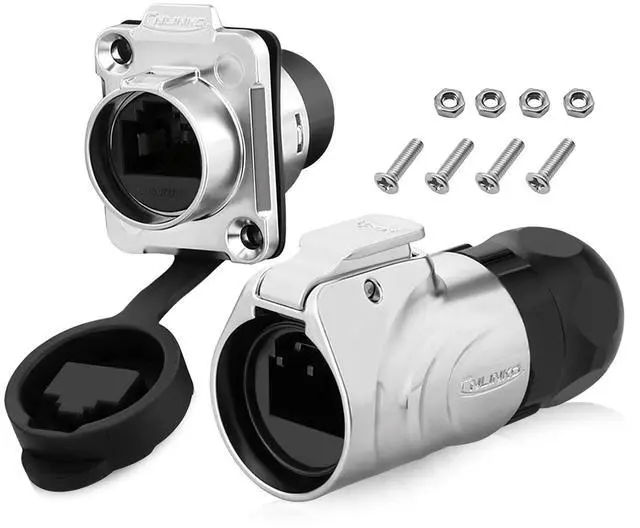

Package list: 1 plug, 1 socket.
^^ High-Quality Material: Rj45 Ethernet connector uses metal material, against high-frequency noise and electromagnetic interference. Using gold-plated contact with the superior performance of corrosion resistance and electrical conductivity effectively goes to take care of the temperature rise. The transmission speed can reach 10GBIT/S.

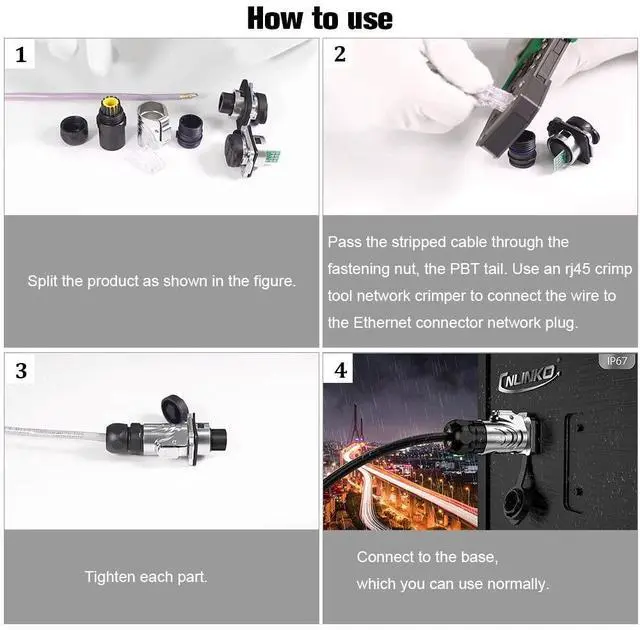

^^ Easy to Install: Spring snap-lock connection design, safety lock system. No soldering, no installation tools, just stop up standard crystal head directly for quick installation. Be compatible with the prevailing 8P8C RJ45 plug, be equipped with a waterproof connector, which protects the connector from external harm. Provides feed-through Cat3e/Cat5e Ethernet connectivity for data and PoE in industrial environments. ^^ IP67 Signal
Waterproof Connectors: Waterproof design, the product reaches IP67 protection level when assembled. Adapt to various harsh environments, acid, alkali, oxidation, etc. Ensure the stability of the current. High quality ensures that your equipment works well without being affected.
^^ Wide Applications: Used to the home network, industrial network, stage credit connection, outdoor Ethernet LAN cable, LED equipment, underground engineering, communication field, etc.
