USB C to HDMI and USB C Dual-Display Adapter Power to Xreal/Viture/RayNeo AR Glasses or HDMI/Type C Monitors While Charging for Steam Deck, ROG Ally, Switch, Compatible 4K 144Hz^^Built-in Cooling Fan

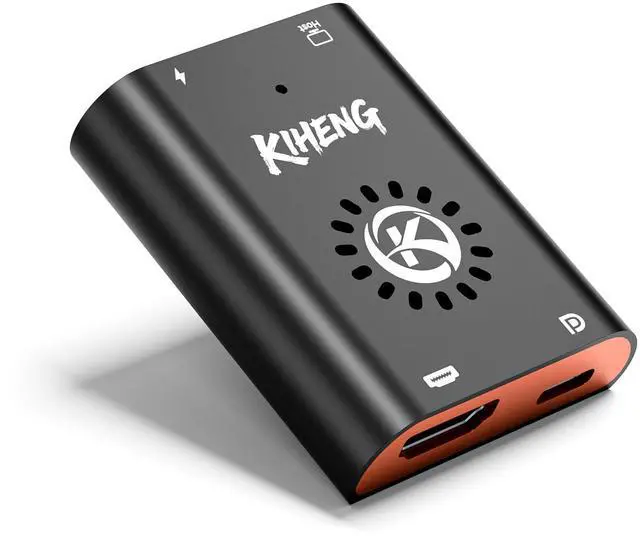

USB C to HDMI and

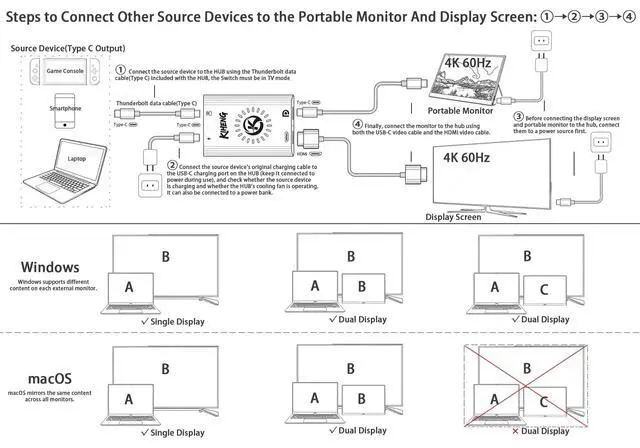

USB C: This USB-C hub provides a solution for users with two monitors featuring different video inputsone with Type-C and the other with HDM
Ienabling either dual-display mirroring or dual-display with separate content. This adapter uses the latest chip that can power AR glasses while charging to Switch
2. This HUB can charge your Switch/Switch OLED/Switch 2, Steam Deck, Rog Ally, iPhone 17/16/15, ect devices, when using AR glasses or Type C/HDMI displays. It enhances compatibility between different display devices and reduces your budget for monitor equipment needed for live streaming or other professional tasks.
^^ 4K 60Hz: When using both the USB-C (DP) and HDMI video outputs of the HUB simultaneously for either mirrored or dual-display configurations, the maximum compatible video quality for both outputs is 4K@60Hz. Note that this is compatibility, not enhancementyour source device and display must support such high-quality output and display capabilities.
^^ 4K 144Hz: When using only the USB-C (DP) video output port on the HUB (with no devices or cables connected to the HDMI output port), such as for connecting source devices for AR glasses or portable displays, the USB-C (DP) output port supports a maximum video resolution of 4K@144Hz. Note that this is compatibility, not enhancement. Your source device and display must support such high-resolution output and display capabilities.
^^ Built-in cooling fan: This hub features an integrated fan design that effectively reduces surface temperature during full-power operation to 33C~38C. This significantly extends the hub's lifespan and enhances performance. The fan operates nearly silently, with noise levels below 20dB. ^^ PD 100W Fast Charging for
Source Devices: This usb-c charging hub adapter delivers compatible 100W of power via the PD port to fast-charge upstream devices like laptops, smartphones, or gaming consoles. But Switch/ROG/Steam Decks internal hardware will trigger a protection mechanism to limit the charging power if it is too high. Therefore, please use the original charger to connect to our
HUB (Switch /OLED: 15W, Switch 2: 60 W, ROG: 65W, Steam
Deck: 45W). ^^ DP
Protocol Video Output: Xreal AR glasses connect correct to the HUB but there is no sound or not video on glasses, you need to switch the Xreal AR glasses to DP Mode ( ) according to the AR glasses manual. Except for Xreal AR glasses, which require switching to glasses mode, AR glasses from other brands do not require this. Not compatible with VR-Headsets.
^^ Attention: You can connect a Portable Charger to the HUB to keep it working properly, thereby solving the problem of inconvenient charging while traveling. If a display malfunction occurs, please unplug and replug the cables to ensure each connection is secure and free from looseness. Or replace it with a new Thunderbolt video cable (Type-C).
^^ Adapter Type-C: If your device only supports HDMI but not Type-C, please choose HDMI to USB-C hub. This is very important, because of PS4/PS5, Xbox cannot use this USB-C to USB-C hub. Of course, we also sell HDMI to USB-C hub, search B0DSZXZSTX (, /, ) on. However, do not use these two HUBs together at the same time.
^^ Friendly Service: Product
includes: Hub x1, Thunderbolt cable (Type-C)20cm x1. The interface of the HUB is designed to be compact, this is to prevent the interface from shaking during use. If you have any questions, please leave a message through the manual or Amozon seller KIHENG. We will actively help you to solve the problem.
