$57.99
Meet Your Seller

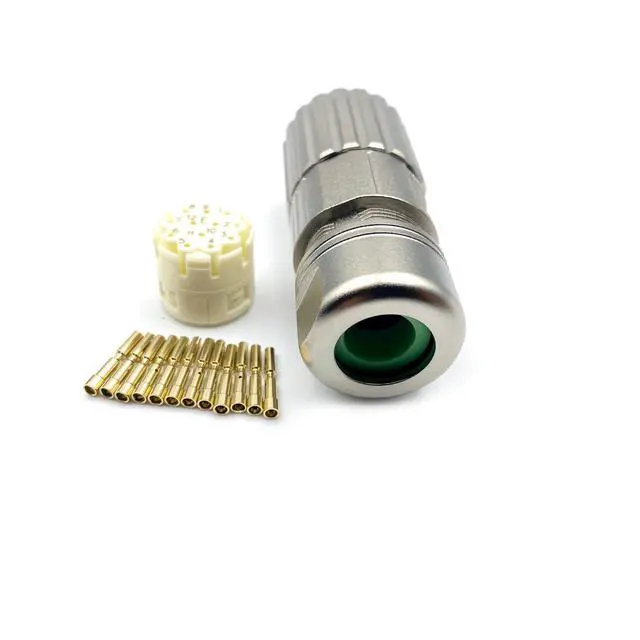

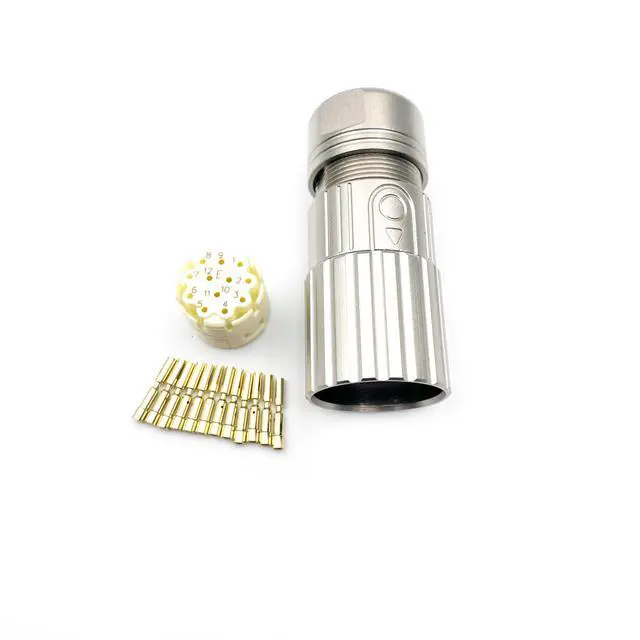

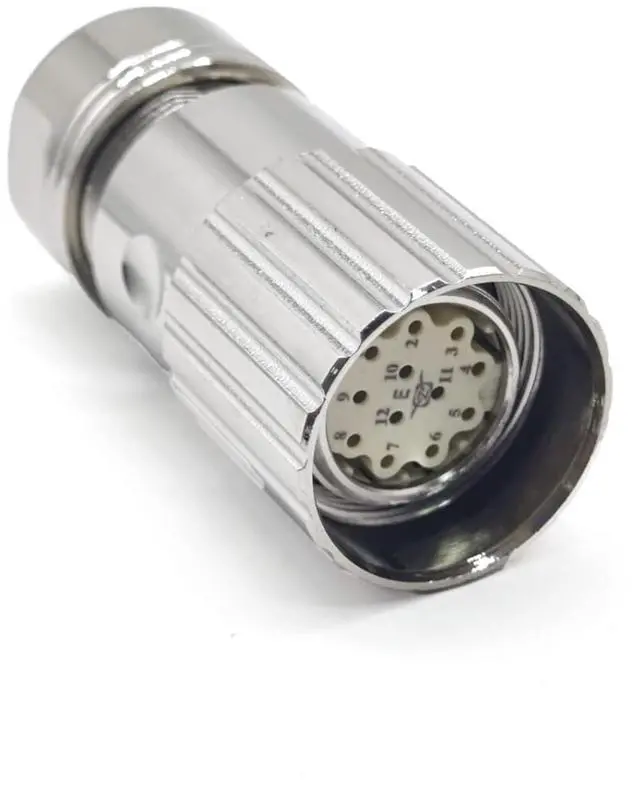

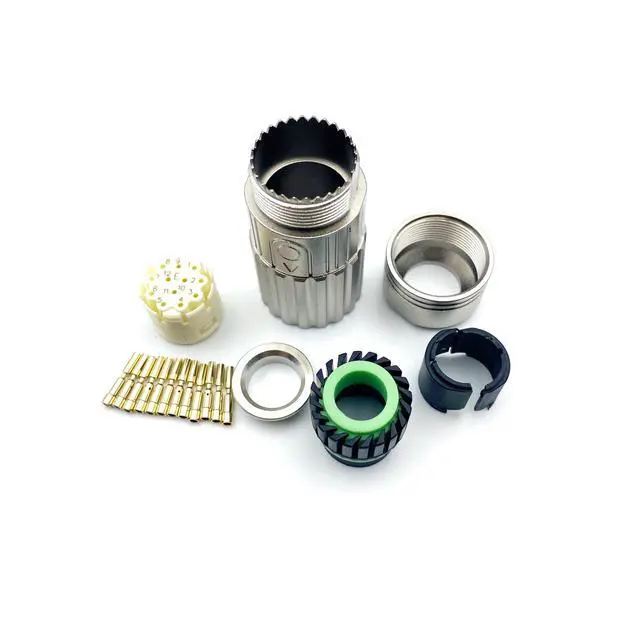

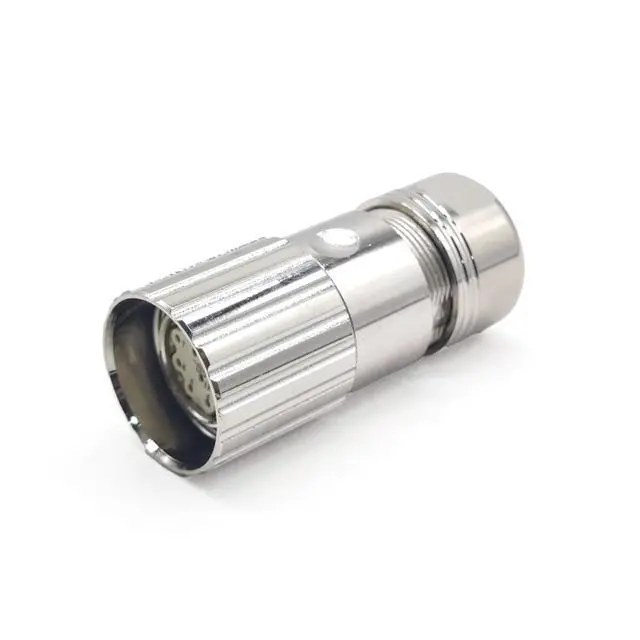

M23 12pin Female Connector, M23 Waterproof Circular Connector for Signal, M23 Connector for servo Motor E Code clockwise Shielded Adapter for Wire to Panel Connection
- [M23 Connectors Technical Parameter]: Appliction: servo motor, Rated Current: 8A, Rated Voltage: 150V, Conductor size: 18AWG, Waterproof: IP67, Housing material: nickel plated zinc alloy, Shielding: shielded, Insulator material: PA66, Contact impedance: 5m, Durability: 500 mating cycles, Cable diameter: 6~10mm, Working temperature: -40 ~ +105
- [12 pin M23 connectors for signal]: M23 connector is waterproof circular connector that are wildely used for servo motors, M23 connector has 23mm coupling thread, the shell is made of nickel plated zinc alloy, the pins the are made gold plated brass, mainly used for power supply or singal, M23 12 pin connectors with smaller diamter contacts are used for signal
- [M23 12pins signal connector for 18 AWG]: The M23 signal connector has 6 different pin arrangements, with different contact quantities, the available conductor size is different, from 18 AWG to 14 AWG; the conductor size of M23 12pins signal connector is 18 AWG
- As the pin have diffe
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
M23 Connectors Technical Parameter:
Appliction: servo
motorWaterproof: IP67Housing
material: nickel
plated zinc alloyShielding: shieldedInsulator
material: PA66Contact
impedance:
5mDurability: 500
mating cyclesCable diameter: 6~10mmWorking
temperature: -40 ~ +105Rated
Current: 8ARated
Voltage: 150VConductor
size: 18AWG
Code: P stands for anti-clockwise, E
stands for clockwisePackaging includes: 1Pcs M23 waterproof circular connector
Appliction: servo
motorWaterproof: IP67Housing
material: nickel
plated zinc alloyShielding: shieldedInsulator
material: PA66Contact
impedance:
5mDurability: 500
mating cyclesCable diameter: 6~10mmWorking
temperature: -40 ~ +105Rated
Current: 8ARated
Voltage: 150VConductor
size: 18AWG
Code: P stands for anti-clockwise, E
stands for clockwisePackaging includes: 1Pcs M23 waterproof circular connector
