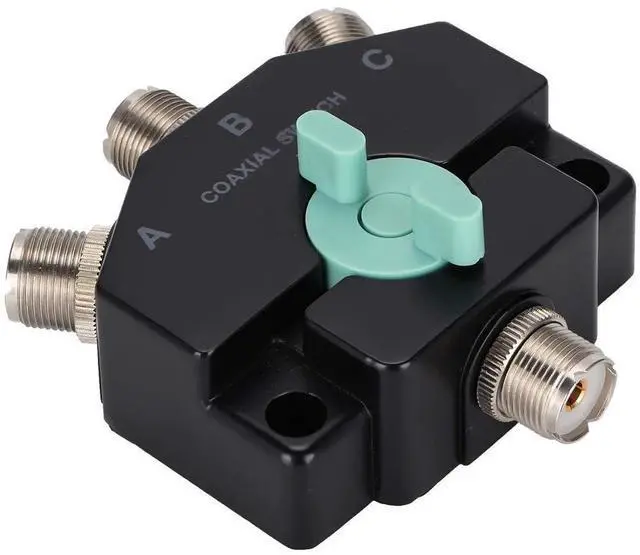

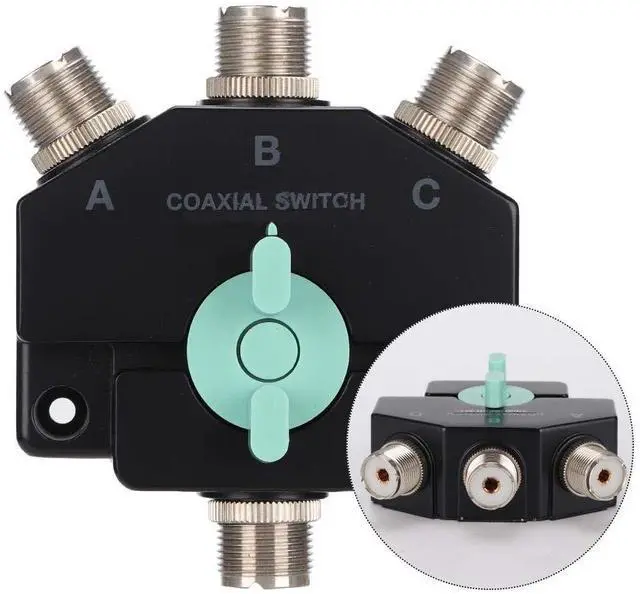

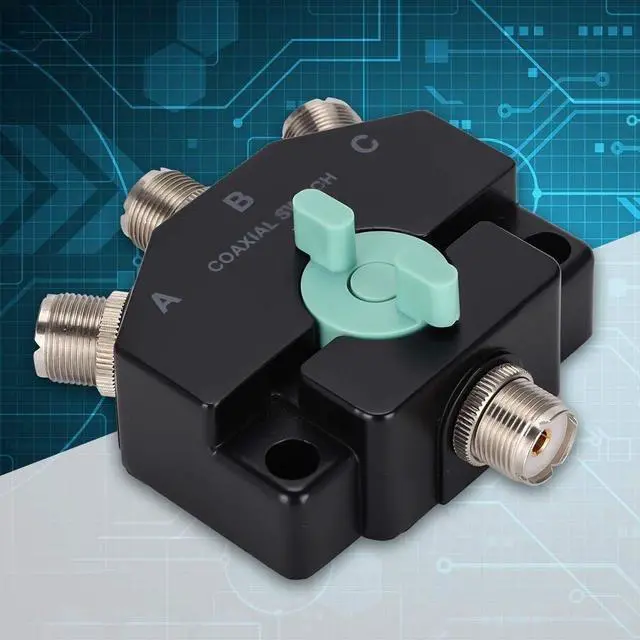

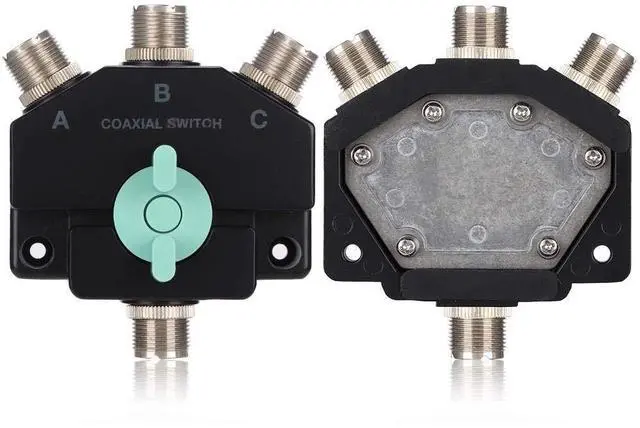

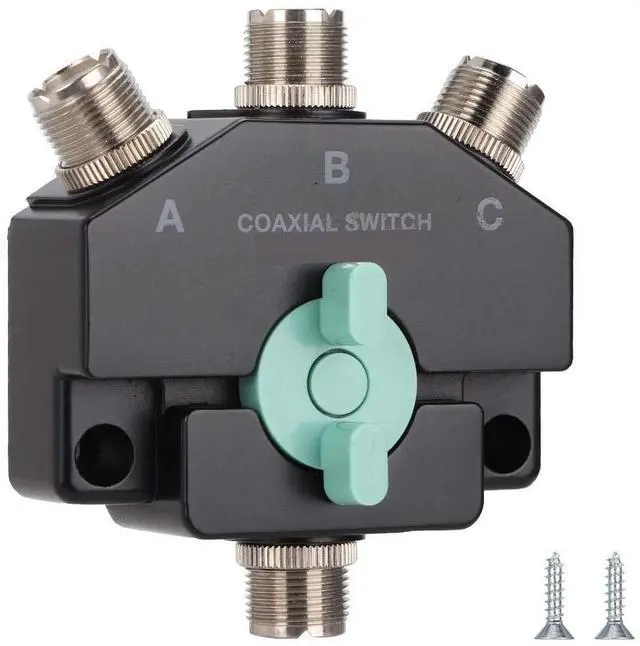

Coaxial 3 Position Antenna Switch,1 Input 3 Outputs Switcher Antenna Shortwave Base,Low Loss,M J Interface
- It is made of metal material, strong and .
- It can adjust the received by switching the antenna, convenient and practical.
- The interface with the antenna is made by technology, and there is no problem of bad .
- It can be connected to three antennas, outstanding performance.
- The impedance is only 50 ohms and the loss is very low.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:Material:
MetalSize: Approx. 9.5 * 7.7 * 2.9 cm/ 3.74 * 3.03 * 1.14 inchFrequency: DC-800MHz2 Position Switch 1-Input -3-OutputsInsertion loss: less than 0.1 dB (DC-500MHz), more
than 0.15 dB (500-1000MHz)Isolation: more than 60dB (DC-500MHz), over
50dB (500-800MHz)VSWR: less than 1.1 (DC-500MHz), less
than 1.2 (500-1000MHz)Through power: (less than SWR 1.2 ), 1.5KW (DC-30MHz), 1KW (30-150MHz), 500W
(150-800MHz)Impedance: 50
OhmInterface: InterfacePackage
list: 1 x Switcher2 x Screw
