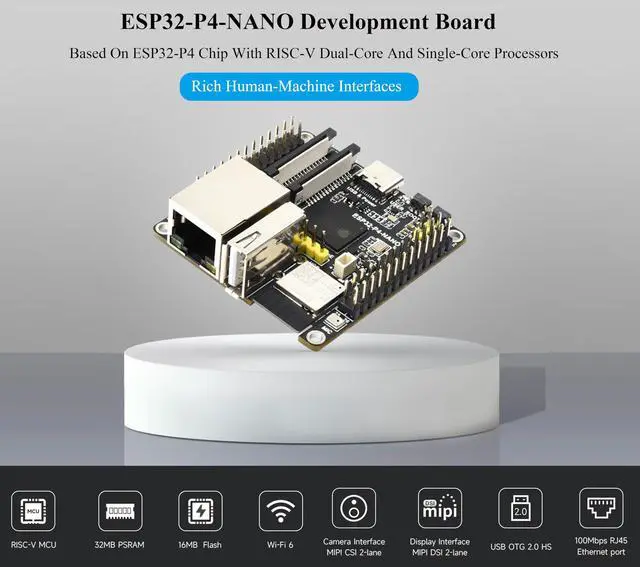

ESP32-P4-NANO Development Board, ESP32-P4 Chip with RISC-V Dual-core and Single-Core Processors, Wi-Fi 6 and Bluetooth 5/BLE, MIPI-CSI, DSI,USB 2.0 OTG, Microphone, etc. (with Speaker and PoE Module)

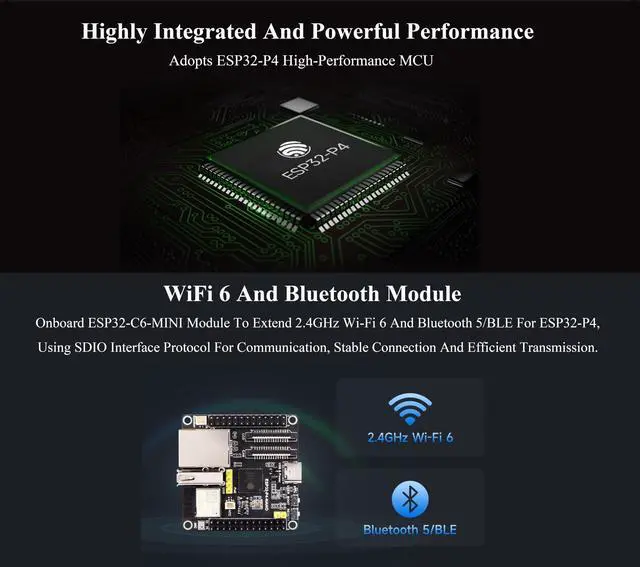

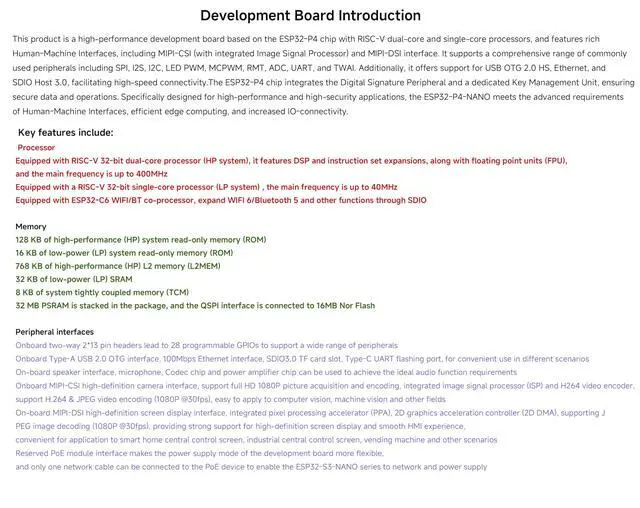

High-performance tri-core processor and Wi-Fi 6 connectivity--- Equipped with an ESP32-P4 dual-core RISC-V processor (360MHz clock speed) and a single-core low-power processor, and integrated with an ESP32-C6 coprocessor, providing powerful edge computing capabilities and stable Wi-Fi 6 and Bluetooth 5 connectivity. ^^ Integrated multimedia core supporting audio and video processing--- Onboard MIPI-CSI camera interface (supporting 1080P H. 264 encoding), MIPI-DSI display interface, integrated dedicated audio codec chip and power amplifier, and equipped with microphone, speaker, and headphone jacks, meeting the complete multimedia development needs of image acquisition, screen display, and audio processing.

^^ Hardware-level security protection + large memory configuration--- 32MB on-chip PSRAM + 16MB onboard Flash ensures smooth multitasking; secure boot, Flash encryption, hardware encryption engine, and access control management (APM) provide four layers of protection, offering chip-level reliable protection for applications with high compliance requirements such as financial terminals and medical devices. ^^ Wired and wireless dual-redundant network, supporting flexible PoE power supply--- In addition to high-speed Wi-Fi 6, a 100Mbps Ethernet interface is provided to ensure stable and reliable network connectivity; a PoE module interface is reserved, allowing simultaneous power supply and network connectivity via a single network cable, simplifying industrial field deployment.

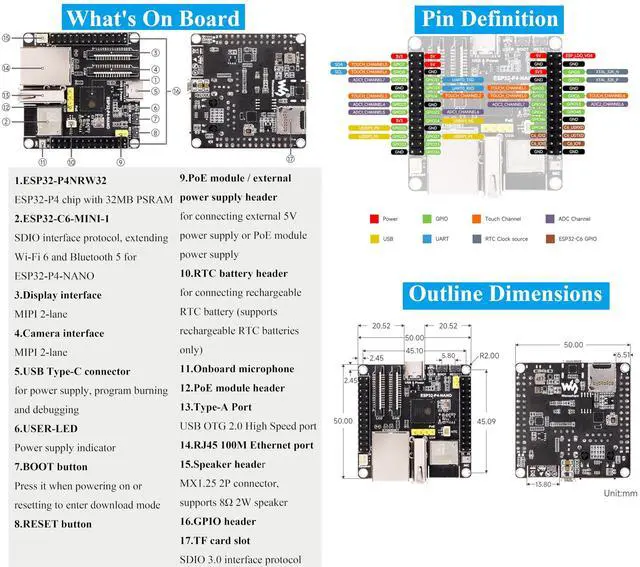

^^ High-security design--- The chip integrates a hardware encryption engine, secure boot, and key management unit to ensure data and communication security. Designed specifically for high-performance and high-security applications, it fully meets the higher demands of embedded applications for human-machine interface support, edge computing capabilities, and IO connectivity features. ^^ Rich human-machine interaction expansion interfaces--- It integrates 28 programmable GPIOs, and provides on-board interfaces for commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 SD card slot, microphone, speaker terminals, and RTC battery terminals, facilitating integration and expansion.

^^ We provide Online How-to-use Document/User
Manual for reference: bit. ly/4t7m79I
