EC Buying CNC Buck Adjustable Power Supply Module, Adjustable Buck Converter 50V 20A 1000W Voltage and Ammeter DC Voltage Regulator, LCD Display/DC Converter/DC CNC Power Supply/DC Converter Gray

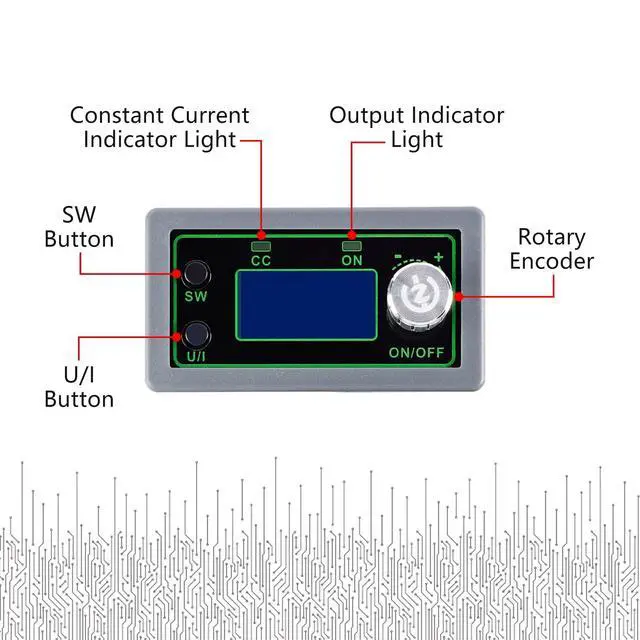

Product Highlights one: LCD can display input/output voltage, output current/output power/output capacity/output time; Digital control adjustment, accurate and fast, step-down output, output voltage 0- 50.00V can be adjusted arbitrarily, limited current 0- 20.00A can be adjusted arbitrarily; The output terminal will not burn when it is poured backward; The module can be set to be turned on/off by default; ^^
Product Highlights two: Has a variety of software protection mechanisms, and the protection threshold is adjustable. When the working parameters of the module exceed the protection threshold, the output will be automatically turned off; Using synchronous rectification technology, high

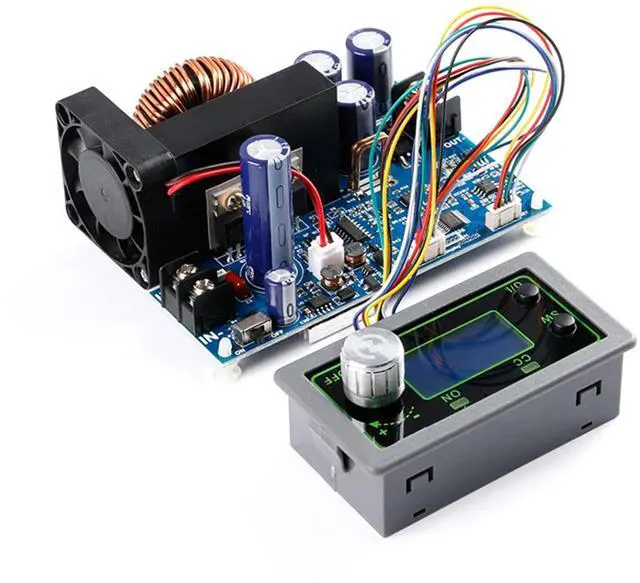

conversion efficiency: more than 90% efficiency; Enlarge the heat sink and install a fan to enhance heat dissipation.
^^ Soft start: There

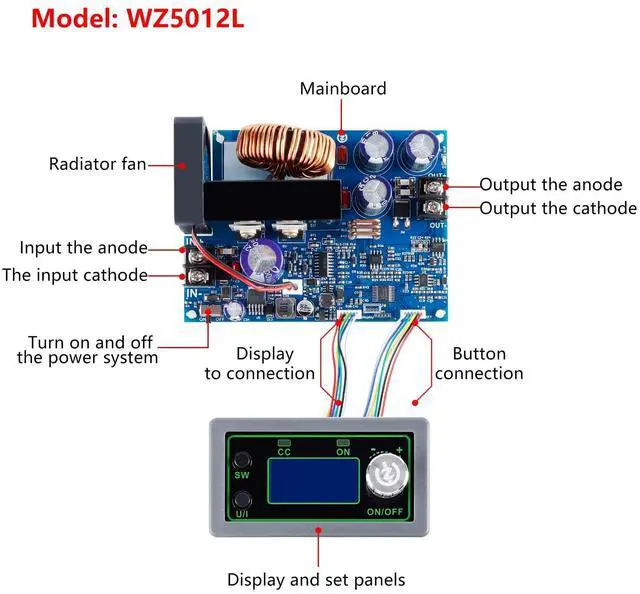

are protection mechanisms: Input under-voltage protection ( 5.8 -50V adjustable, default 5.8V ) Output overvoltage protection (0- 51.00V adjustable, default 51V) Output overcurrent protection (0- 20.00A adjustable, default 20.10A ) Timeout protection (0-100h adjustable, default off) Overcapacity protection (0- 999.9A h adjustable, default off) ^^ This product is a digitally controlled adjustable step-down module. The LCD can display parameters such as input, output voltage, output current, and power, and the output voltage and current can be adjusted arbitrarily. The module also has a variety of software protection mechanisms. When the parameter exceeds the protection reading value, the output will be automatically turned off, making the use more worry-free.
^^ Note: After the product triggers the protection mechanism, the output will automatically turn off, the LCD screen will display the protection code, and press any key to exit the protection interface
