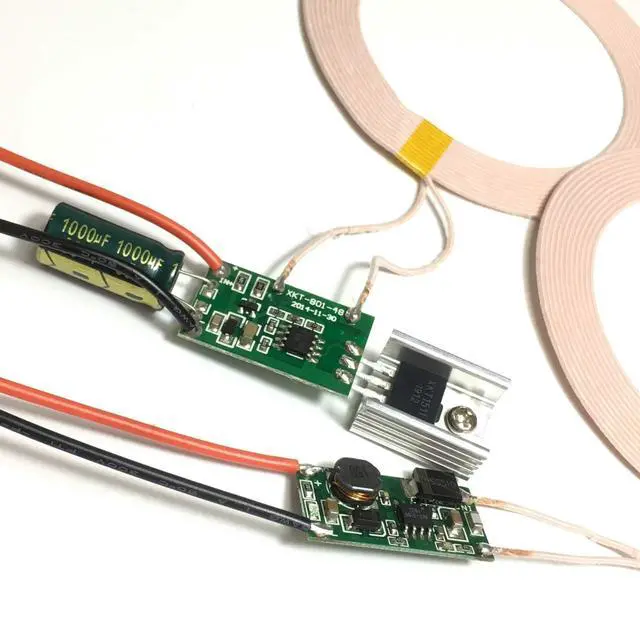

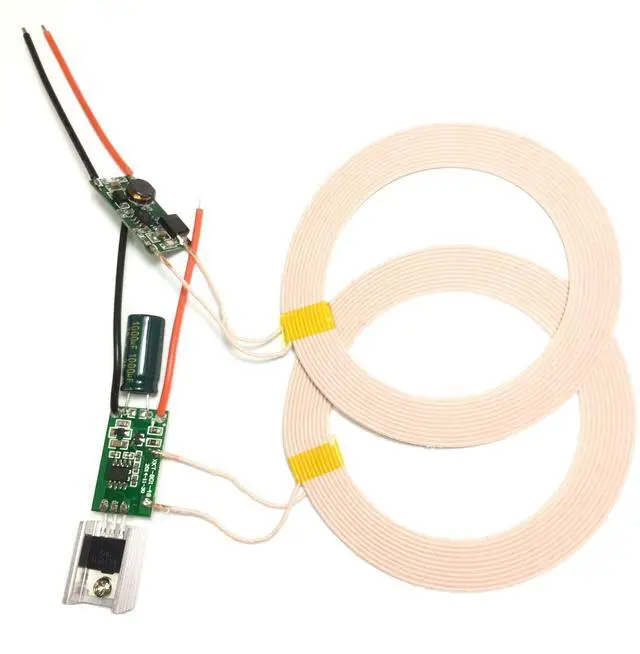

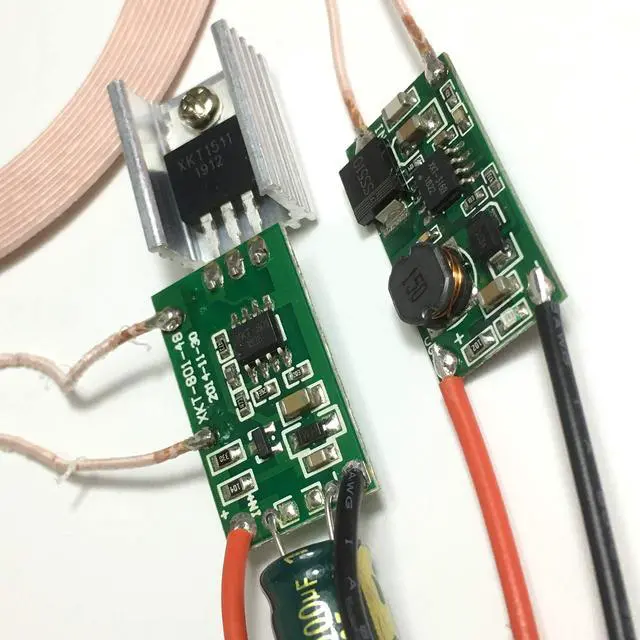

Taidacent 20mm to 80mm Long Distance 12V to 24V Input 5V 2A Output Wireless Power Supply Module Wireless Charging Coil Module Wireless Inductive Coil
- The transmission voltage is designed with a wide voltage: 12V~24V.
- Transmitter module size: 17*28mm; Transmitting coil: outer diameter 88mm.
- Receiver module size: 15mm*30mm; Receiver coil size: outer diameter 88mm.
- Sensing distance: Receive output 5V2A at 20mm; Receive output 5V100mA at 70mm.
- Note: The distance between the two coils need greater than 13mm!
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The transmission voltage is designed with a wide voltage: 12V~24VTransmitter
module size: 17*28mmTransmitting
coil: outer
diameter 88mmReceiver module size: 15mm*30mmReceiver
coil size: outer
diameter 88mmSensing distance: Receive output 5V100mA at 70mmReceive output 5V150mA at 60mmReceive output 5V250mA at 50mmReceive output 5V600mA at 40mmReceive output 5V900mA at 30mmReceive output 5V2A at 20mmReceive output 5V2A at 15mmNote: The distance between the two coils need greater than 13mm!
module size: 17*28mmTransmitting
coil: outer
diameter 88mmReceiver module size: 15mm*30mmReceiver
coil size: outer
diameter 88mmSensing distance: Receive output 5V100mA at 70mmReceive output 5V150mA at 60mmReceive output 5V250mA at 50mmReceive output 5V600mA at 40mmReceive output 5V900mA at 30mmReceive output 5V2A at 20mmReceive output 5V2A at 15mmNote: The distance between the two coils need greater than 13mm!
