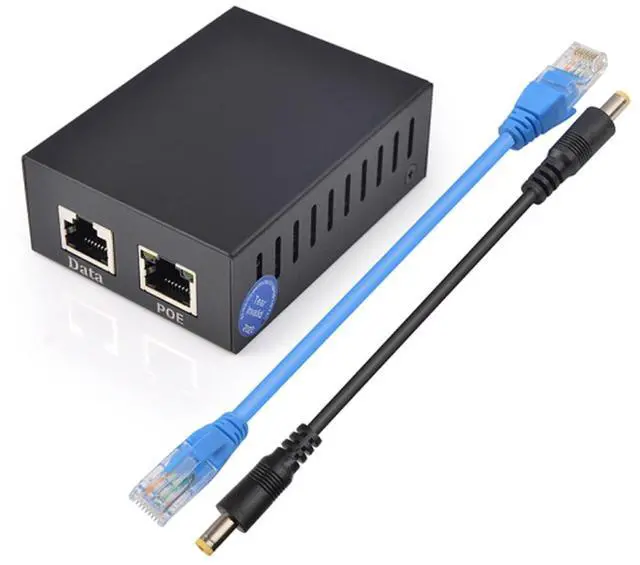

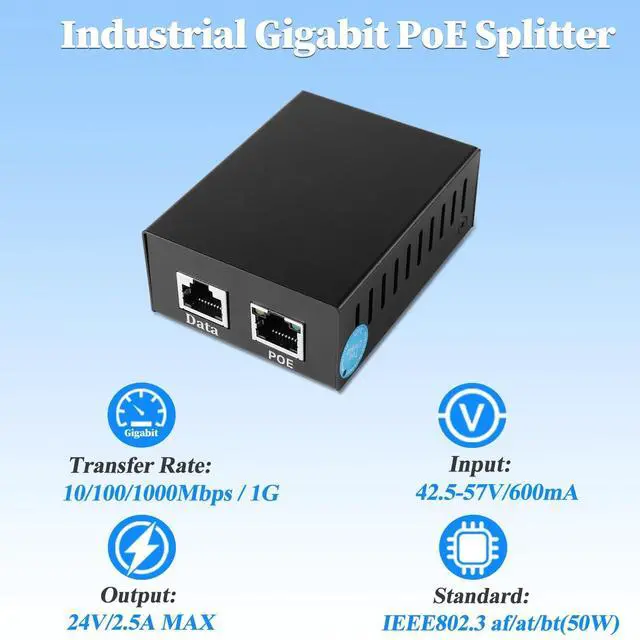

REVODATA Industrial Gigabit PoE Splitter, Output DC 24V, Comply IEEE802.3af/at/bt 50W, 10/100/1000Mbps Power Over Ethernet Splitter Adapter for IP Camera, Non-PoE terminals (PS2450G)

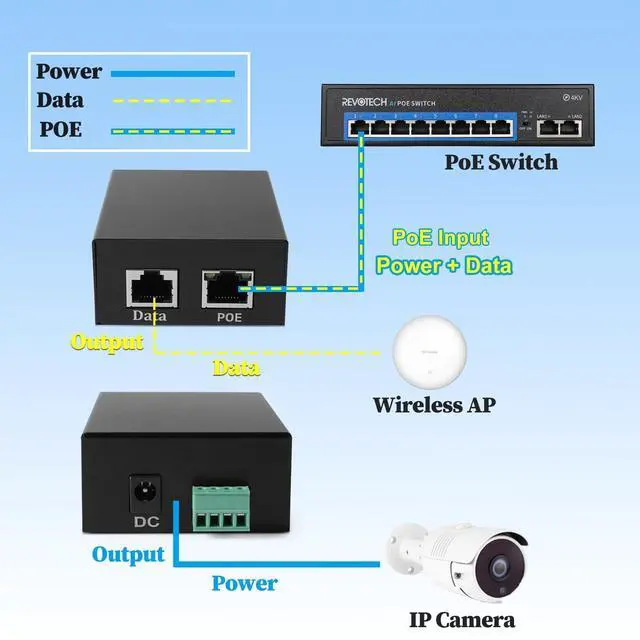

PoE splitter it is an economical and practical PoE remote power equipment base on IEEE 802.3 af/at/bt standard. It can separate the power and data via cable transmission. Proper matching use with poe switch or PSE injector which meet standard IEEE 802.3 af/at/bt, Provides power and data at the same time for the terminal device does not support PoE. PoE splitter, output voltage of 24V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

SpecificationsSupport international standard IEEE 802.3 af/at/bt (50W); Support 10/100/1000Mdata transmissionPD support 44V-57V voltage transmission, Automatically detects power supply from PSE power supply module24V power output, easy to access Poe network for non-poe terminalSupport the isolation circuit protection, can effectively protect electrical equipment. Support the short circuit, overvoltage
protectionModel: PS2450GTransfer
Rate:
10/100/1000MbpsPower: Input 42.5 -57V/600mA, Output 24V/ 2.5A MAX
Standard: IEEE 802.3 af/at/bt (50W)

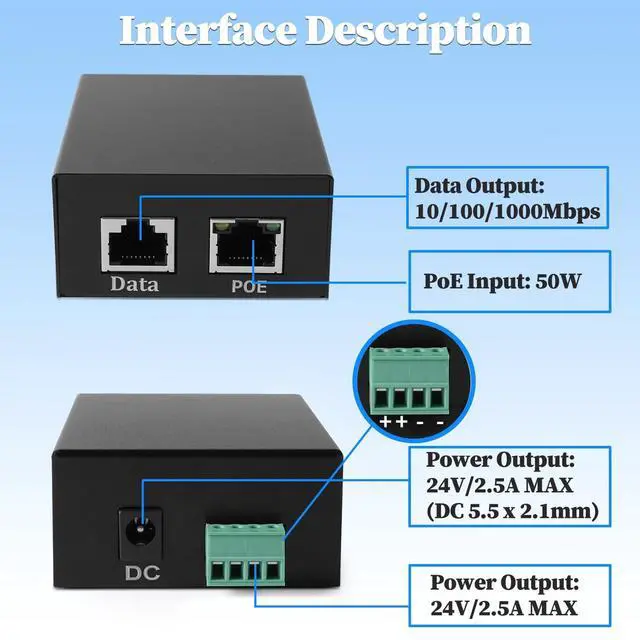

TRNF: 1/2(+), 3/6(-); 4/5(+), 7/8(-)Interface
Type: 1 Input RJ45 port, 1 output RJ45 port, 1
DC outputStandard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af IEEE 802.3 at
IEEE 802.3 btLED: Yellow
PoE lampTemperature: Work within -40~85,
Storage within -40~85Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)DC
Plug: 5.5

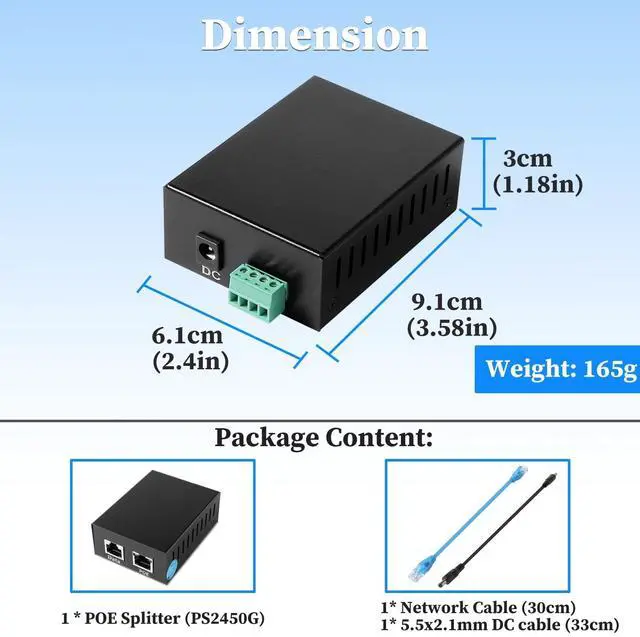

x 2.1 mmDimension: 9.1
x 6.1 x 3cmWeight: 165gPackage
Content: 1 * POE Splitter (PS2450G) 1* Network Cable (30cm) 1* 5.5 x 2.1 mm DC cable (33cm)
