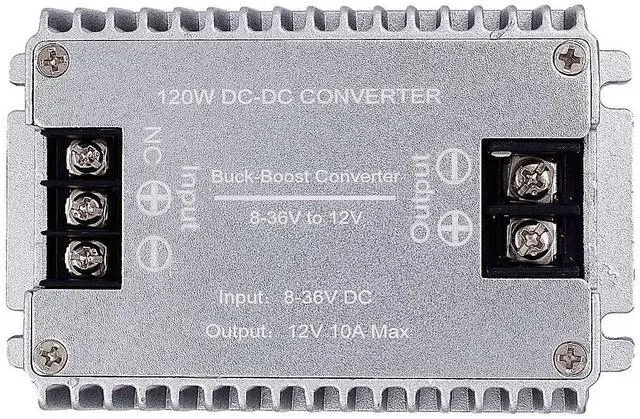

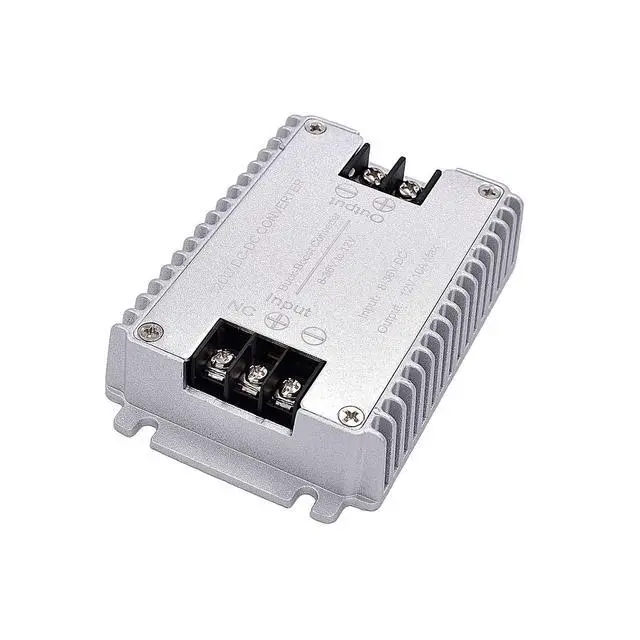

Valefod DC to DC High Efficiency Voltage Converter 8-36V to 12V 10A 120W Buck-Boost Converter DIY Power Supply Step-Down/Up Transformer
- Ultrathin DC-DC Buck-Boost ConverterIt adopts premium quality electronic components and waterproof (IP65) aluminum housing. Widely used for golf cart, club car, motor, speaker, GPS, car display screen, LED strip light, air-conditioner, electric fan, solar energy, DVD and other devices that requires DC 12V voltage.
- Input Voltage DC 8V to 36V. A stable DC power is recommended as the input power supply, and the rated voltage supply should be within the voltage range of 8V to 36V.
- Output VoltageDC 12V (Output Current: 10A). Please NOTE the output voltage/current/power is rated.
- Multiple ProtectionsBuilt-in over-temperature, over-current, over-voltage, output short- circuit protection to ensure your devices safely.
- Easy to DIYConnect INPUT terminals to power source, OUTPUT terminals to your load device. The wiring diagram is printed on the back of buck-boost converter. Please don't power on before completing the circuit and connection, do not reverse the input and output interfa
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: - DC-DC 8-36V down / up to 12V 10A 120W voltage transformer- High reliability and conversion efficiency, wide input voltage range- Die-cast aluminum shell for achieving natural heat dissipation, waterproof, dustproof and shockproof- Built-in over-temperature, over-current, over-voltage, output short- circuit protection- Auto-recovery when device is back to normal operating- Compact in structure, easy to installKindly
Note: 1. Input voltage should be within DC 8V to 36V2. Do not reverse the input and output interface3. Give preference to stable DC power as the input power supply, or filter it with capacitor If you use the pulsed DC power provided by the generatorSpecifications: -
Input Voltage: DC 12V / 24V-
Input Range: DC 8V - 36V-
Output Voltage: DC 12V-
Output Current: 10A- Output
Rated Power: 120W-
Conversion Efficiency: > 96.8 %-
No-load Loss: <100mA-
Ripple Wave: <100mV-
Operating Temperature: -40 to +80-
Load Regulation: <2%-
Voltage Regulation: <1%-
Waterproof Rate: IP65-
Housing Material: Die-cast aluminum-
Potting Material: Epoxy sealed- Size (L x W x

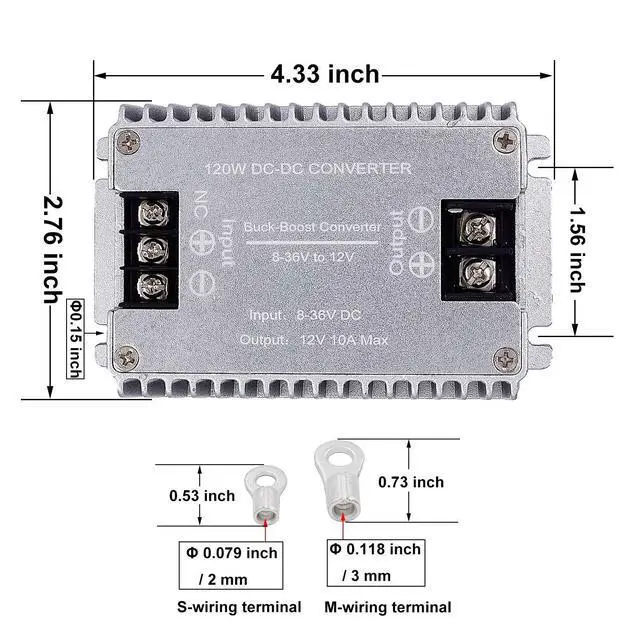

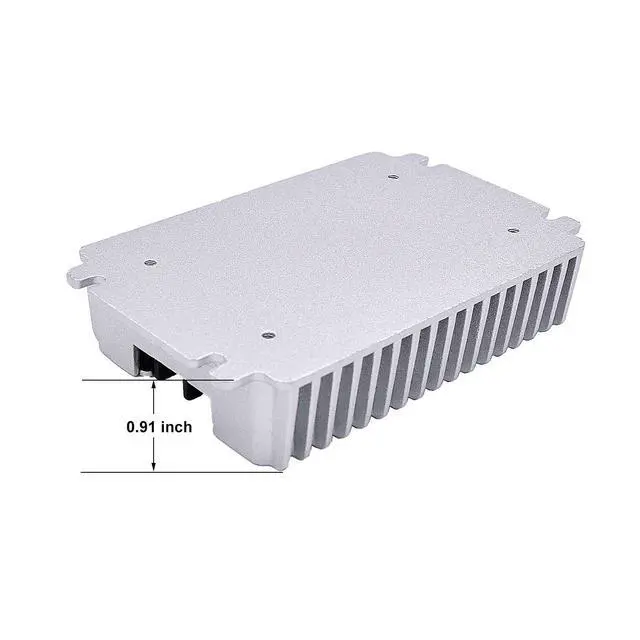

H): 110*70*23mm / 4.33 * 2.76 * 0.91 inch-
Net Weight: 260gPackage

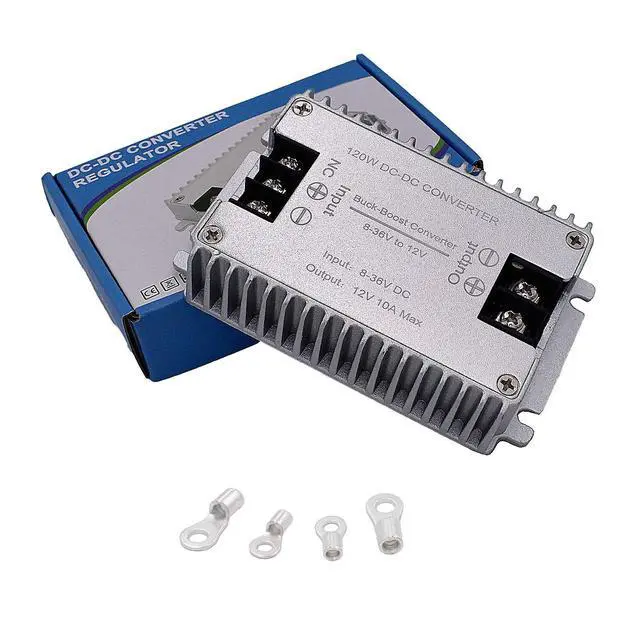

Includes: 1x DC to DC Buck-Boost Transformer4x M-threaded wiring terminals
Note: 1. Input voltage should be within DC 8V to 36V2. Do not reverse the input and output interface3. Give preference to stable DC power as the input power supply, or filter it with capacitor If you use the pulsed DC power provided by the generatorSpecifications: -
Input Voltage: DC 12V / 24V-
Input Range: DC 8V - 36V-
Output Voltage: DC 12V-
Output Current: 10A- Output
Rated Power: 120W-
Conversion Efficiency: > 96.8 %-
No-load Loss: <100mA-
Ripple Wave: <100mV-
Operating Temperature: -40 to +80-
Load Regulation: <2%-
Voltage Regulation: <1%-
Waterproof Rate: IP65-
Housing Material: Die-cast aluminum-
Potting Material: Epoxy sealed- Size (L x W x
H): 110*70*23mm / 4.33 * 2.76 * 0.91 inch-
Net Weight: 260gPackage
Includes: 1x DC to DC Buck-Boost Transformer4x M-threaded wiring terminals
