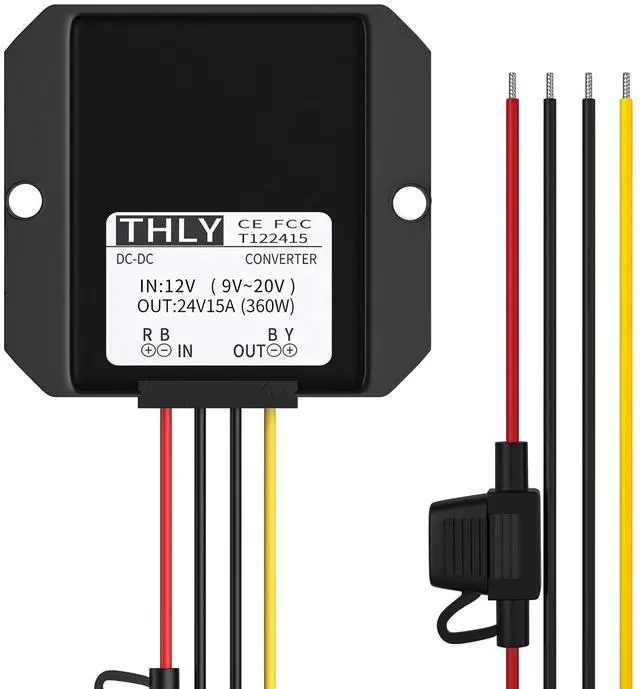

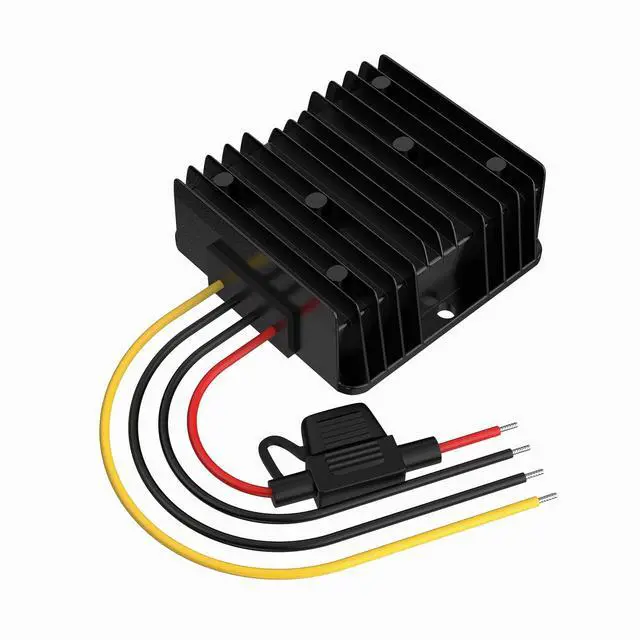

12v to 24v DC Step up Converter, Voltage Transformer 15A 360W Step up Converter with Fuse Waterproof Transformer 12v for Golf Cart LED Light Motor Truck Vehicle Boat etc.
- [Voltage Converter] This DC to DC step up converter 12V to 24V converts the DC 12V into DC 24V. Low power consumption. Voltage input: DC 9-20V, output: DC 24V. Max Current: 15A 360W. WARNING: 1.Please confirm whether the output voltage is correct before use; 2.Please confirm the positive and negative polarity of the power before wiring; 3.Must connect the input negative wire to GND or - before use, or the output volts will not change!

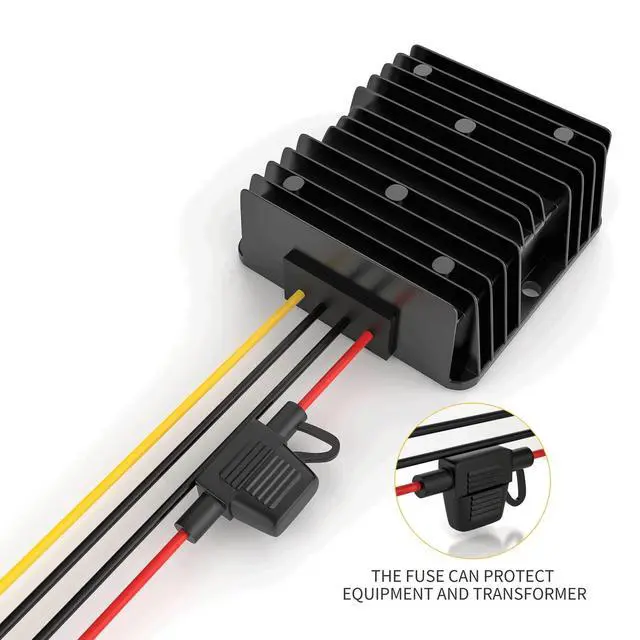

- [With Fuse & More Safer] For the safety of users, our dc boost converter are equipped with fuses. When the voltage is too high, the circuit breaks down or is abnormal, the fuse will blow and the transformer will stop working, thereby protecting the electrical appliances. In addition, this can reduce the risk of fire or explosion. High conversion rate over 96%, output correctly. High quality and performance more durable, longer service life.

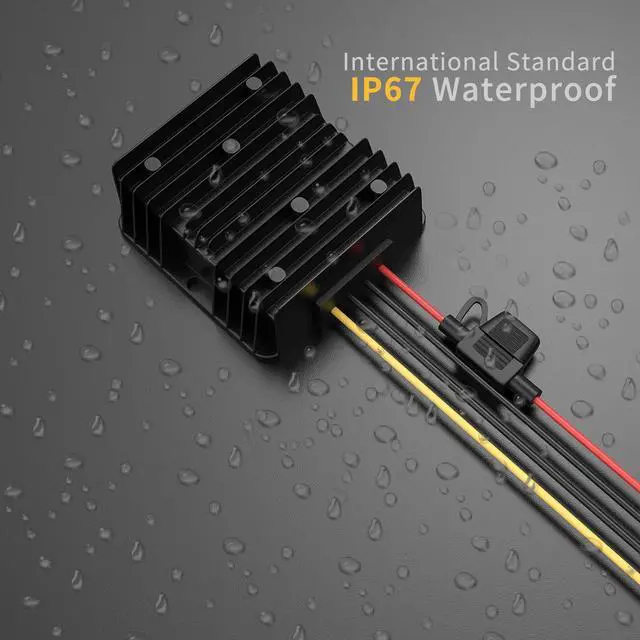

- [IP67 Waterproof Grade] This DC converter adopted heat conduction organic silica gel filling and sealing techn
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Boost Converter, DC Boost Converter 12V to 24V 15A 360W Step up Converter With FuseStep up Voltage Converter Safety Instructional Manual1. The load connected to the output end of the power regulator should not be more than max listed load power, any higher rated load will cause damage to the power regulator. 2. Can not used long time by the MAX. If your device's load is close to MAX power, please select a higher power converter. 3. Please connect the converter and your device according to the wiring diagram provided.
Features: -Fuse installed, protect electrical appliances and reduce the risk of fire and explosion. More security. -IP67 Protection grade, waterproof and anti-shock protection. -More than 96% power conversion efficiency. -Si-Fe Cores magnetic loop, high temperature resistance and super stability. DC DC DC Boost Converter
Material: Plastic, Electronic
PartsInput: DC
12V(9V - 20V)Output: DC
24V 15A 360WFuse: 20AConversion
Efficiency: More Than 96%Overtemperature
Protection: 150Waterproof
Grade: IP67Connection
Wire Length: 13cm( 5.1 inches)Body

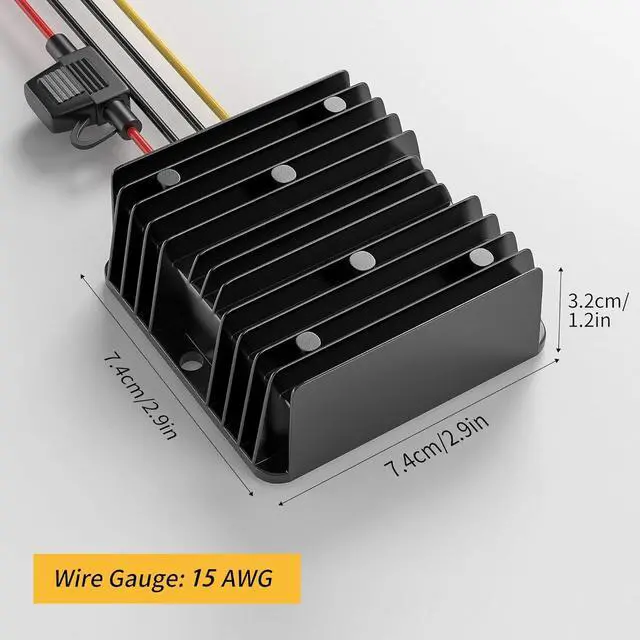

Size: 74mm x 74mm x 31mm (L*W*H)
Net Weight: 264gStep up
Transformer Connection:
Input: red(+)
black(-)Output: yellow(+)
black(-)Protection: input transient high voltage protection, output over-current protection, chip over-temperature protection. (please note that there is no input short circuit protection and reversed connection protection, please connect wires correctly, or the power may be burnt)Package
Includes: 1 x DC Boost Converter 12V to 24V 15A 360W
Features: -Fuse installed, protect electrical appliances and reduce the risk of fire and explosion. More security. -IP67 Protection grade, waterproof and anti-shock protection. -More than 96% power conversion efficiency. -Si-Fe Cores magnetic loop, high temperature resistance and super stability. DC DC DC Boost Converter
Specifications
:Material: Plastic, Electronic
PartsInput: DC
12V(9V - 20V)Output: DC
24V 15A 360WFuse: 20AConversion
Efficiency: More Than 96%Overtemperature
Protection: 150Waterproof
Grade: IP67Connection
Wire Length: 13cm( 5.1 inches)Body
Size: 74mm x 74mm x 31mm (L*W*H)
Net Weight: 264gStep up
Transformer Connection:
Input: red(+)
black(-)Output: yellow(+)
black(-)Protection: input transient high voltage protection, output over-current protection, chip over-temperature protection. (please note that there is no input short circuit protection and reversed connection protection, please connect wires correctly, or the power may be burnt)Package
Includes: 1 x DC Boost Converter 12V to 24V 15A 360W
