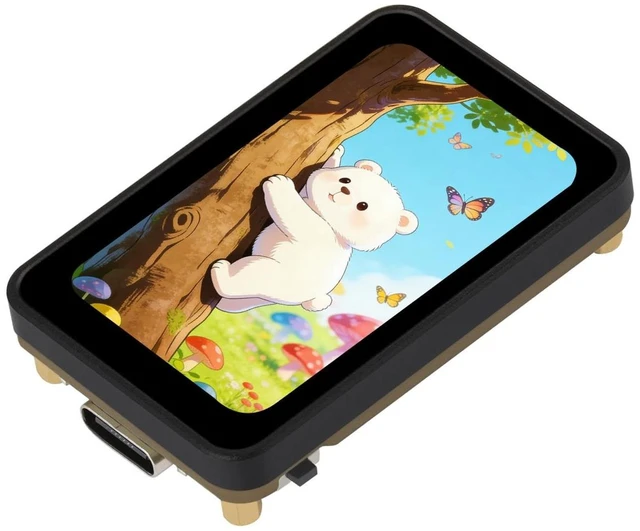

ESP32-C6 1.64inch AMOLED Touch Display Development Board Supports Wi-Fi 6, BLE 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread), Onboard 280 456 Pixels 16.7M Color Display, 6-Axis IMU, etc.

IntroductionESP32-C6-Touch-AMOLED- 1.64 is a low-cost, high-performance microcontroller development board. Onboard 1.64 inch AMOLED display, capable of smoothly running GUI programs such as LVGL. Onboard rich peripheral resources such as QMI8658 6-axis IMU, TF card slot, and Lithium Batt header, while also adapting USB, UART, I2C and multiple MUX_GPIO interfaces for strong expandability. It is ideal for the quick development of the HMI and other ESP32-C6 applications. FeaturesEquipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHzIntegrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.

4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance, onboard antenna, and supports switching to an external antenna by resoldering an onboard resistorBuilt-in 320KB ROM, 512KB HP Static RAM, 16KB LP Static RAM, with external 16MB FlashOnboard 1.64 inch AMOLED capacitive touch display, 280 456 resolution, 16.7M colorBuilt-in CO5300 display driver and FT6146 capacitive touch chip, using QSPI and I2C communication respectivelyOnboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)Onboard PWR buttonOnboard 3.7V MX 1.25 Lithium Batt recharge/discharge headerOnboard TF card slotOnboard USB Type-C port for power supply, program downloading, and debugging, making development more convenientAdapting I2C, UART and USB pins for connecting peripherals and debugging, enabling flexible configuration of peripheral functionsAdopts CNC-machined case with precision-wrapped edges for better protection, nice looking and more durablePackage
ContentESP32-C6-Touch-AMOLED- 1.64 x1Black pinheader x2Note: Online Dev Resources and Tutorials to help you easily get started. Please feel free to contact us with any questions
