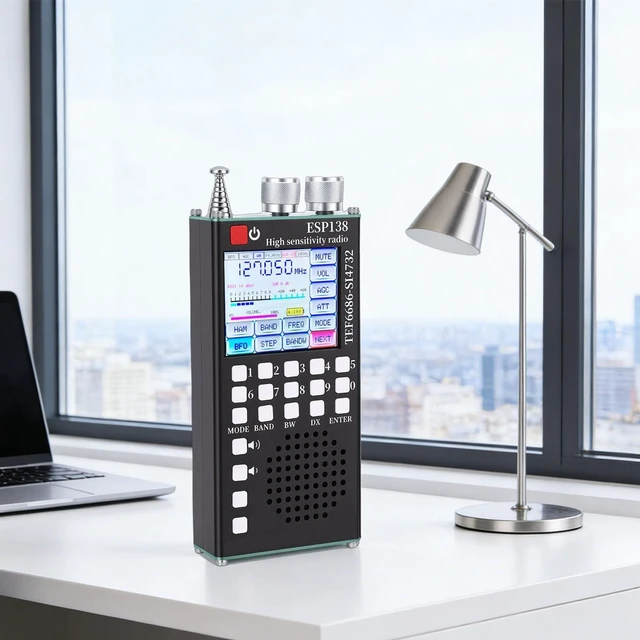

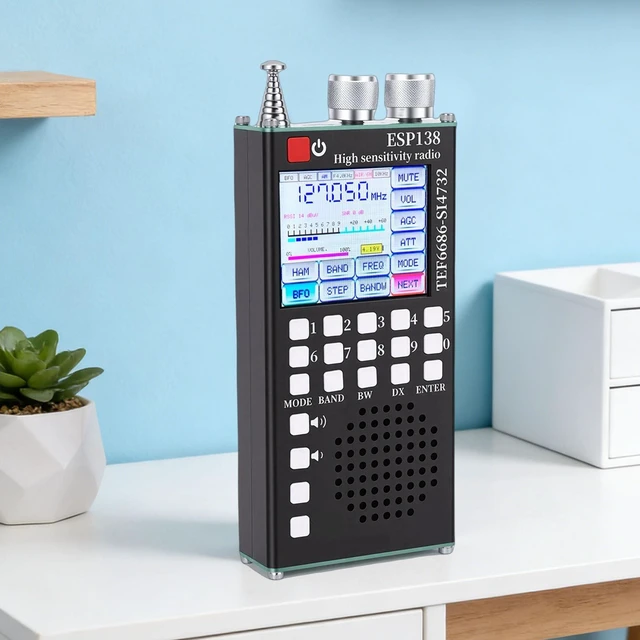

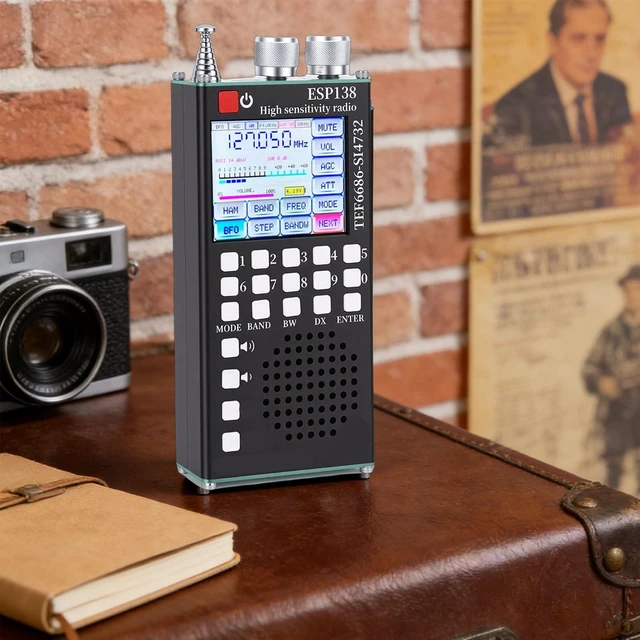

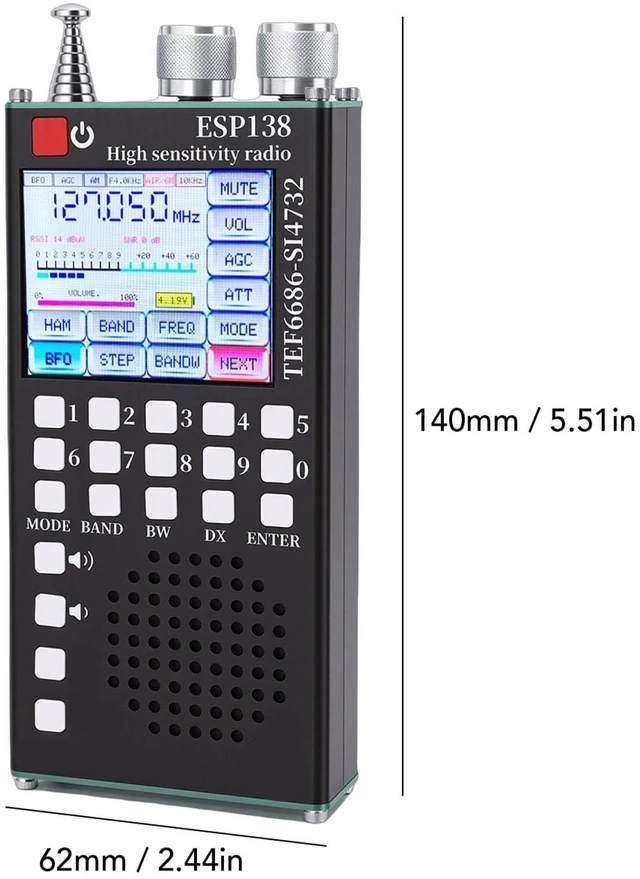

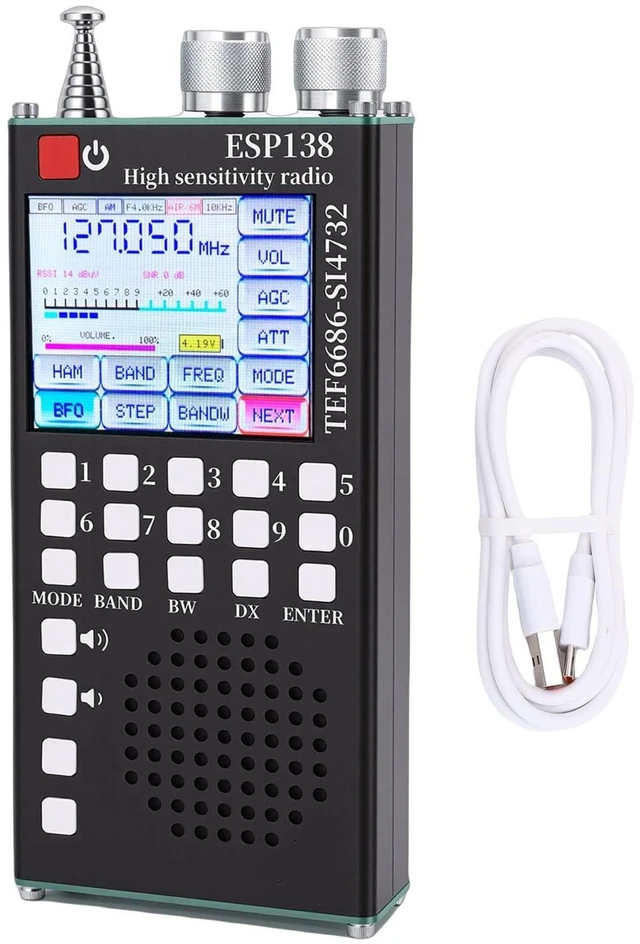

WALFRONT Handheld Full Band Radio DSP Noise Reduction Multiband World Band Receiver Dual Systems FM LW MW SW Radio
- Dual Systems: This radio adopts a dual architecture of support for TEF6686 system and support for ESP32-SI4732 system, operate independently, you can switch systems freely by clicking the power button.
- Support for SI4732 System: The radio supports FM, LW, MW, SW, AIR and SSB bands, covering the needs of HAM radio enthusiasts. Supports attenuation, AGC gain control, BANDW graded switching, single sideband fine tuning (BFO) and other functions.
- Support for TEF6686 System: The radio supports FM, LW, MW, SW bands, supports DSP noise reduction algorithms, full RDS data display, and specializes in HiFi broadcast reception.
- Professional Radio: This radio supports Bluetooth 5.0 dual mode, equipped with 2.4 inch touchscreen, numeric keypad, large capacity battery, and aluminum alloy body, balancing professional reception and portability.
- Long Range Antennas: This radio uses 40MM full range speaker for powerful bass and clear highs. Built in 820mm telescopic antennas, with 3.5mm exte
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Spec: Item
Type: Full
Band RadioMaterial: Alulminum
AlloyScreen: 2.4 Inch IPS Touchscreen (320x240)
External Antennas Interface: 3.5 mm
External Antennas InterfaceBattery: 1 x 2500mAh Li Battery (Built in)
Interface: Type C (2A Charging, Support
Data Upgrade)Speaker Size: Approx. 40mm / 1.57 inAntennas
Size: Approx.
820mm / 32.28 inApplication: Support for
ESP32-S14732 ModeFM:
64-108MHz/RDSLW:
153kHz-500kHzMW:
520kHz-1710kHzSW:
1730kHz-30000kHzSSB:
1730kHz-30000kHzAIR: 50M-200MHz
(AIR: 118-138MHz)Support for
ESP32TEF6686 ModeFM:
65-108MHz/RDSLW:
144kHz-513kHzMW:
520kHz-1720kHzSW: 1700kHz-27000kHzHow to
Use: Follow the instructions in the manual.
packing list: 1 x Full Band Radio1 x USB Cable1 x
User ManualNotice: 1. Support for TEF6686 mode supports open source firmware upgrade, while support for SI4732 system firmware is locked and prohibited from flashing.
2. When using touch screen under support for SI4732 system, physical number keys and menu keys will be disabled (Bluetooth/volume keys function normally).
Type: Full
Band RadioMaterial: Alulminum
AlloyScreen: 2.4 Inch IPS Touchscreen (320x240)
External Antennas Interface: 3.5 mm
External Antennas InterfaceBattery: 1 x 2500mAh Li Battery (Built in)
Interface: Type C (2A Charging, Support
Data Upgrade)Speaker Size: Approx. 40mm / 1.57 inAntennas
Size: Approx.
820mm / 32.28 inApplication: Support for
ESP32-S14732 ModeFM:
64-108MHz/RDSLW:
153kHz-500kHzMW:
520kHz-1710kHzSW:
1730kHz-30000kHzSSB:
1730kHz-30000kHzAIR: 50M-200MHz
(AIR: 118-138MHz)Support for
ESP32TEF6686 ModeFM:
65-108MHz/RDSLW:
144kHz-513kHzMW:
520kHz-1720kHzSW: 1700kHz-27000kHzHow to
Use: Follow the instructions in the manual.
packing list: 1 x Full Band Radio1 x USB Cable1 x
User ManualNotice: 1. Support for TEF6686 mode supports open source firmware upgrade, while support for SI4732 system firmware is locked and prohibited from flashing.
2. When using touch screen under support for SI4732 system, physical number keys and menu keys will be disabled (Bluetooth/volume keys function normally).
