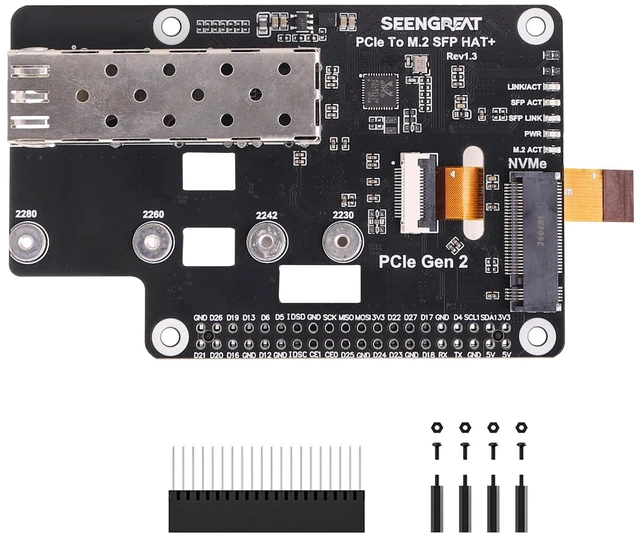

PCIe M.2 SFP HAT+ for Raspberry Pi 5, NVMe Adapter Board
- PCIe HAT+ Expansion Board for Raspberry Pi 5: PCIe to M.2 SFP HAT+ is designed for Raspberry Pi 5, using the PCIe interface to add both NVMe SSD storage expansion and Gigabit SFP fiber Ethernet capability in one compact HAT+ module.
- M.2 NVMe SSD Adapter for High-Speed Storage: This NVMe SSD Adapter Board supports M.2 NVMe SSDs in 2230, 2242, 2260 and 2280 sizes, making it suitable for system boot drives, data storage, lightweight NAS projects and edge computing applications.
- Gigabit SFP Fiber Ethernet Expansion: The onboard standard SFP port supports Gigabit fiber Ethernet connection when used with a compatible SFP optical module, helping users build long-distance wired network links and industrial communication projects.
- ASM1182e PCIe Expansion Solution: Equipped with ASM1182e PCIe expansion chip, this PCIe HAT+ board splits the single PCIe interface into two independent PCIe lanes for M.2 NVMe SSD and Gigabit Ethernet controller functions.
- HAT+ Standard with EEPROM a
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
OverviewThe PCIe To M. 2 SFP HAT+ is a multi-function PCIe expansion board designed for Raspberry Pi 5 development and embedded applications. It combines M. 2 NVMe SSD expansion and Gigabit SFP fiber Ethernetconnection in one compact HAT+ adapter board. Based on the ASM1182e PCIe expansion chip, this PCIe HAT+ module splits the PCIe interface of Pi 5 into two independent PCIe lanes. One lane is used for M. 2 NVMe SSD expansion, while the other lane connectsto the Gigabit Ethernet controller solution for SFP fiber network support. The M.
2 slot supports NVMe SSDs in 2230, 2242, 2260 and 2280 form factors. It can be used for system boot drives, project data storage, lightweight NAS applications, edge computing gateways, developmentservers and embedded storage expansion. For wired network expansion, the board adopts an RTL8111H + RTL8213B solution and provides a standard SFP port. With a compatible SFP optical module installed, users can build Gigabit fiber Ethernet links forlong-distance wired network transmission, industrial communication, lab testing and network development projects. The board follows the Pi HAT+ standard and includes an onboard EEPROM and 220Pin header, allowing Raspberry Pi 5 software and firmware to recognize the expansion board more easily.
Onboard LED indicatorshelp users check M. 2 activity, network status and board operation during setup and testing.
Please note: NVMe SSD and SFP optical module are not included. Please prepare a compatible M. 2 NVMe SSD and SFP module according to your project requirements.
Name: PCIe To M.
2 SFP HAT+Compatibility: for Raspberry Pi 5PCIe
Expansion Chip: ASM1182eSSD
Support: M.
2 NVMe 2230/2242/2260/2280Network Interface: Standard SFP portEthernet
Solution: RTL8111H +
RTL8213BHeader: 220Pin
HAT+ headerApplication: NVMe storage, Gigabit fiber Ethernet, NAS, edge computing, embedded developmentPackage Contents1. PCIe To M. 2 SFP HAT+(16P Flexible Flat Cable is pre-installed) x12. 2x20P Extended Pin Female Header x13. Nylon Screw Kit x1
2 slot supports NVMe SSDs in 2230, 2242, 2260 and 2280 form factors. It can be used for system boot drives, project data storage, lightweight NAS applications, edge computing gateways, developmentservers and embedded storage expansion. For wired network expansion, the board adopts an RTL8111H + RTL8213B solution and provides a standard SFP port. With a compatible SFP optical module installed, users can build Gigabit fiber Ethernet links forlong-distance wired network transmission, industrial communication, lab testing and network development projects. The board follows the Pi HAT+ standard and includes an onboard EEPROM and 220Pin header, allowing Raspberry Pi 5 software and firmware to recognize the expansion board more easily.
Onboard LED indicatorshelp users check M. 2 activity, network status and board operation during setup and testing.
Please note: NVMe SSD and SFP optical module are not included. Please prepare a compatible M. 2 NVMe SSD and SFP module according to your project requirements.
Specifications
: ProductName: PCIe To M.
2 SFP HAT+Compatibility: for Raspberry Pi 5PCIe
Expansion Chip: ASM1182eSSD
Support: M.
2 NVMe 2230/2242/2260/2280Network Interface: Standard SFP portEthernet
Solution: RTL8111H +
RTL8213BHeader: 220Pin
HAT+ headerApplication: NVMe storage, Gigabit fiber Ethernet, NAS, edge computing, embedded developmentPackage Contents1. PCIe To M. 2 SFP HAT+(16P Flexible Flat Cable is pre-installed) x12. 2x20P Extended Pin Female Header x13. Nylon Screw Kit x1
