Superbat CXP12 4-Channel DIN 1.0/2.3 Male Cable for Machine Vision, 10ft

Be the first to review this product...

HIGH-SPEED CXP12 PERFORMANCE: 10ft UVC-5TF-4C quad coaxial cable supports 12G CXP-12 (12.5 Gbps per lane) for high-frame-rate machine vision cameras, imaging systems, and frame grabber links
PRECISION DIN 1.0/2.3 CONNECTORS: Features 8x DIN 1.0/2.3 male connectors with 3" gold beryllium copper contacts, 75 ohm impedance, and low VSWR (1.35 max @ 06 GHz, 1.5 max @ 612 GHz)
SUPERIOR SHIELDING & INTEGRITY: Built with gas-injected foam HDPE dielectric, double-braided tinned copper shielding (90%+90% coverage), and numbered heat shrink tubing for easy channel tracking
INDUSTRIAL DRAG CHAIN DURABILITY: Rated for 2 million U-shaped drag chain flex cycles; oil resistant (EN 50290-2-22), VW-1 flame retardant, and operable in extreme temperatures from -40C to +80C

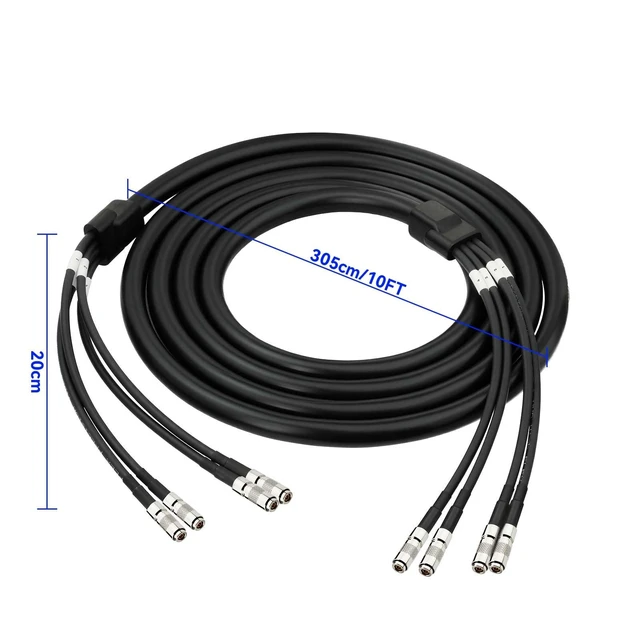

COMPLETE QUAD-CHANNEL SETUP: Includes 1x 305cm (10ft) CXP12 4-channel DIN 1.0/2.3 to DIN 1.0/2.3 male machine vision camera cable with 20cm end fan-outs. Fully RoHS compliant for industrial imaging

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

HIGH-SPEED CXP12 PERFORMANCE: 10ft UVC-5TF-4C quad coaxial cable supports 12G CXP-12 ( 12.5 Gbps per lane) for high-frame-rate machine vision cameras, imaging systems, and frame grabber links ^^ PRECISION DIN 1.0 / 2.3
CONNECTORS: Features 8x DIN 1.0 / 2.3 male connectors with 3" gold beryllium copper contacts, 75 ohm impedance, and low VSWR ( 1.35 max @ 06 GHz, 1.5 max @ 612 GHz) ^^
SUPERIOR SHIELDING & INTEGRITY: Built with gas-injected foam HDPE dielectric, double-braided tinned copper shielding (90%+90% coverage), and numbered heat shrink tubing for easy channel tracking ^^
INDUSTRIAL DRAG CHAIN DURABILITY: Rated for 2 million U-shaped drag chain flex cycles; oil resistant (EN 50290-2-22), VW-1 flame retardant, and operable in extreme temperatures from -40C to +80C ^^
COMPLETE QUAD-CHANNEL SETUP: Includes 1x 305cm (10ft) CXP12 4-channel DIN 1.0 / 2.3 to DIN 1.0 / 2.3 male machine vision camera cable with 20cm end fan-outs. Fully RoHS compliant for industrial imaging
